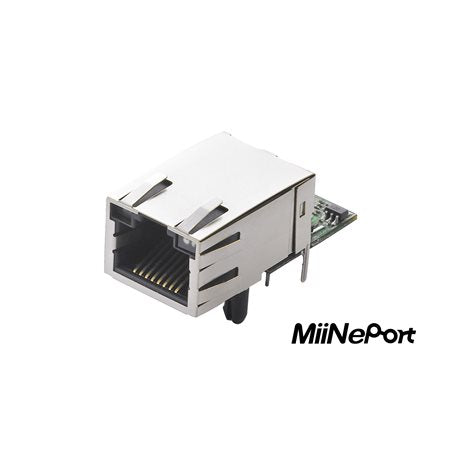

Moxa MiiNePort E1-ST (w/o Module) | MiiNePort E1 Serial Embedded Module Starter Kit, Without Module

Authorised Moxa Partner

SKU:MiiNePort E1-ST (w/o Module)

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MiiNePort E1-ST (w/o Module) is a serial embedded module starter kit for evaluating and developing with the MiiNePort E1 series of serial-to-Ethernet embedded modules. This variant is supplied without the embedded module, so it suits teams that already hold MiiNePort E1 modules or plan to purchase them separately for prototyping and application development.

The kit provides an evaluation board that supports a 1 x TTL serial port, with configurable data bits, stop bits, parity and flow control. It operates from a 3.3 VDC input and is designed for use with the MiiNePort E1 drop-in module form factor.

Features

- Evaluation board for assessing MiiNePort E1 modules
- Supports application development with MiiNePort E1 series modules
- Embedded module sold separately
- MiiNePort E1 series configuration options include Web Console, Windows Utility, Telnet and Serial Console

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Product type: Serial embedded module starter kit
- Module: Not included (without module)
- CPU: 32-bit Arm Core
- Serial ports: 1 x TTL
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, XON/XOFF
- Input voltage: 3.3 VDC
- Form factor: Drop-in module

FAQs

Q: Does the MiiNePort E1-ST (w/o Module) include the embedded module?
A: No. This starter kit is supplied without the MiiNePort E1 embedded module, which must be sourced separately.

Q: What is this starter kit used for?
A: It provides an evaluation board for testing MiiNePort E1 serial-to-Ethernet modules and developing applications around them.

Q: What serial interface does it support?
A: It provides 1 x TTL serial port with selectable data bits (5 to 8), stop bits (1, 1.5, 2), parity options and flow control (None, RTS/CTS, XON/XOFF).

Q: What input voltage does the kit require?
A: The kit operates from a 3.3 VDC input.

Q: How are MiiNePort E1 modules configured?
A: The MiiNePort E1 series supports configuration through Web Console, Windows Utility, Telnet and Serial Console.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
