Moxa MiiNePort E1-ST | MiiNePort E1 Starter Kit, Embedded Serial Server, 10/100

Authorised Moxa Partner

SKU:MiiNePort E1-ST

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

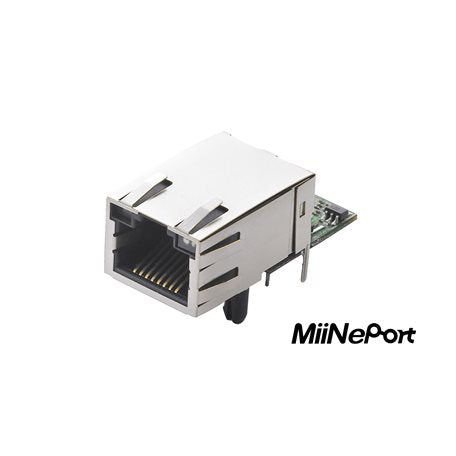

The MiiNePort E1-ST is a starter kit for the MiiNePort E1 Series embedded serial device server, supplied with the module and an evaluation board. It lets developers prototype adding 10/100 Mbps Ethernet connectivity to a TTL serial device before committing to a production design. The evaluation board measures 140 x 100 mm and breaks out the module's 10/100BaseT(X) RJ45 port and TTL serial port for bench testing.

The module is built on a 32-bit Arm core with 2 MB flash and 4 MB SDRAM, and supports Real COM, RFC2217, TCP Client, TCP Server and UDP operation modes. Moxa's NetEZ functions (ExTrigger, Serial Command Mode, AutoCFG and Multi-Channel Serial Communication) simplify integration, and configuration is available through a web console, Windows utility, Telnet or serial console.

Features

- Starter kit includes the module and evaluation board for prototyping
- NetEZ technology (ExTrigger, SCM, AutoCFG, MCSC) simplifies integration
- Built on Moxa's second-generation MiiNe SoC with a 32-bit Arm 7 core
- Operation modes include Real COM, RFC2217, TCP Client, TCP Server and UDP
- Windows Real COM, Linux Real TTY and fixed TTY drivers, plus an Android API
- Configuration via web console, Windows utility, Telnet or serial console
- Management support includes SNMPv1, DHCP, BOOTP, ARP and Device Search Utility

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x 10/100BaseT(X) port, 8-pin RJ45, auto MDI/MDI-X
- 1.5 kV built-in magnetic isolation protection
- 1 x TTL serial port, 50 bps to 921.6 kbps
- Serial signals: TxD, RxD, RTS, CTS, RST, GND
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, XON/XOFF
- 32-bit Arm core, 2 MB flash, 4 MB SDRAM
- 1 configurable DIO channel (1 DI / 1 DO)
- Input voltage: 3.3 VDC
- Evaluation board dimensions: 140 x 100 mm
- Operating temperature: 0 to 55°C
- Storage temperature: -40 to 60°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class B
- RoHS, CRoHS, WEEE compliant
- MTBF: 5,515,294 hrs (Telcordia SR-332)

FAQs

Q: What is included in the MiiNePort E1-ST starter kit?
A: The kit includes the MiiNePort E1 module and an evaluation board (140 x 100 mm) for prototyping Ethernet connectivity on a TTL serial device.

Q: What serial interface does the MiiNePort E1-ST support?
A: It provides one TTL serial port supporting baud rates from 50 bps to 921.6 kbps, with TxD, RxD, RTS, CTS, RST and GND signals.

Q: What operation modes are available?
A: Real COM, RFC2217, TCP Client, TCP Server and UDP modes are supported.

Q: Which operating systems and drivers are supported?
A: Windows Real COM, Linux Real TTY and fixed TTY drivers are available, along with an Android API.

Q: How is the module configured?
A: Configuration is available via a web console (HTTP), Windows utility, Telnet console or serial console.

Q: What input voltage does the module require?
A: The module runs from a 3.3 VDC input.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
