Moxa MiiNePort E1 | Embedded Device Server, TTL, 10/100, 0-55°C

Authorised Moxa Partner

SKU:MiiNePort E1

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

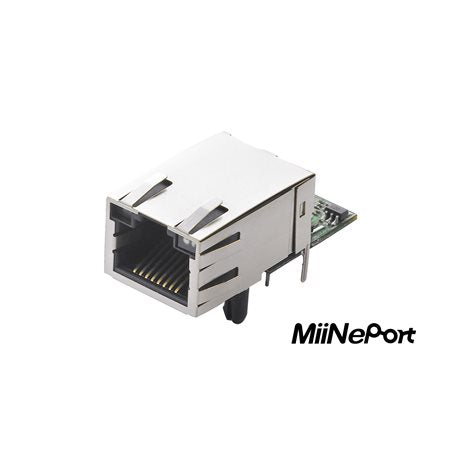

The Moxa MiiNePort E1 is an embedded device server module that adds 10/100 Mbps Ethernet connectivity to a single TTL serial device. This standard-speed model supports serial baudrates from 50 bps to 230.4 kbps, operates from 0 to 55°C and is supplied as the module only, without an evaluation board or SDK. It suits OEMs and system integrators who need to network-enable serial equipment inside a compact design.

Built on Moxa's second-generation MiiNe SoC, the drop-in module is roughly the size of an RJ45 connector and draws very little power at 3.3 VDC. NetEZ technology simplifies integration, and operation modes including Real COM, RFC2217, TCP Client, TCP Server and UDP allow it to fit into a wide range of host software environments, with drivers available for Windows, Linux, fixed TTY and Android.

Features

- Very small drop-in module, about the size of an RJ45 connector
- Extremely low power consumption
- Built on Moxa's second-generation MiiNe SoC
- NetEZ technology (ExTrigger, SCM, AutoCFG, MCSC) simplifies integration
- Operation modes: Real COM, RFC2217, TCP Client, TCP Server and UDP
- Drivers for Windows, Linux Real TTY, fixed TTY (UNIX/QNX and others) and Android
- Configuration via Web Console, Windows Utility, Telnet Console or Serial Console

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x TTL serial port
- 1 x 10/100BaseT(X) RJ45 port, auto MDI/MDI-X
- Serial baudrate 50 bps to 230.4 kbps
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, XON/XOFF
- Serial signals (TTL): TxD, RxD, RTS, CTS, RST, GND
- 32-bit Arm core, 2 MB Flash, 4 MB SDRAM
- 1 configurable DIO channel (1 digital input, 1 digital output)
- 1.5 kV built-in magnetic isolation protection
- Input voltage 3.3 VDC, 160 mA maximum
- Operating temperature 0 to 55°C
- Storage temperature -40 to 60°C
- Humidity 5 to 95% (non-condensing)
- Dimensions 33.9 x 16.25 x 13.5 mm, weight 9 g
- MTBF 5,515,294 hrs (Telcordia SR332)
- Certifications: EN 55032/35, CISPR 32, FCC Part 15B Class B, RoHS, CRoHS, WEEE

FAQs

Q: What type of serial interface does the MiiNePort E1 use?
A: It provides one TTL-level serial port with TxD, RxD, RTS, CTS, RST and GND signals, intended for direct connection to a TTL serial device or host board.

Q: What is the supply voltage and current draw?
A: The module runs from 3.3 VDC and draws a maximum of 160 mA.

Q: Does this SKU include an evaluation board or SDK?
A: No. This SKU is the MiiNePort E1 module only, without an evaluation board or SDK.

Q: What operation modes are supported?
A: Real COM, RFC2217, TCP Client, TCP Server and UDP modes are supported.

Q: What operating systems and drivers are supported?
A: Moxa provides Real COM drivers for Windows, Linux Real TTY drivers for kernel versions 2.4.x, 2.6.x, 3.x, 4.x and 5.x, fixed TTY drivers for several UNIX and QNX platforms, and an Android API for Android 3.1.x and later.

Q: What is the operating temperature range of this model?
A: This standard model operates from 0 to 55°C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
