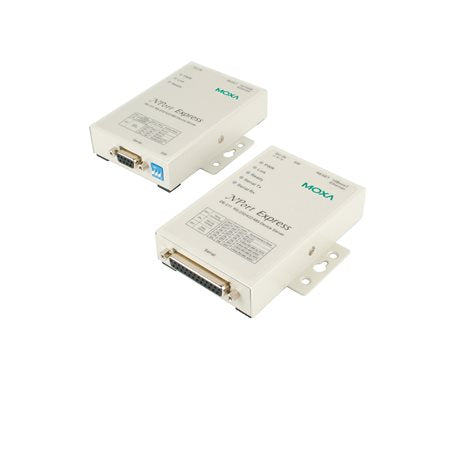

• Two beige Moxa NPort Express serial converters with labeled ports and brackets
1 1

Moxa

Moxa DE-311 | NPort Express 1-Port RS-232/422/485 Serial Device Server

Moxa DE-311 | NPort Express 1-Port RS-232/422/485 Serial Device Server

Authorised Moxa Partner

DE-311

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa DE-311 is a 1-port RS-232/422/485 serial device server that connects serial devices to a 10/100 Mbps Ethernet network. Part of the NPort Express Series, it suits entry-level industrial connectivity, with a software-selectable 3-in-1 DB9 female serial port, a metal housing and a 9 to 30 VDC power input.

Operating modes include TCP Server, TCP Client, UDP, Ethernet Modem and Pair Connection, with Real COM/TTY drivers for Windows and Linux. It is well suited to linking information display boards, PLCs, flow and gas meters, CNC machines and biometric ID card readers to an IP network, and it can be configured through a Windows utility, Telnet console or serial console.

Features

- 3-in-1 serial port: RS-232, RS-422 or RS-485
- Operation modes: TCP Server, TCP Client, UDP, Ethernet Modem, Pair Connection
- Real COM/TTY drivers for Windows and Linux
- 2-wire RS-485 with Automatic Data Direction Control (ADDC)
- Built-in buzzer and real-time clock (RTC)
- Suited to information display boards, PLCs, flow and gas meters, CNC machines and biometric ID card readers

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x 10/100BaseT(X) Ethernet port (RJ45), auto MDI/MDI-X
- 1.5 kV built-in magnetic isolation protection
- 1 x RS-232/422/485 serial port (3-in-1), DB9 female
- Serial data bits: 5, 6, 7, 8
- Serial stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, XON/XOFF
- Input voltage: 9 to 30 VDC
- Input current: 300 mA @ 9 VDC, 150 mA @ 24 VDC
- Metal housing
- Operating temperature: 0 to 55°C (32 to 131°F)
- Storage temperature: -40 to 75°C (-40 to 167°F)
- Operating humidity: 5 to 95% (non-condensing)
- Weight: 480 g (1.06 lb)
- MTBF: 225,529 hrs
- Configuration: Windows Utility, Telnet Console, Serial Console
- Protocols: ARP, BOOTP, DHCP Client, IPv4, TCP/IP, Telnet, UDP, ICMP
- Certifications: cULus, CE, FCC, EN 60601-1-2 Class B, EN 55011

FAQs

Q: What serial interfaces does the Moxa DE-311 support?
A: It has one DB9 female serial port that supports RS-232, RS-422 and RS-485, so a single unit covers all three interface types.

Q: What power input does the DE-311 require?
A: It accepts 9 to 30 VDC. Input current is 300 mA at 9 VDC and 150 mA at 24 VDC.

Q: Which operating systems are supported by the Real COM drivers?
A: Real COM/TTY drivers are available for Windows and Linux, letting existing serial software communicate with the device over Ethernet.

Q: Which operation modes can the DE-311 run in?
A: It supports TCP Server, TCP Client, UDP, Ethernet Modem and Pair Connection modes.

Q: How is the DE-311 configured?
A: It can be configured with the Windows utility, a Telnet console or a serial console.

Q: What types of devices can I connect with the DE-311?
A: Typical uses include PLCs, information display boards, flow and gas meters, CNC machines and biometric ID card readers.
