Moxa CP-168EL-A w/o Cable | CP-168EL-A 8-Port RS-232 PCIe x1 Serial Board, Low-Profile, w/o Cable

Authorised Moxa Partner

SKU:CP-168EL-A w/o Cable

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

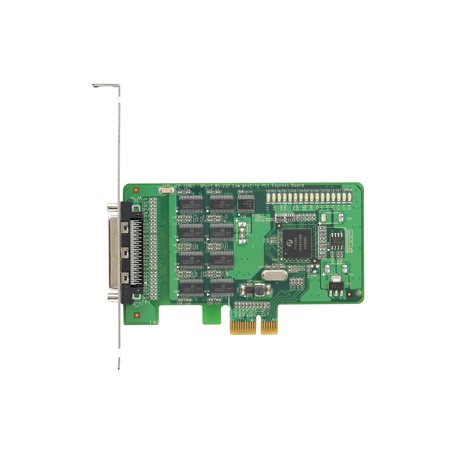

The Moxa CP-168EL-A w/o Cable is an 8-port RS-232 low-profile PCI Express x1 serial board for POS terminals, ATMs and industrial PCs that need reliable multiport serial connectivity. It supports baudrates up to 921.6 kbps and runs from a 3.3 VDC supply, so it suits everything from small-form-factor systems to standard PCs. This w/o Cable variant ships without connection cables or boxes, so you can choose the cabling that matches your RS-232 devices.

Each port provides full RS-232 signalling with hardware and software flow control, and the board includes both standard and low-profile brackets. Built-in Tx/Rx LEDs for every port make it easy to check serial activity during commissioning. Drivers are available for Windows, Linux and UNIX, and up to 8 boards can be installed in a single PC.

Features

- PCI Express 1.0 compliant
- 921.6 kbps maximum baudrate for fast data transmission
- 128-byte FIFO and on-chip hardware and software flow control
- Variety of connection cables and boxes available for RS-232/422/485
- Low-profile form factor fits small-sized PCs
- Includes board, standard and low-profile brackets, documentation and software CD, and printed quick installation guide

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x RS-232 ports
- Bus: PCI Express 1.0 (x1), low-profile form factor
- Connector: VHDCI 68 (connection cables and boxes sold separately)
- Baudrate: 50 bps to 921.6 kbps (non-standard baudrates supported)
- Communication controller: 16C550C compatible, 128-byte FIFO
- Flow control: None, RTS/CTS, XON/XOFF
- Data bits 5/6/7/8; stop bits 1/1.5/2; parity None/Even/Odd/Space/Mark
- Serial signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Input current: 1,225 mA @ 3.3 VDC
- Dimensions: 64.42 x 102 mm (2.54 x 4.02 in)
- Built-in Tx/Rx LEDs for each port
- Maximum 8 boards per PC
- Operating temperature: 0 to 55°C (32 to 131°F)
- Storage temperature: -20 to 85°C (-4 to 185°F)
- Drivers: Windows, Linux (kernel 2.4.x to 5.x), UNIX (Solaris 10, UnixWare 7, SCO OpenServer 5/6)

FAQs

Q: Does the CP-168EL-A w/o Cable include connection cables?
A: No. This variant ships without cables or connection boxes. The board uses a VHDCI 68 connector, and a range of Moxa cables and boxes is available separately for RS-232/422/485 connections.

Q: What PCI Express slot does this board need?
A: It is a PCI Express 1.0 x1 board in a low-profile form factor. Both standard and low-profile brackets are included, so it fits small-form-factor and standard PCs.

Q: What is the maximum baudrate?
A: Each port supports baudrates from 50 bps up to 921.6 kbps, and non-standard baudrates are supported.

Q: Which operating systems are supported?
A: Drivers are available for Windows, Linux (kernel 2.4.x to 5.x) and UNIX (Solaris 10, UnixWare 7, SCO OpenServer 5 and 6).

Q: Can I install more than one board in a PC?
A: Yes. Up to 8 boards can be installed in a single PC.

Q: What operating temperature range does it support?
A: The board operates from 0 to 55°C (32 to 131°F).

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
