Moxa CP-138U-I-T | CP-138U Universal PCI Serial Board, 8-Port RS-422/485, 2kV

Authorised Moxa Partner

SKU:CP-138U-I-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

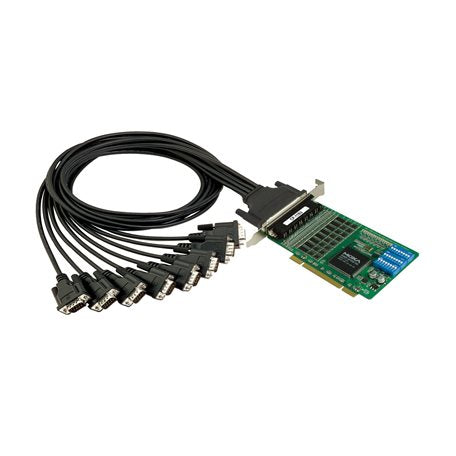

The Moxa CP-138U-I-T is an 8-port RS-422/485 Universal PCI serial board with 2 kV optical isolation, built for POS, ATM and industrial multi-drop applications. This wide-temperature model operates from -40 to 85°C and fits both 3.3 V and 5 V PCI and PCI-X slots, making it suited to harsh environments where standard serial cards fall short.

Each port supports baudrates from 50 bps to 921.6 kbps, backed by a 128-byte FIFO and on-chip hardware and software flow control for dependable data throughput. Drivers are available for Windows, Linux and several UNIX variants including QNX 6, SCO OpenServer, UnixWare 7, Solaris 10 and FreeBSD, and up to 8 boards can be installed in a single PC.

Features

- 2 kV optical isolation protects the host PC from electrical surges and ground loops
- Wide operating temperature range of -40 to 85°C for harsh environments
- Over 700 kbps data throughput with 921.6 kbps maximum baudrate
- 128-byte FIFO with on-chip hardware and software flow control
- Compatible with 3.3/5 V PCI and PCI-X slots
- Drivers for Windows, Linux, UNIX (QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD)
- Built-in Tx/Rx LEDs for each port simplify troubleshooting
- 15 kV on-board ESD protection

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x RS-422/485 serial ports
- 32-bit Universal PCI bus (3.3/5 V PCI and PCI-X compatible)
- Connector: DB78 female
- Baudrate: 50 bps to 921.6 kbps
- 128-byte FIFO
- Communication controller: MU860 (16C550C compatible)
- Isolation: 2 kV
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, XON/XOFF
- Input current: 135 mA @ 5 VDC
- Dimensions: 82 x 135 mm (3.22 x 5.31 in)
- Operating temperature: -40 to 85°C
- Storage temperature: -40 to 85°C
- Humidity: 5 to 95% non-condensing
- MTBF: 1,147,210 hrs (Telcordia SR332)
- Maximum 8 boards per PC
- Compliance: RoHS, CRoHS, WEEE

FAQs

Q: Which PCI slots is the CP-138U-I-T compatible with?
A: It is a 32-bit Universal PCI board that works in both 3.3 V and 5 V PCI and PCI-X slots.

Q: What serial interfaces does this board support?
A: It provides 8 ports supporting RS-422 and RS-485, using a DB78 female connector.

Q: What does the -T suffix mean?
A: The -T denotes the wide-temperature model, rated for operation from -40 to 85°C.

Q: Does the board provide electrical isolation?
A: Yes, it provides 2 kV optical isolation on the serial ports, along with 15 kV on-board ESD protection.

Q: Which operating systems are supported?
A: Drivers are available for Windows, Linux and UNIX variants including QNX 6, SCO OpenServer, UnixWare 7, Solaris 10 and FreeBSD.

Q: How many boards can be installed in one PC?
A: Up to 8 boards can be installed in a single PC.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
