Moxa CP-134EL-A-I-DB9M | CP-134EL-A-I 4-Port RS-422/485 PCIe Serial Board, DB9 Male

Moxa CP-134EL-A-I-DB9M | CP-134EL-A-I 4-Port RS-422/485 PCIe Serial Board, DB9 Male

Authorised Moxa Partner

CP-134EL-A-I-DB9M

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

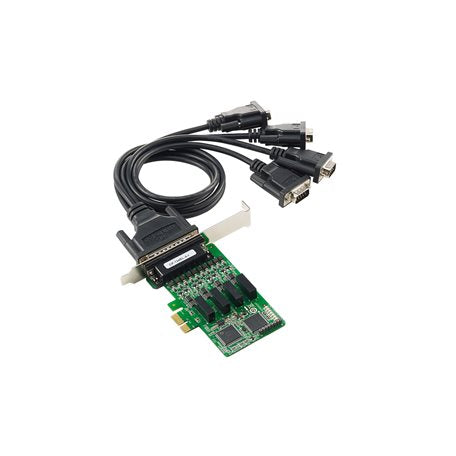

The Moxa CP-134EL-A-I-DB9M is a 4-port RS-422/485 low-profile PCI Express serial board for industrial PCs, built for reliable multiport serial connectivity in automation, data acquisition and device networking. It includes 2 kV electrical isolation and 4 kV surge protection, and ships with a DB9 male cable for direct connection to field devices. It is rated for 0 to 55°C operation.

The board uses a PCI Express 1.0 x1 interface with 16C550C compatible UARTs and a 128-byte FIFO, supporting baudrates from 50 bps to 921.6 kbps including non-standard rates. Up to 8 boards can be installed in a single PC, and drivers are available for Windows, Linux and UNIX. Built-in LEDs and management software simplify installation and troubleshooting.

Features

- PCI Express 1.0 compliant
- 921.6 kbps maximum baudrate for fast data transmission
- 128-byte FIFO and on-chip S/W flow control
- Variety of connection cables and boxes available for RS-232/422/485
- Drivers for Windows, Linux, and UNIX
- Easy maintenance with built-in LEDs and management software
- Intelligent RS-485 for easy installation and troubleshooting

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-422/485 serial ports
- PCI Express 1.0 bus (x1), low-profile
- DB9 male connectors via cable (board connector: DB44 female)
- 16C550C compatible communication controller
- 128-byte FIFO
- Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, XON/XOFF
- 2 kV electrical isolation
- 4 kV surge protection
- Maximum 8 boards per PC
- Input current: 3,414 mA @ 3.3 VDC
- Operating temperature: 0 to 55°C

FAQs

Q: What serial interfaces does the CP-134EL-A-I-DB9M support?
A: It provides 4 serial ports supporting RS-422 and RS-485.

Q: What type of PC slot does this board need?
A: It uses a PCI Express 1.0 x1 interface and is a low-profile board, suited to compact industrial PC chassis.

Q: Does the board include a cable?
A: Yes, this variant ships with a DB9 male cable. The connector on the board itself is a DB44 female.

Q: What isolation and surge protection does it offer?
A: It provides 2 kV electrical isolation and 4 kV surge protection to help protect the host PC from field-side electrical faults.

Q: Which operating systems are supported?
A: Moxa provides drivers for Windows, Linux and UNIX.

Q: How many boards can be installed in one PC?
A: A maximum of 8 boards can be installed in a single PC.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
