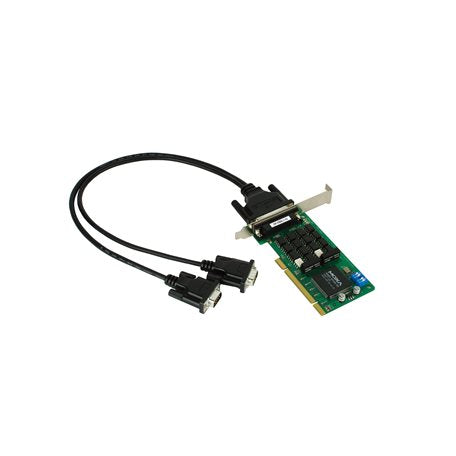

Moxa CP-132UL-T | CP-132UL 2-Port RS-422/485 PCI Serial Board, -40 to 85°C

Authorised Moxa Partner

SKU:CP-132UL-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa CP-132UL-T is a 2-port RS-422/485 low-profile Universal PCI serial board built for industrial automation and PC-based data acquisition. This wide-temperature, non-isolated model operates from -40 to 85°C, making it suited to harsh environments, and supports RS-422/485 transmission over distances of up to 1.2 km.

The board supports baudrates up to 921.6 kbps with over 800 kbps throughput, a 128-byte FIFO and on-chip software flow control. It is compatible with 3.3/5 V PCI and PCI-X slots, uses the MD1 low-profile form factor for small-sized PCs, and ships with drivers for Windows, Linux and UNIX. The isolated variant is a separate model, the CP-132UL-I.

Features

- Over 800 kbps data throughput for top performance
- ADDC (automatic data direction control) for RS-485 signals
- Turbo Serial Engine chip with burst data mode
- Transmit data up to 1.2 km with RS-422/485
- Fits small-sized PCs with the MD1 low-profile form factor
- Drivers provided for a broad selection of operating systems

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x RS-422/485 serial ports
- Universal PCI (3.3/5 V PCI and PCI-X compatible)
- Max baudrate 921.6 kbps (over 800 kbps throughput)
- 128-byte FIFO with on-chip software flow control
- Up to 31 daisy-chained RS-485 devices within 1.2 km
- MD1 low-profile form factor
- Operating temperature -40 to 85°C (wide-temperature model)
- No electrical isolation
- Connectors: 2 x DB25 female
- Drivers for Windows, Linux and UNIX

FAQs

Q: What operating temperature range does the CP-132UL-T support?
A: The CP-132UL-T is a wide-temperature model rated for operation from -40 to 85°C.

Q: Does the CP-132UL-T provide electrical isolation?
A: No. The CP-132UL-T is non-isolated. 2 kV isolation is available on the CP-132UL-I model.

Q: Which serial interfaces and connectors does it use?
A: It provides 2 x RS-422/485 serial ports on DB25 female connectors.

Q: Is it compatible with both PCI and PCI-X slots?
A: Yes. It is a Universal PCI board compatible with 3.3/5 V PCI and PCI-X slots.

Q: How many RS-485 devices can be daisy-chained?
A: Up to 31 RS-485 devices can be daisy-chained over distances of up to 1.2 km.

Q: Which operating systems have drivers available?
A: Drivers are provided for Windows, Linux and UNIX.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
