Moxa CP-114UL w/o Cable | CP-114UL 4-Port RS-232/422/485 Serial Board, No Cable

Authorised Moxa Partner

SKU:CP-114UL w/o Cable

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

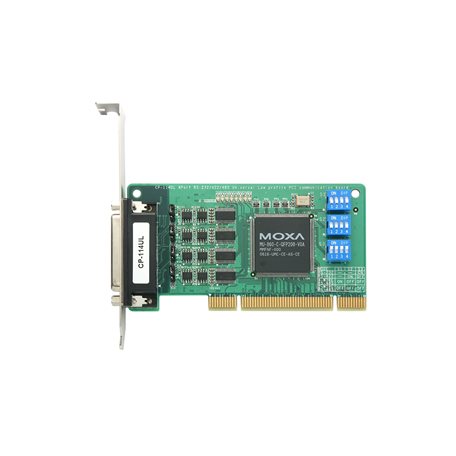

The Moxa CP-114UL w/o Cable is a 4-port RS-232/422/485 low-profile Universal PCI serial board for industrial automation and PC-based data acquisition. This is the standard non-isolated model with a 0 to 55°C operating range, supplied without a cable, making it suited to installations where you already have or prefer to select your own DB44 fan-out cabling.

Each port is software-selectable between RS-232, RS-422 and RS-485, with on-chip automatic data direction control that makes RS-485 as simple to use as RS-232. The 32-bit Universal PCI interface is compatible with 3.3/5 V PCI and PCI-X slots, and up to 8 boards can be installed in a single PC. Drivers are provided for Windows, Linux and UNIX, and WEPOS is also supported.

Features

- On-chip ADDC (automatic data direction control) makes RS-485 as easy to use as RS-232
- RS-485 mode supports up to 31 daisy-chained devices within 1.2 km
- Drivers provided for Windows, Linux and UNIX; WEPOS also supported
- Built-in LEDs for easy maintenance
- Low-profile Universal PCI design fits 3.3/5 V PCI and PCI-X slots
- Software-selectable RS-232/422/485 per port

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 serial ports
- RS-232/422/485 software-selectable serial standards
- 32-bit Universal PCI bus (3.3/5 V PCI and PCI-X compatible)
- DB44 female connector
- MU860 (16C550C compatible) communication controller
- 128-byte FIFO
- Baudrate: 50 bps to 921.6 kbps
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, XON/XOFF
- Up to 8 boards per PC
- Operating temperature: 0 to 55°C
- Over 700 kbps data throughput
- Supplied without cable, non-isolated

FAQs

Q: Does the CP-114UL w/o Cable include a cable?
A: No. This model is supplied without a cable, so a compatible DB44 fan-out cable needs to be sourced separately.

Q: Does this model provide 2 kV isolation?
A: No. This is the standard non-isolated model. 2 kV isolation is available only on the CP-114UL-I variants in the series.

Q: Which serial standards does each port support?
A: Each of the 4 ports is software-selectable between RS-232, RS-422 and RS-485.

Q: Which PCI slots is it compatible with?
A: It uses a 32-bit Universal PCI interface compatible with 3.3/5 V PCI and PCI-X slots.

Q: Which operating systems are supported?
A: Drivers are provided for Windows, Linux and UNIX, and WEPOS is also supported.

Q: How many boards can be installed in one PC?
A: Up to 8 boards can be installed in a single PC.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
