Moxa CP-114UL-I-DB9M | CP-114UL 4-Port RS-232/422/485 PCI Serial Board, 2kV Isolated, DB9M

Authorised Moxa Partner

SKU:CP-114UL-I-DB9M

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

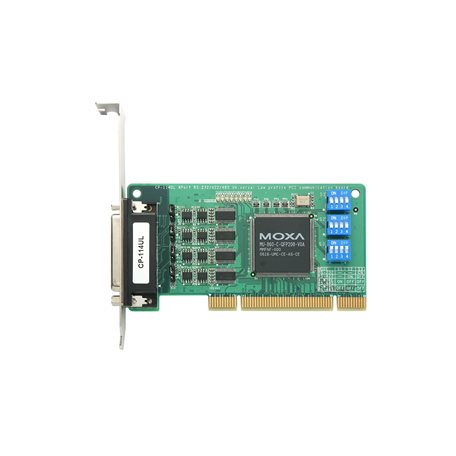

The Moxa CP-114UL-I-DB9M is a 4-port RS-232/422/485 low-profile Universal PCI serial board with 2 kV optical isolation, built for industrial automation, point-of-sale and data acquisition systems that need reliable multiport serial connectivity. It supports baudrates from 50 bps to 921.6 kbps with a 128-byte FIFO per port and ships with a DB9 male cable, so all four serial ports are ready to connect on installation.

The board is compatible with 3.3/5 V PCI and PCI-X slots, includes on-chip automatic data direction control for RS-485, and operates across a 0 to 55°C temperature range. Drivers are available for a broad selection of operating systems including Windows and Linux, and up to 8 boards can be installed in a single PC for large serial port counts.

Features

- Over 700 kbps data throughput
- 128-byte FIFO with on-chip hardware and software flow control
- Universal PCI compatible with 3.3/5 V PCI and PCI-X slots
- On-chip automatic data direction control (ADDC) for RS-485
- 2 kV optical isolation protects the PC from electrical surges on the serial line
- Drivers for a broad selection of operating systems including Windows and Linux
- Built-in LEDs for easy maintenance
- Low-profile form factor

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232/422/485 serial ports
- 32-bit Universal PCI bus (3.3/5 V PCI and PCI-X compatible)
- Communication controller: MU860 (16C550C compatible)
- Connector: DB44 female (DB9 male cable included)
- Baudrate: 50 bps to 921.6 kbps
- 128-byte FIFO
- Data bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, XON/XOFF
- 2 kV optical isolation
- Input current: 465 mA at 5 VDC
- Dimensions: 64.4 x 130 mm (2.53 x 5.12 in)
- Maximum 8 boards per PC
- Operating temperature: 0 to 55°C
- MTBF: 114,223 hrs (Telcordia SR332)
- Compliance: RoHS, CRoHS, WEEE

FAQs

Q: Which serial interfaces does the CP-114UL-I-DB9M support?
A: Each of the 4 ports is software-selectable between RS-232, RS-422 and RS-485, so one board covers a mix of serial devices.

Q: Does this board include isolation protection?
A: Yes. It provides 2 kV optical isolation, which helps protect the host PC from surges and ground potential differences on the serial lines.

Q: Is a cable included?
A: Yes. A DB9 male cable is included, connecting to the board's DB44 female connector and providing the four serial ports.

Q: Which PCI slots is it compatible with?
A: It is a 32-bit Universal PCI board compatible with 3.3/5 V PCI and PCI-X slots, and its low-profile form factor suits compact chassis.

Q: How many of these boards can be installed in one PC?
A: Up to 8 boards can be installed in a single PC, giving a maximum of 32 serial ports.

Q: What operating systems are supported?
A: Drivers are available for a broad selection of operating systems including Windows and Linux.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
