Moxa CP-114UL-I | CP-114UL 4-Port RS-232/422/485 Serial Board, 2 kV Isolation

Authorised Moxa Partner

SKU:CP-114UL-I

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

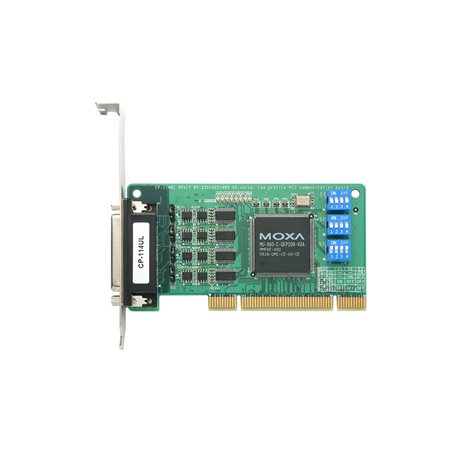

The Moxa CP-114UL-I is a 4-port RS-232/422/485 universal PCI serial board in a low-profile form factor, with 2 kV optical isolation on every port. Designed for industrial automation and PC-based data acquisition, it protects host systems from ground loops and surges on long-distance serial links. This variant uses a DB44 female connector, operates from 0 to 55°C and ships without a cable.

The board uses a 32-bit Universal PCI interface compatible with 3.3/5 V PCI and PCI-X slots, and supports baud rates from 50 bps to 921.6 kbps. Up to eight boards can be installed in a single PC, and drivers are available for Windows, Linux and other operating systems. Built-in Tx/Rx LEDs on each port simplify commissioning and troubleshooting.

Features

- Over 700 kbps data throughput
- On-chip automatic data direction control (ADDC) for RS-485
- Supports up to 31 daisy-chained RS-485 devices within 1.2 km
- 2 kV electrical isolation for long-distance RS-485 communication
- Low-profile form factor
- Drivers for Windows, Linux and other operating systems
- Built-in LEDs for easy maintenance

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232/422/485 serial ports
- 32-bit Universal PCI bus (3.3/5 V PCI and PCI-X compatible)
- DB44 female connector, cable not included
- MU860 communication controller (16C550C compatible)
- 128-byte FIFO per port
- Baud rate: 50 bps to 921.6 kbps
- 2 kV isolation protection
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, XON/XOFF
- Up to 8 boards per PC
- Built-in Tx/Rx LEDs per port
- Dimensions: 64.4 x 130 mm
- Operating temperature: 0 to 55°C

FAQs

Q: Does the CP-114UL-I include a cable?
A: No. This model has a DB44 female connector and is supplied without a cable, so a compatible Moxa fan-out cable needs to be ordered separately.

Q: Which serial interfaces does each port support?
A: Each of the 4 ports supports RS-232, RS-422 and RS-485, selectable in software.

Q: What is the difference between the CP-114UL-I and the standard CP-114UL?
A: The CP-114UL-I adds 2 kV optical isolation on the serial ports, which suits long-distance RS-485 runs and electrically noisy industrial environments.

Q: Which PCI slots is it compatible with?
A: It uses a 32-bit Universal PCI bus compatible with 3.3/5 V PCI and PCI-X slots.

Q: How many boards can I install in one PC?
A: Up to 8 boards can be installed in a single PC, giving a maximum of 32 serial ports.

Q: Which operating systems are supported?
A: Drivers are available for Windows, Linux and other operating systems.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
