Moxa CP-114EL-DB25M | CP-114EL 4-Port RS-232/422/485 PCIe x1 Serial Board, DB25M Cable

Authorised Moxa Partner

SKU:CP-114EL-DB25M

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

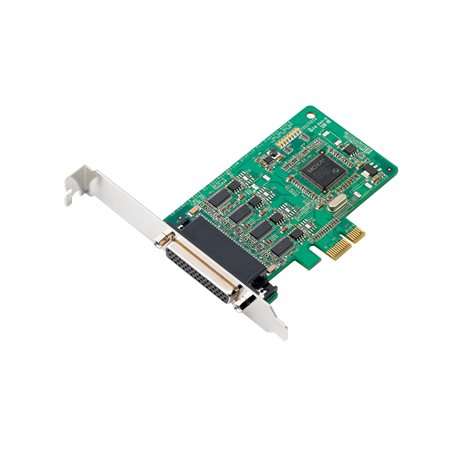

The Moxa CP-114EL-DB25M is a 4-port RS-232/422/485 low-profile PCI Express x1 serial board supplied with a CBL-M44M25x4-50 DB25 male fan-out cable. This is the non-isolated model, suited to POS, ATM and industrial automation systems that need reliable multiport serial connectivity from a PCIe slot.

Each port supports baudrates from 50 bps to 921.6 kbps, including non-standard rates, with full modem control signals for compatibility with a wide range of serial peripherals. The board fits any PCI Express slot (x1 and larger) and is supported on Windows, Linux and UNIX. Built-in Tx/Rx LEDs on every port simplify troubleshooting.

Features

- Full modem control signals for compatibility with a wide range of serial peripherals
- Fits any PCI Express slot (x1 and larger)
- Windows drivers from DOS and Windows 95 through Windows 10/Server 2019 (x86/x64), plus Windows Embedded CE 5.0/6.0 and XP Embedded
- Linux drivers available
- Designed for POS, ATM and industrial automation applications
- Low-profile form factor for compact system chassis

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232/422/485 serial ports
- PCI Express x1 interface, low-profile board
- Baudrate: 50 bps to 921.6 kbps, non-standard baudrates supported
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, XON/XOFF
- Includes CBL-M44M25x4-50 cable (DB25 male)
- No isolation on this model
- Input current: 835 mA @ 3.3 VDC
- Dimensions: 67.21 x 103 mm (2.65 x 4.06 in)
- Tx/Rx LEDs for each port
- Operating temperature: 0 to 55°C
- Storage temperature: -20 to 85°C
- Humidity: 5 to 95% (non-condensing)
- EMC/EMI: EN 55032/35, CISPR 32, FCC Part 15B Class B

FAQs

Q: Does the CP-114EL-DB25M include isolation?
A: No. This is the non-isolated model. 2 kV isolation is available on the CP-114EL-I-DB25M variant.

Q: Is the fan-out cable included?
A: Yes. The CBL-M44M25x4-50 cable with DB25 male connectors is included.

Q: What serial interfaces does each port support?
A: Each of the 4 ports supports RS-232, RS-422 and RS-485.

Q: Which PCI Express slots is it compatible with?
A: It is a PCI Express x1 board and fits any PCI Express slot, x1 or larger.

Q: Which operating systems are supported?
A: Windows (including Windows 10/Server 2019 on x86/x64, plus Embedded CE 5.0/6.0 and XP Embedded), Linux and UNIX.

Q: What baudrates are supported?
A: From 50 bps up to 921.6 kbps, including non-standard baudrates.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
