Moxa CP-112UL-I-DB9M | CP-112UL 2-Port RS-232/422/485 Serial Board, 2 kV Isolation, DB9M Cable

Authorised Moxa Partner

SKU:CP-112UL-I-DB9M

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

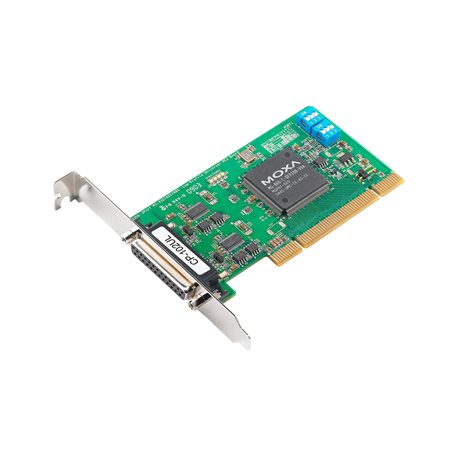

The Moxa CP-112UL-I-DB9M is a 2-port RS-232/422/485 low-profile Universal PCI serial board with 2 kV optical isolation, built for industrial automation and PC-based data acquisition. It supports 0 to 55°C operation and includes a DB9 male cable, making this variant ready to connect to serial devices straight out of the box.

The board is compatible with 3.3/5 V PCI and PCI-X slots, delivers baudrates up to 921.6 kbps with a 128-byte FIFO, and provides built-in Tx/Rx LEDs for each port to simplify maintenance. Drivers are available for Windows, Linux, UNIX and other operating systems.

Features

- Over 700 kbps data throughput
- 128-byte FIFO and on-chip hardware/software flow control
- Universal PCI compatible with 3.3/5 V PCI and PCI-X
- 921.6 kbps maximum baudrate
- Drivers for Windows, Linux, UNIX and other operating systems
- Built-in LEDs for easy maintenance
- 2 kV optical isolation to protect the host from electrical surges and ground loops

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x RS-232/422/485 serial ports
- Low-profile Universal PCI (3.3/5 V PCI and PCI-X compatible)
- 2 kV optical isolation
- Baudrate 50 bps to 921.6 kbps
- Data bits 5, 6, 7, 8
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, XON/XOFF
- 128-byte FIFO
- Input current 290 mA @ 5 VDC
- Dimensions 64.4 x 120 mm (2.53 x 4.72 in)
- Operating temperature 0 to 55°C
- Includes DB9 male cable (CBL-M25M9x2-50)
- Built-in Tx/Rx LEDs per port

FAQs

Q: Which PCI slots is the CP-112UL-I-DB9M compatible with?
A: It is a low-profile Universal PCI board compatible with 3.3/5 V PCI and PCI-X slots.

Q: Which serial interfaces does each port support?
A: Both ports support RS-232, RS-422 and RS-485.

Q: What does the 2 kV optical isolation provide?
A: Optical isolation protects the host computer and connected equipment from electrical surges and ground loops, which suits electrically noisy industrial environments.

Q: Is a cable included?
A: Yes. This model includes a DB9 male cable (CBL-M25M9x2-50) to connect the two ports to serial devices.

Q: What operating systems are supported?
A: Drivers are available for Windows, Linux, UNIX and other operating systems.

Q: What is the maximum baudrate?
A: The board supports baudrates from 50 bps up to 921.6 kbps, with a 128-byte FIFO for each port.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
