Moxa CP-112UL-DB9M | CP-112UL 2-Port RS-232/422/485 Low-Profile PCI Serial Board, DB9M

Authorised Moxa Partner

SKU:CP-112UL-DB9M

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

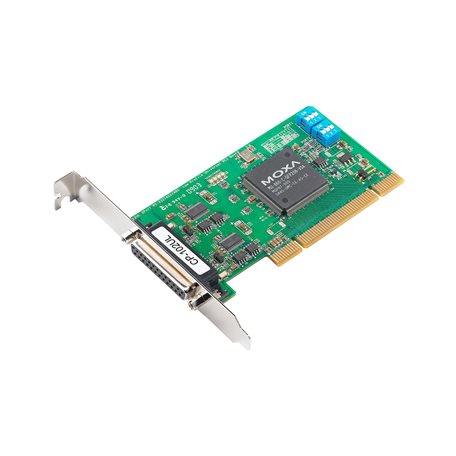

The Moxa CP-112UL-DB9M is a 2-port RS-232/422/485 low-profile Universal PCI serial board for adding reliable industrial serial connectivity to a PC or industrial computer. This non-isolated variant ships with a DB9 male cable and operates across a 0 to 55°C temperature range, making it a practical choice for controlled-environment automation, point-of-sale, and device connectivity deployments.

The board uses a 32-bit Universal PCI interface compatible with 3.3/5 V PCI and PCI-X slots, with an MU860 (16C550C compatible) communication controller and 128-byte FIFO for stable data handling at up to 921.6 kbps. Up to 8 boards can be installed in a single PC, and built-in Tx/Rx LEDs on each port simplify commissioning and troubleshooting. It belongs to the CP-112UL family, whose -I model adds 2 kV isolation.

Features

- Over 700 kbps data throughput
- 128-byte FIFO with on-chip hardware and software flow control
- Universal PCI compatible with 3.3/5 V PCI and PCI-X slots
- Low-profile form factor for compact chassis
- Tx/Rx LED indicators for each port
- Broad operating system support

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x RS-232/422/485 serial ports
- 32-bit Universal PCI bus (3.3/5 V PCI and PCI-X compatible)
- Communication controller: MU860 (16C550C compatible)
- 128-byte FIFO
- Maximum baud rate: 921.6 kbps
- Connector on board: DB25 female (DB9 male cable included)
- Input current: 175 mA @ 5 VDC
- Dimensions: 64.4 x 120 mm (2.53 x 4.72 in)
- Operating temperature: 0 to 55°C (32 to 131°F)
- Storage temperature: -40 to 85°C
- Built-in Tx/Rx LEDs for each port
- Up to 8 boards per PC

FAQs

Q: Does the CP-112UL-DB9M include a cable?
A: Yes. The board has a DB25 female connector and is supplied with a DB9 male cable.

Q: Is this model electrically isolated?
A: No. The CP-112UL-DB9M is the non-isolated variant. The CP-112UL-I model in the same family adds 2 kV isolation.

Q: Which serial interfaces does it support?
A: Each of the 2 ports supports RS-232, RS-422 and RS-485.

Q: What PCI slots is it compatible with?
A: It uses a 32-bit Universal PCI interface compatible with 3.3/5 V PCI and PCI-X slots.

Q: What is the maximum baud rate?
A: The board supports baud rates up to 921.6 kbps.

Q: How many boards can be installed in one PC?
A: Up to 8 boards can be installed in a single PC.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
