Moxa CP-104JU | CP-104UL/104JU 4-Port RS-232 Universal PCI Serial Board, RJ45

Authorised Moxa Partner

SKU:CP-104JU

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

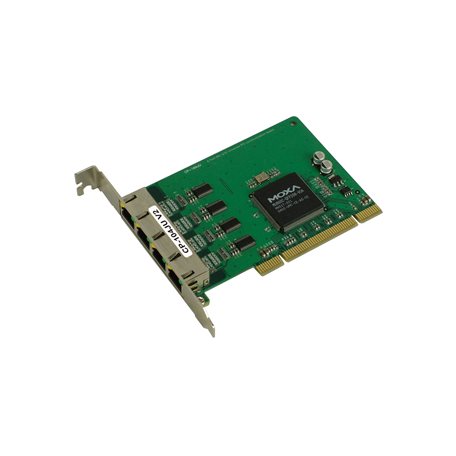

The CP-104JU is a 4-port RS-232 Universal PCI serial board with RJ45 connectors on the board, rated for standard 0 to 55°C operation. Built for POS and ATM applications, it works with both 3.3 V and 5 V PCI buses and delivers over 800 kbps of throughput with a maximum baudrate of 921.6 kbps.

Each port has a 128-byte FIFO with on-chip hardware and software flow control, full modem control signals and built-in Tx/Rx LEDs. Drivers are available for Windows, Linux and UNIX, and up to 8 boards can be installed in a single PC for high-density serial expansion.

Features

- Over 800 kbps data throughput
- 921.6 kbps maximum baudrate
- 128-byte FIFO with on-chip hardware and software flow control
- Full modem control signals
- Compatible with 3.3/5 V PCI and PCI-X
- Drivers for Windows, Linux and UNIX (QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD)
- 15 kV ESD protection on the board
- Built-in Tx/Rx LEDs for each port

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232 serial ports
- 4 x RJ45 connectors on board
- 32-bit Universal PCI bus (3.3/5 V PCI and PCI-X compatible)
- Comm. controller: MU860 (16C550C compatible)
- 128-byte FIFO
- Baudrate: 50 bps to 921.6 kbps
- Data bits: 5, 6, 7, 8; Stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, XON/XOFF
- RS-232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Max. 8 boards per PC
- Input current: 135 mA @ 5 VDC
- Dimensions: 83 x 120 mm (3.27 x 4.72 in)
- Operating temperature: 0 to 55°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- No isolation

FAQs

Q: What type of PCI slot does the CP-104JU require?
A: It is a 32-bit Universal PCI board compatible with both 3.3 V and 5 V PCI buses, and it is also compatible with PCI-X.

Q: What connectors does this board use for the serial ports?
A: The CP-104JU has 4 RJ45 connectors mounted directly on the board, one for each RS-232 port.

Q: What operating temperature range is this model rated for?
A: This is the standard temperature model, rated for 0 to 55°C operation.

Q: How many CP-104JU boards can be installed in one PC?
A: Up to 8 boards can be installed in a single PC.

Q: Which operating systems are supported?
A: Drivers are available for Windows, Linux and UNIX variants including QNX 6, SCO OpenServer, UnixWare 7, Solaris 10 and FreeBSD.

Q: What is the maximum baudrate supported?
A: Each port supports baudrates from 50 bps up to 921.6 kbps, with over 800 kbps of data throughput.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
