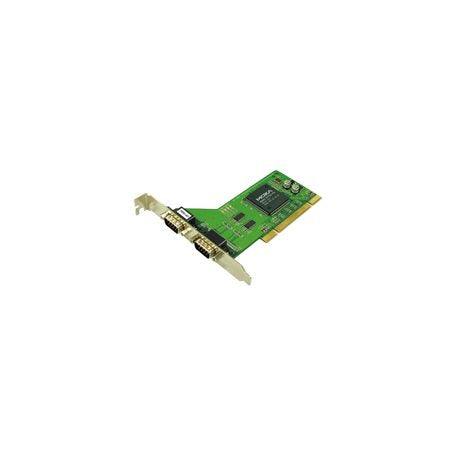

Moxa CP-102UL-T | CP-102UL 2-Port RS-232 Low-Profile PCI Serial Board, -40 to 85°C

Authorised Moxa Partner

SKU:CP-102UL-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa CP-102UL-T is a 2-port RS-232 low-profile Universal PCI serial board built for POS, ATM and industrial automation systems. This is the wide-temperature variant, rated for -40 to 85°C operation, with a low-profile (MD1) form factor that suits compact PCs. Cable is not included.

It works on both 3.3 V and 5 V PCI and PCI-X buses, delivers baudrates from 50 bps to 921.6 kbps with a 128-byte FIFO, and includes full modem control signals plus hardware and software flow control. Built-in Tx/Rx LEDs for each port simplify diagnostics, and drivers are provided for Windows, Linux and UNIX.

Features

- Data throughput of over 800 kbps
- 921.6 kbps maximum baudrate
- On-chip hardware and software flow control
- Full modem control signals
- Drivers provided for Windows, Linux and UNIX
- Low-profile form factor fits compact PCs
- Wide-temperature model for harsh environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x RS-232 serial ports
- Universal PCI (3.3/5 V PCI and PCI-X compatible)
- Low-profile (MD1) form factor
- Baudrate: 50 bps to 921.6 kbps
- 128-byte FIFO
- Input current: 93 mA @ 5 VDC
- Dimensions: 64.5 x 120 mm (2.53 x 4.72 in)
- Operating temperature: -40 to 85°C (-40 to 185°F)
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Built-in Tx/Rx LEDs for each port
- Cable not included

FAQs

Q: What operating temperature range does the CP-102UL-T support?
A: The CP-102UL-T is the wide-temperature model, rated for operation from -40 to 85°C (-40 to 185°F).

Q: Is a serial cable included with the CP-102UL-T?
A: No. The board is supplied without a cable, so a compatible serial cable must be purchased separately.

Q: Which PCI bus types is the CP-102UL-T compatible with?
A: It is a Universal PCI board that works on both 3.3 V and 5 V PCI and PCI-X buses.

Q: Which operating systems have drivers available?
A: Drivers are provided for Windows, Linux and UNIX.

Q: What is the maximum baudrate and FIFO size?
A: The board supports baudrates from 50 bps up to 921.6 kbps and includes a 128-byte FIFO on each port.

Q: Does the CP-102UL-T fit low-profile chassis?
A: Yes. It uses a low-profile (MD1) form factor measuring 64.5 x 120 mm, designed for compact PCs and slim systems.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
