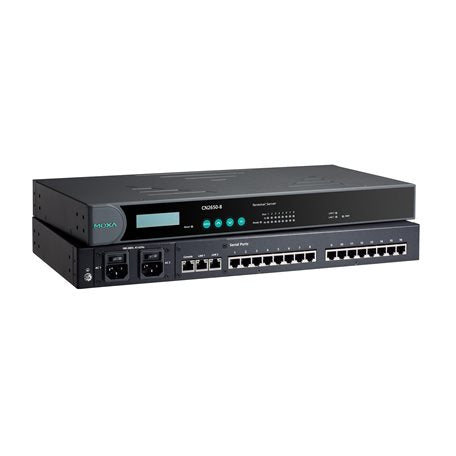

• Moxa CN2650I-8-HV-T black network switch with Ethernet ports and display
1 1

Moxa

Moxa CN2650I-8-HV-T | CN2600 8-Port RS-232/422/485 Terminal Server, 88-300 VDC, -40 to 85C

Moxa CN2650I-8-HV-T | CN2600 8-Port RS-232/422/485 Terminal Server, 88-300 VDC, -40 to 85C

Authorised Moxa Partner

CN2650I-8-HV-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa CN2650I-8-HV-T is a rack-mount terminal server with 8 RS-232/422/485 serial ports and dual 10/100M Ethernet LAN ports, designed for connecting serial devices to an IP network in demanding industrial environments. This high-voltage wide temperature variant accepts 88 to 300 VDC input and operates from -40 to 85°C, with 2 kV serial isolation for protection in electrically noisy sites.

The CN2600 Series supports a broad range of operation modes including Real COM, TCP Server, TCP Client, UDP, RFC2217, Terminal, Reverse Telnet, PPP and Redundant COM. Security features include HTTPS, SSHv2, SNMPv3, RADIUS and AES-128/256, and fixed TTY drivers are available for Linux, UNIX and macOS platforms.

Features

- Dual LAN ports for network redundancy
- Operation modes: Real COM, TCP Server, TCP Client, UDP, RFC2217, Terminal, Reverse Telnet, PPP, DRDAS, Redundant COM
- Automatic Data Direction Control (ADDC) for RS-485
- Fixed TTY drivers for Linux, SCO UNIX, QNX, Solaris, FreeBSD, AIX, HP-UX and macOS
- Built-in watchdog timer for automatic reboot
- 2 kV serial isolation for protection in noisy environments
- Wide-range high-voltage DC input for industrial power systems

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 10/100BaseT(X) Ethernet ports (RJ45) with 1.5 kV built-in magnetic isolation
- 8 x serial ports, DB9 male, RS-232/422/485
- 2 kV serial isolation
- Baudrate 50 bps to 921.6 kbps
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, DTR/DSR, XON/XOFF
- Input voltage 110 VDC (88 to 300 VDC), 1 power input, 200 mA @ 88 VDC
- Metal housing, 19-inch rack mounting
- Dimensions with ears 480 x 198 x 45.5 mm (440 mm wide without ears)
- Operating temperature -40 to 85°C
- Built-in WDT, buzzer and RTC
- Security: HTTPS, SSHv2, SNMPv3, RADIUS, AES-128/256

FAQs

Q: What serial interfaces does the CN2650I-8-HV-T support?
A: It has 8 DB9 male serial ports, each supporting RS-232, RS-422 and RS-485, with baudrates from 50 bps to 921.6 kbps.

Q: What power input does this model use?
A: It accepts 88 to 300 VDC (110 VDC nominal) through a single power input, drawing 200 mA at 88 VDC.

Q: What temperature range is it rated for?
A: As a wide temperature -T model, it operates from -40 to 85°C.

Q: Does it provide isolation for the serial ports?
A: Yes, it provides 2 kV serial isolation, and the Ethernet ports have 1.5 kV built-in magnetic isolation.

Q: Does it support network redundancy?
A: Yes, it has dual 10/100M Ethernet LAN ports for network redundancy, and also supports a Redundant COM operation mode.

Q: Which operating systems have driver support?
A: Fixed TTY drivers are available for Linux, SCO UNIX, QNX, Solaris, FreeBSD, AIX, HP-UX and macOS.
