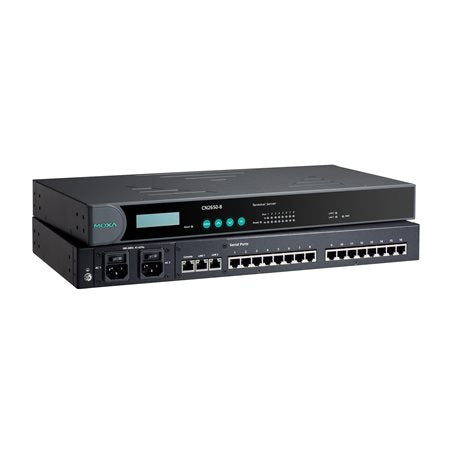

Moxa CN2650I-16-HV-T | CN2600 16-Port RS-232/422/485 Terminal Server, 2kV, 88-300VDC

Authorised Moxa Partner

SKU:CN2650I-16-HV-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa CN2650I-16-HV-T is a dual-LAN industrial terminal server with 16 RS-232/422/485 serial ports, each protected by 2 kV isolation. It suits factory automation, utilities and process control sites that need to connect a large number of serial devices to an Ethernet network, and its wide-temperature design operates from -40 to 85°C.

This high-voltage variant accepts an 88 to 300 VDC input, making it a fit for installations with 110 VDC power supplies. Per-port isolation means a surge on one serial port does not take down the others, and configuration is available through a web console, Telnet, serial console, Windows utility and Device Search Utility, with Windows Real COM driver support for legacy serial applications.

Features

- Configuration via serial console, Telnet console, Windows utility, Device Search Utility (DSU) and web console (HTTP/HTTPS)
- Security support: HTTPS/SSL, RADIUS, SSH, PAP, CHAP
- Unicast routing: RIPv1/v2 and static route
- Windows Real COM drivers for legacy serial software
- MIB-II management
- Per-port 2 kV isolation keeps other ports working if one is disabled by a surge
- RoHS, CRoHS and WEEE compliant

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x RS-232/422/485 serial ports (DB9 male)
- Dual LAN
- 2 kV isolation per serial port
- Input voltage: 110 VDC (88 to 300 VDC), 1 power input
- Input current: 200 mA @ 88 VDC
- Operating temperature: -40 to 85°C (-40 to 185°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- Weight: 3,987 g (8.79 lb)
- MTBF: 241,404 hrs (Telcordia)
- RS-485 Automatic Data Direction Control (ADDC)
- RS-485 pull high/low resistors: 1 kilo-ohm, 150 kilo-ohms
- RS-485 terminator: 120 ohms

FAQs

Q: How many serial ports does the CN2650I-16-HV-T have?
A: It has 16 serial ports on DB9 male connectors, each configurable for RS-232, RS-422 or RS-485.

Q: What power input does this model accept?
A: This high-voltage variant accepts 88 to 300 VDC through a single power input, with a typical rating of 110 VDC.

Q: Does it support extended temperature environments?
A: Yes. It operates from -40 to 85°C, making it suitable for harsh industrial and outdoor cabinet installations.

Q: What does 2 kV isolation per port provide?
A: Each serial port is electrically isolated to 2 kV, so a surge that disables one port does not affect the remaining ports.

Q: How can I configure the terminal server?
A: You can configure it through the serial console, Telnet console, Windows utility, Device Search Utility (DSU) or the web console over HTTP/HTTPS.

Q: Does it work with legacy Windows serial applications?
A: Yes. Windows Real COM drivers let existing serial software communicate with the connected devices over the network.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
