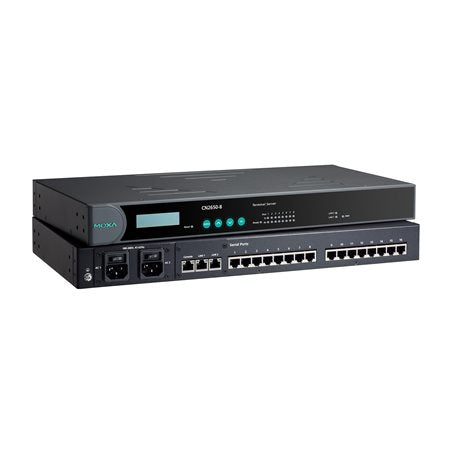

Moxa CN2650I-16 | CN2600 Dual-LAN Terminal Server, 16x RS-232/422/485, 2kV

Authorised Moxa Partner

SKU:CN2650I-16

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa CN2650I-16 is a dual-LAN terminal server with 16 RS-232/422/485 serial ports on DB9 male connectors, built for connecting serial devices to Ethernet networks in industrial and enterprise environments. Each serial port has 2 kV optical isolation, so a surge on one port does not affect the others, and the unit runs from a single 100 to 240 VAC power input across a 0 to 55°C operating range.

Two independent 10/100BaseT(X) Ethernet ports provide separate MAC and IP addresses, with a Redundant COM mode available when both LANs are active. Real COM and TTY drivers for Windows, Linux and macOS allow existing serial-based applications to communicate over the network without software changes, and an LCD panel simplifies initial IP address configuration on standard-temperature models.

Features

- LCD panel for easy IP address configuration
- Dual-LAN with two independent MAC addresses and IP addresses
- Redundant COM function when both LANs are active
- Dual-host redundancy to add a backup PC to the system
- Real COM and TTY drivers for Windows, Linux and macOS
- Per-port 2 kV isolation protects the other ports from a surge on one port

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x RS-232/422/485 serial ports
- DB9 male serial connectors
- 2 kV isolation per serial port
- 2 x 10/100BaseT(X) Ethernet ports (RJ45)
- 1.5 kV built-in magnetic isolation on Ethernet ports
- Automatic Data Direction Control (ADDC) for RS-485
- Console port: RS-232 (TxD, RxD, GND), 8-pin RJ45 (19200, n, 8, 1)
- Single power input: 100 to 240 VAC (47 to 63 Hz), 130 mA @ 110 VAC
- Operating temperature: 0 to 55°C
- Safety: UL 62368-1
- MTBF: 248,847 hrs (Telcordia)
- Configuration: Serial Console, Telnet Console, Windows Utility, Device Search Utility (DSU), Web console (HTTP/HTTPS)

FAQs

Q: How many serial ports does the Moxa CN2650I-16 have?
A: It has 16 serial ports, each software-selectable between RS-232, RS-422 and RS-485, on DB9 male connectors.

Q: What isolation does the CN2650I-16 provide?
A: Each serial port has 2 kV isolation, so a surge on one port does not affect the others. The Ethernet ports have 1.5 kV built-in magnetic isolation.

Q: Does the CN2650I-16 support network redundancy?
A: Yes. It has two LAN ports with independent MAC and IP addresses, and a Redundant COM mode is available when both LANs are active. Dual-host redundancy also allows a backup PC to be added to the system.

Q: What power input does this model use?
A: It has a single AC power input accepting 100 to 240 VAC at 47 to 63 Hz, drawing 130 mA at 110 VAC.

Q: Which operating systems are supported by the Real COM and TTY drivers?
A: Real COM and TTY drivers are available for Windows, Linux and macOS, letting existing serial-based software communicate over the network.

Q: What is the operating temperature range?
A: This standard-temperature model operates from 0 to 55°C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
