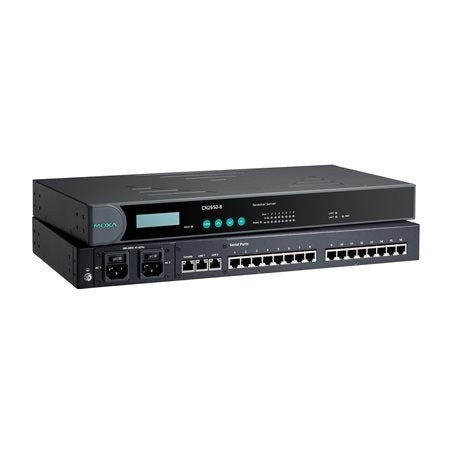

• Moxa CN2650-8 black network switch with Ethernet ports and display
1 1

Moxa

Moxa CN2650-8 | CN2600 Dual-LAN Terminal Server, 8-Port RS-232/422/485, RJ45

Moxa CN2650-8 | CN2600 Dual-LAN Terminal Server, 8-Port RS-232/422/485, RJ45

Authorised Moxa Partner

CN2650-8

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa CN2650-8 is a dual-LAN terminal server with 8 RS-232/422/485 serial ports on RJ45 connectors, built for industrial serial-to-Ethernet connectivity. Two independent 10/100BaseT(X) Ethernet ports, each with its own MAC and IP address, support Redundant COM and dual-host redundancy so critical serial devices stay reachable if a network path or host fails. This single AC power input model operates from 0 to 55°C.

Eight operation modes cover most deployment needs, including Real COM, TCP Server, TCP Client, UDP, RFC2217, Terminal, Reverse Telnet, PPP and DRDAS. An LCD panel simplifies IP address setup, and management is available through a web console (HTTP/HTTPS), Telnet, serial console and the Device Search Utility. Real COM and TTY drivers are available for Windows, Linux and macOS, with Android API support for Android 3.1.x and later.

Features

- LCD panel for easy IP address configuration
- Dual-LAN cards with two independent MAC addresses and IP addresses
- Redundant COM function available when both LANs are active
- Dual-host redundancy to add a backup PC to your system
- Operation modes: Real COM, TCP Server, TCP Client, UDP, RFC2217, Terminal, Reverse Telnet, PPP, DRDAS, Redundant COM
- Real COM and TTY drivers for Windows, Linux and macOS
- Android API support (Android 3.1.x and later)
- Management via serial console, Telnet, Windows utility, Device Search Utility and web console (HTTP/HTTPS)
- Protocol support including DHCP Client, DNS, DDNS, SNMPv1/v2c/v3, SMTP, HTTP and Telnet

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 10/100BaseT(X) Ethernet ports (RJ45), 1.5 kV built-in magnetic isolation
- 8 x RS-232/422/485 serial ports, 8-pin RJ45 connector
- Baudrate 50 bps to 921.6 kbps
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, DTR/DSR, XON/XOFF
- RS-485 Automatic Data Direction Control (ADDC)
- RS-485 pull high/low resistor: 1 kilo-ohm, 150 kilo-ohms; 120 ohm terminator
- Dedicated RS-232 console port (8-pin RJ45) on rear panel
- 1 x power input, 100 to 240 VAC (50/60 Hz), 130 mA @ 110 VAC
- Operating temperature 0 to 55°C (32 to 131°F)
- Storage temperature 0 to 55°C (32 to 131°F)
- Ambient relative humidity 5 to 95% (non-condensing)
- Weight 2,410 g (5.31 lb)
- EMI: CISPR 32, FCC Part 15B Class A; RoHS, CRoHS, WEEE compliant

FAQs

Q: How many serial ports does the Moxa CN2650-8 have and what interfaces do they support?
A: It has 8 serial ports on 8-pin RJ45 connectors, each software-selectable between RS-232, RS-422 and RS-485. Baudrates range from 50 bps to 921.6 kbps.

Q: What does the dual-LAN design provide?
A: The two 10/100BaseT(X) Ethernet ports have independent MAC and IP addresses. When both are active, the Redundant COM function and dual-host redundancy let you add a backup PC to your system.

Q: Which operation modes are supported?
A: Real COM, TCP Server, TCP Client, UDP, RFC2217, Terminal, Reverse Telnet, PPP, DRDAS and Redundant COM.

Q: How is the CN2650-8 powered?
A: It has a single AC power input accepting 100 to 240 VAC at 50/60 Hz, drawing 130 mA at 110 VAC.

Q: Which operating systems are supported by the drivers?
A: Real COM and TTY drivers are available for Windows, Linux and macOS, and Android API support is provided for Android 3.1.x and later.

Q: How do I configure the IP address and manage the unit?
A: Use the front LCD panel for quick IP setup, then manage via the web console (HTTP/HTTPS), Telnet or serial console, the Windows utility, or the Device Search Utility. A dedicated RS-232 console port is on the rear panel.
