Moxa CN2650-8-2AC | CN2600 8-Port RS-232/422/485 Terminal Server, Dual LAN, Dual AC

Authorised Moxa Partner

SKU:CN2650-8-2AC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

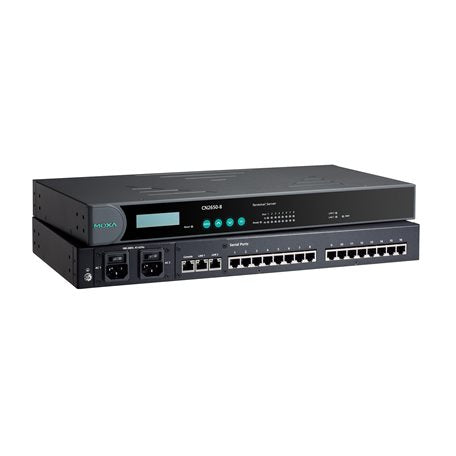

The Moxa CN2650-8-2AC is a rack-mount terminal server that connects 8 serial devices (RS-232/422/485 via RJ45) to an Ethernet network. With dual LAN and dual AC power inputs, it suits industrial serial-to-Ethernet connectivity where uptime and network resilience matter, operating across 0 to 55°C.

Two independent LAN ports each carry their own MAC and IP address, enabling redundant COM and dual-host redundancy. Real COM/TTY drivers for Windows and Linux, plus modes including TCP Server, TCP Client, UDP, RFC2217, Reverse Telnet and PPP, make it adaptable to legacy serial equipment such as PLCs, meters, sensors and card readers.

Features

- Dual-LAN cards with two independent MAC addresses and IP addresses
- Redundant COM function available when both LANs are active
- Dual-host redundancy lets you add a backup PC to the system
- Real COM/TTY drivers for Windows and Linux
- Operation modes: Real COM, TCP Server, TCP Client, UDP, RFC2217, Terminal, Reverse Telnet, PPP, DRDAS, Redundant COM
- Universal high-voltage range: 100 to 240 VAC or 88 to 300 VDC

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x RS-232/422/485 serial ports
- 8-pin RJ45 serial connector
- Dual LAN with two independent MAC and IP addresses
- Dual power inputs, 100-240 VAC (88-300 VDC universal range)
- Baudrate 50 bps to 921.6 kbps
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, DTR/DSR, XON/XOFF
- Automatic Data Direction Control (ADDC) for RS-485
- RS-485 pull high/low resistor: 1 kilo-ohm or 150 kilo-ohms
- Operating temperature 0 to 55°C (32 to 131°F)
- Metal housing, 19-inch rack mounting
- Dimensions with ears 480 x 198 x 45.5 mm; without ears 440 x 198 x 45.5 mm
- Weight 2,560 g (5.64 lb)
- Built-in buzzer and RTC
- MTBF 773,268 hrs (Telcordia)
- Certifications: EN 55032/24, CISPR 32, FCC Part 15B Class A, IEC 60950-1, RoHS, CRoHS, WEEE

FAQs

Q: How many serial ports does the Moxa CN2650-8-2AC have?
A: It provides 8 serial ports, each software-selectable for RS-232, RS-422 or RS-485 and presented on 8-pin RJ45 connectors.

Q: Does it support redundant network connections?
A: Yes. It has dual LAN cards with two independent MAC and IP addresses, and the Redundant COM function is available when both LANs are active.

Q: What power input does this model use?
A: It has dual power inputs accepting 100 to 240 VAC, with a universal range of 88 to 300 VDC, so one supply can back up the other.

Q: Which operating systems and modes are supported?
A: Real COM/TTY drivers are provided for Windows and Linux. Operation modes include Real COM, TCP Server, TCP Client, UDP, RFC2217, Terminal, Reverse Telnet, PPP, DRDAS and Redundant COM.

Q: Can it be rack mounted?
A: Yes. It has a metal housing for 19-inch rack mounting, measuring 480 x 198 x 45.5 mm with mounting ears fitted.

Q: What is the operating temperature range?
A: This model operates from 0 to 55°C (32 to 131°F), making it suited to controlled indoor industrial and equipment room environments.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
