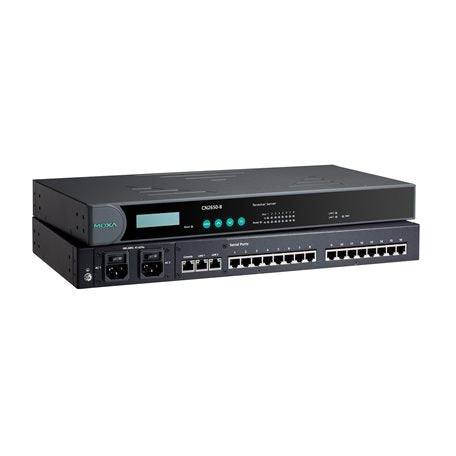

The Moxa CN2650-16 is a dual-LAN terminal server with 16 RS-232/422/485 serial ports in a 19-inch rack-mount metal housing. It connects serial devices to Ethernet networks and uses two independent LAN ports with a Redundant COM mode to keep serial data flowing if one network path fails.

This single AC input, standard temperature variant supports Real COM, TCP Server, TCP Client, UDP, RFC2217, Terminal, Reverse Telnet, PPP and DRDAS modes. It is configured via serial console, Telnet, web console (HTTP/HTTPS), Windows utility or Device Search Utility, with real TTY drivers for Windows, Linux and macOS.

Features

- Dual-LAN cards with two independent MAC and IP addresses
- Redundant COM function available when both LANs are active
- Dual-host redundancy lets you add a backup PC to your system
- LCD panel for easy IP address configuration
- Real TTY drivers for Windows, Linux and macOS, plus fixed TTY drivers for other UNIX systems
- Software-selectable RS-232/422/485 on all 16 ports

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x RS-232/422/485 serial ports (8-pin RJ45)
- 2 x 10/100BaseT(X) Ethernet ports (RJ45) with 1.5 kV built-in magnetic isolation
- Baudrate: 50 bps to 921.6 kbps
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2; parity None/Even/Odd/Space/Mark
- Flow control: None, RTS/CTS, DTR/DSR, XON/XOFF
- RS-485 ADDC (automatic data direction control); pull high/low resistor 1 kΩ/150 kΩ; 120 Ω terminator
- Operation modes: Real COM, TCP Server, TCP Client, UDP, RFC2217, Terminal, Reverse Telnet, PPP, DRDAS, Redundant COM
- Configuration: Serial console, Telnet console, Windows utility, Device Search Utility (DSU), web console (HTTP/HTTPS)
- Power: 1 x AC input, 100 to 240 VAC 50/60 Hz, 130 mA @ 110 VAC
- Metal housing, 19-inch rack mounting
- Dimensions: 480 x 198 x 45.5 mm with ears; 440 x 198 x 45.5 mm without ears
- MTBF: 457,175 hrs (Telcordia)

FAQs

Q: How many serial ports does the Moxa CN2650-16 have?
A: It has 16 serial ports, each supporting RS-232, RS-422 and RS-485 via 8-pin RJ45 connectors.

Q: What does the dual-LAN design provide?
A: The two LAN ports have independent MAC and IP addresses. With Redundant COM mode enabled, serial data continues to flow if one network path fails.

Q: Which operation modes are supported?
A: Real COM, TCP Server, TCP Client, UDP, RFC2217, Terminal, Reverse Telnet, PPP, DRDAS and Redundant COM.

Q: How is the CN2650-16 powered?
A: It has a single AC input accepting 100 to 240 VAC at 50/60 Hz.

Q: How is the unit mounted and configured?
A: It mounts in a standard 19-inch rack. Configuration is via serial console, Telnet, web console (HTTP/HTTPS), Windows utility or Device Search Utility.

Q: Which operating systems have drivers available?
A: Real TTY drivers are available for Windows, Linux and macOS, with fixed TTY drivers for other UNIX systems.
