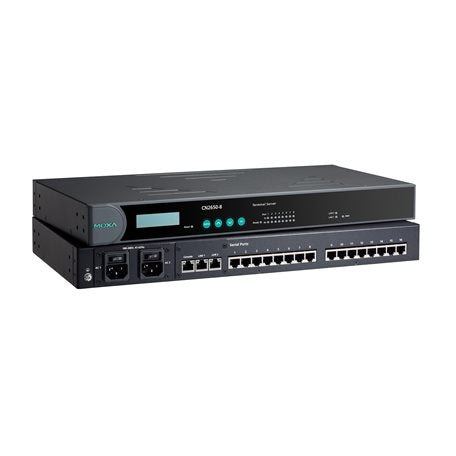

• Moxa CN2650-16-2AC-T black network switch with Ethernet ports and display
1 1

Moxa

Moxa CN2650-16-2AC-T | CN2600 Terminal Server, 16-Port RS-232/422/485, Dual AC, -40 to 75C

Moxa CN2650-16-2AC-T | CN2600 Terminal Server, 16-Port RS-232/422/485, Dual AC, -40 to 75C

Authorised Moxa Partner

CN2650-16-2AC-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa CN2650-16-2AC-T is a rackmount terminal server with 16 RS-232/422/485 serial ports on RJ45 connectors, two independent 10/100M Ethernet LAN ports and dual AC power inputs. As the wide-temperature model in the CN2600 Series, it operates from -40 to 75°C, making it suited to industrial, telecom and harsh-environment racks where serial devices need reliable network access.

Dual-LAN redundancy and redundant COM operation keep serial connections available if a network path fails, while dual-host redundancy allows a backup PC to be added to the system. Real COM and TTY drivers for Windows, Linux and macOS, plus a range of operation modes including TCP Server/Client, UDP, RFC2217, Reverse Telnet and PPP, make integration with existing software straightforward.

Features

- Dual-LAN cards with two independent MAC and IP addresses
- Redundant COM function when both LANs are active
- Dual-host redundancy to add a backup PC to the system
- Dual-AC power inputs with redundant internal power supplies
- Real COM and TTY drivers for Windows, Linux and macOS
- Web console (HTTP/HTTPS), Telnet/Serial console and Device Search Utility (DSU)
- SNMPv1/v2c/v3, HTTPS/SSL, SSH, RADIUS, PAP and CHAP for management and security
- Built-in watchdog timer, buzzer and RTC
- Operation modes: Real COM, TCP Server/Client, UDP, RFC2217, Terminal, Reverse Telnet, PPP, DRDAS, Redundant COM

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x RS-232/422/485 serial ports, 8-pin RJ45 connectors
- 2 x 10/100BaseT(X) Ethernet ports (RJ45), 1.5 kV magnetic isolation
- Baudrate 50 bps to 921.6 kbps
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, DTR/DSR, XON/XOFF
- Console port: RS-232 (TxD, RxD, GND), 8-pin RJ45
- 2 x AC power inputs, 100 to 240 VAC (50/60 Hz)
- Operating temperature -40 to 75°C (-40 to 167°F)
- Storage temperature -40 to 75°C
- Ambient humidity 5 to 95% (non-condensing)
- Metal housing, 19-inch rackmount
- MTBF 115,887 hrs (Telcordia)
- RoHS, CRoHS, WEEE compliant

FAQs

Q: How many serial ports does the Moxa CN2650-16-2AC-T have?
A: It provides 16 software-selectable RS-232/422/485 serial ports on 8-pin RJ45 connectors, plus a separate RS-232 console port.

Q: What is the operating temperature range?
A: This is the wide-temperature model and operates from -40 to 75°C (-40 to 167°F), suitable for industrial and harsh-environment installations.

Q: Does it support power redundancy?
A: Yes. It has two AC power inputs (100 to 240 VAC, 50/60 Hz) with redundant internal power supplies, so it keeps running if one source fails.

Q: What network redundancy options are available?
A: Two independent 10/100M Ethernet LAN ports, each with its own MAC and IP address, enable the Redundant COM function when both LANs are active. Dual-host redundancy also lets you add a backup PC.

Q: Which operating systems are supported for Real COM and TTY drivers?
A: Real COM and TTY drivers are available for Windows, Linux and macOS.

Q: What operation modes does the CN2650-16-2AC-T support?
A: Supported modes include Real COM, TCP Server, TCP Client, UDP, RFC2217, Terminal, Reverse Telnet, PPP, DRDAS and Redundant COM.
