Description

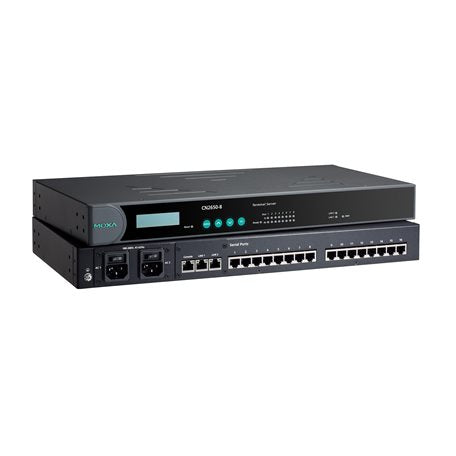

The Moxa CN2650-16-2AC is a rackmount terminal server with 16 RS-232/422/485 serial ports on 8-pin RJ45 connectors, built for connecting serial devices such as consoles, controllers and industrial equipment to an Ethernet network. Dual 10/100 LAN ports and dual AC power inputs provide redundancy for both network and power paths in standard temperature environments.

The CN2600 Series supports a broad range of operation modes, including Real COM, TCP Server, TCP Client, UDP, RFC2217, Terminal, Reverse Telnet, PPP and Redundant COM. Serial settings are flexible, with baudrates from 50 bps to 921.6 kbps, and built-in 1.5 kV magnetic isolation protects the Ethernet ports.

Features

- Dual LAN ports for network redundancy
- Dual AC power inputs for power redundancy
- Supports Real COM, TCP Server, TCP Client, UDP, RFC2217, Terminal and Reverse Telnet modes
- PPP and DRDAS operation modes for remote access and dial-in style connections
- Redundant COM mode for added serial connectivity resilience
- Software-selectable RS-232, RS-422 or RS-485 on each serial port

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x RS-232/422/485 serial ports (8-pin RJ45 connector)
- 2 x 10/100BaseT(X) Ethernet ports (RJ45), dual-LAN
- Dual AC power inputs, 100-240 VAC
- 1.5 kV built-in magnetic isolation protection on Ethernet ports
- Baudrate: 50 bps to 921.6 kbps
- Data bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, DTR/DSR, XON/XOFF
- Rack-mount form factor
- Safety: UL 60950-1; vibration IEC 60068-2-6; freefall IEC 60068-2-32
- International approval: KC

FAQs

Q: How many serial ports does the Moxa CN2650-16-2AC have?
A: It has 16 serial ports, each software-configurable for RS-232, RS-422 or RS-485 and presented on 8-pin RJ45 connectors.

Q: Does this terminal server support network redundancy?
A: Yes. It has two 10/100BaseT(X) Ethernet LAN ports for dual-LAN operation, plus dual AC power inputs for power redundancy.

Q: What operation modes are supported?
A: Supported modes include Real COM, TCP Server, TCP Client, UDP, RFC2217, Terminal, Reverse Telnet, PPP, DRDAS and Redundant COM.

Q: What power input does the CN2650-16-2AC use?
A: It has dual AC power inputs rated at 100-240 VAC, so it can be fed from two separate power sources.

Q: What serial baudrates and settings are supported?
A: Baudrates range from 50 bps to 921.6 kbps, with 5 to 8 data bits, 1, 1.5 or 2 stop bits, selectable parity and RTS/CTS, DTR/DSR or XON/XOFF flow control.

Q: Is this unit rack-mountable?
A: Yes. The CN2650-16-2AC is a rack-mount form factor terminal server intended for installation in equipment racks.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
