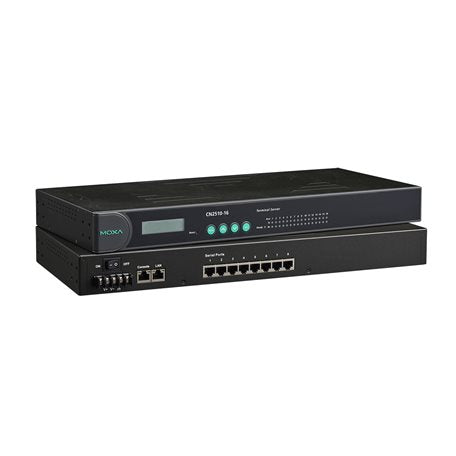

Moxa CN2510-16-48V | CN2510 16-Port RS-232 Terminal Server, ±48 VDC, 1U

Authorised Moxa Partner

SKU:CN2510-16-48V

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa CN2510-16-48V is a 16-port RS-232 terminal server for centralised console management of network and telecom equipment. Each serial console port connects over a 10/100 Ethernet link, giving administrators network access to switches, routers and other devices from one rackmounted unit. The ±48 VDC power input suits telecom and data room environments with DC power plants.

The 1U, 19-inch metal chassis fits standard racks and includes an LCD control panel for on-site management. Real COM and TTY drivers for Windows, Linux and macOS, RADIUS authentication, PPP/SLIP support and a dial-back function make it a practical choice for secure out-of-band serial access across multi-vendor infrastructure.

Features

- LCD control panel for easy on-site management
- Supports up to 16 dial-in users when operating as a standalone remote access server
- Supports PPP/SLIP with RADIUS authentication and RIP I/II routing protocols
- Dial-back function for secure out-of-band dial-up management
- Real COM and TTY drivers for Windows, Linux and macOS
- Full modem control signals supported
- 48 VDC input for telecom applications

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x RS-232 serial ports (8-pin RJ45)
- 1 x 10/100BaseT(X) Ethernet port (RJ45)
- Serial baudrate 50 bps to 921.6 kbps
- Data bits 5/6/7/8; stop bits 1/1.5/2; parity None/Even/Odd/Space/Mark
- Flow control: None, RTS/CTS, XON/XOFF
- Operation mode: Terminal mode
- Power input: ±48 VDC (38 to 72 VDC, -38 to -72 VDC)
- Input current: 180 mA @ 48 VDC
- Metal housing, 19-inch rack mounting (1U)
- Dimensions: 440 x 198 x 45 mm (17.3 x 7.8 x 1.77 in)
- Protocols: TCP/IP, UDP, DHCP Client, RIP v1/v2, Static Route, MIB-II
- Security: RADIUS authentication

FAQs

Q: What power input does the CN2510-16-48V use?
A: It uses a ±48 VDC input (38 to 72 VDC or -38 to -72 VDC) with a typical current draw of 180 mA at 48 VDC, suited to telecom DC power systems.

Q: How many serial devices can it manage?
A: It provides 16 RS-232 serial ports on 8-pin RJ45 connectors, so it can manage the console ports of up to 16 devices from one unit.

Q: Which operating systems are supported by the drivers?
A: Real COM and TTY drivers are available for Windows, Linux and macOS.

Q: Does it support secure remote access?
A: Yes. It supports RADIUS authentication, PPP/SLIP and a dial-back function for secure out-of-band dial-up management.

Q: How is it mounted?
A: It has a metal 1U chassis designed for 19-inch rack mounting, measuring 440 x 198 x 45 mm.

Q: What serial settings are supported?
A: Baudrates range from 50 bps to 921.6 kbps, with 5/6/7/8 data bits, 1/1.5/2 stop bits, selectable parity and None, RTS/CTS or XON/XOFF flow control.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
