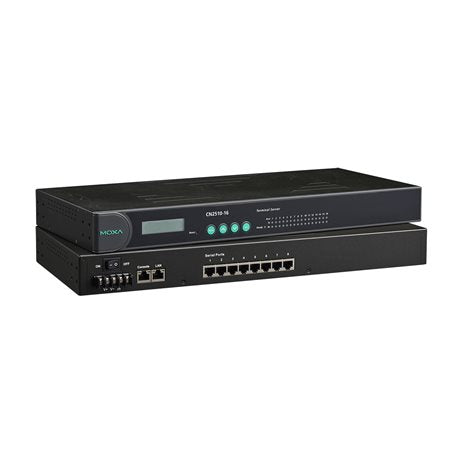

Moxa CN2510-16 | CN2510 16-Port RS-232 Terminal Server, 100-240 VAC, 1U

Authorised Moxa Partner

SKU:CN2510-16

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa CN2510-16 is a 1U rackmount 16-port RS-232 terminal server with a 100-240 VAC power input, built for console management of serial devices such as routers, switches and UNIX servers over Ethernet. It provides 16 RS-232 ports on 8-pin RJ45 connectors and a 10/100BaseT(X) Ethernet uplink, with terminal mode operation for Telnet-based access.

Authentication can be handled against an internal database or a RADIUS server, and dial-back support secures out-of-band dial-up management. Real COM, Real TTY and Fixed TTY drivers cover Windows, Linux and Unix hosts, while the front LCD control panel simplifies on-site configuration in the equipment rack.

Features

- LCD control panel for easy on-site management
- Supports up to 16 dial-in users when operating as a standalone remote
- Authentication against an internal database or a RADIUS server
- Dial-back function for secure out-of-band dial-up management
- Full modem control signals supported
- Real COM, Real TTY and Fixed TTY drivers for Windows, Linux and Unix
- Static route and RIP v1/v2 unicast routing

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x RS-232 serial ports (8-pin RJ45)
- 1 x 10/100BaseT(X) Ethernet port (RJ45)
- Terminal mode operation
- Baudrate 50 bps to 921.6 kbps
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Input voltage 100-240 VAC (47-63 Hz), 125 mA @ 110 VAC
- Metal housing, 19-inch rack mounting (1U)
- Dimensions 440 x 198 x 45 mm
- Weight 2,700 g
- MTBF 654,195 hrs (Telcordia)
- Safety: EN 60950-1, UL 60950-1

FAQs

Q: How many serial ports does the Moxa CN2510-16 have?
A: It provides 16 RS-232 serial ports on 8-pin RJ45 connectors, along with one 10/100BaseT(X) Ethernet port.

Q: What is the CN2510-16 typically used for?
A: It is used for out-of-band console management of serial devices such as routers, switches and UNIX servers, accessed over the network using Telnet in terminal mode.

Q: What power input does the CN2510-16 require?
A: It accepts 100-240 VAC at 47-63 Hz, drawing 125 mA at 110 VAC, so it suits mains supplies without a separate adapter.

Q: Does it support secure user authentication?
A: Yes. Users can be authenticated against an internal database or a RADIUS server, and a dial-back function is available for secure dial-up management.

Q: Which operating systems are supported by the drivers?
A: Real COM, Real TTY and Fixed TTY drivers are available for Windows, Linux and Unix environments.

Q: Can the CN2510-16 be rack mounted?
A: Yes. It has a metal housing in a 1U form factor for 19-inch rack mounting, measuring 440 x 198 x 45 mm.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
