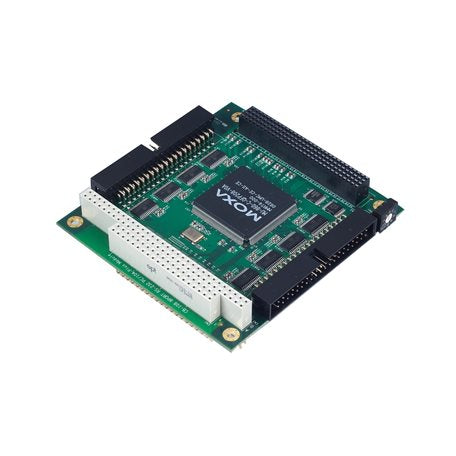

Moxa CB-108-T | CB-108 8-Port RS-232 PC/104-Plus Serial Board, -40 to 85°C

Authorised Moxa Partner

SKU:CB-108-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa CB-108-T is an 8-port RS-232 multiport serial board for PC/104-Plus CPU boards, communicating over the PC/104-Plus (PCI) bus. As the wide-temperature model, it is rated for -40 to 85°C operation, making it suited to industrial automation, transport and field-deployed embedded systems where standard-temperature serial boards are not viable.

Built around four 16C550C-compatible communication controllers with 128-byte FIFOs, the board supports baudrates from 50 bps up to 921.6 kbps and on-chip hardware and software flow control. Onboard Tx and Rx LEDs for each port simplify commissioning and troubleshooting, and up to 8 boards can be installed in a single PC. Windows, Windows CE 5.0/6.0 and Windows XP Embedded are supported, with optional DB9 and DB25 connection cables available.

Features

- 921.6 kbps maximum baudrate for fast data transmission
- On-chip hardware and software flow control
- Onboard Tx and Rx LED indicators for each port
- Supports Windows, Windows CE 5.0/6.0 and Windows XP Embedded
- Wide-temperature model for -40 to 85°C environments
- Easy maintenance with built-in LEDs and management software
- Optional DB9 and DB25 connection cables available

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x RS-232 ports
- PC/104-Plus bus interface
- Communication controller: 16C550C or compatible x 4
- Connector: 40-pin box header
- Baudrate: 50 bps to 921.6 kbps
- 128-byte FIFO
- Data bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, XON/XOFF
- Serial signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Input voltage: 5 VDC; input current: 153 mA @ 5 VDC
- Dimensions: 90 x 96 mm (3.54 x 3.78 in)
- Operating temperature: -40 to 85°C (-40 to 185°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Up to 8 boards per PC

FAQs

Q: What bus does the CB-108-T use?
A: The CB-108-T uses the PC/104-Plus (PCI) bus interface, so it requires a PC/104-Plus compatible CPU board.

Q: What is the operating temperature range?
A: The CB-108-T is the wide-temperature model, rated for operation from -40 to 85°C (-40 to 185°F).

Q: How many serial ports does it provide and what interface type?
A: It provides 8 RS-232 serial ports, with serial signals TxD, RxD, RTS, CTS, DTR, DSR, DCD and GND.

Q: What is the maximum baudrate?
A: Baudrates range from 50 bps up to 921.6 kbps, with 128-byte FIFOs and hardware and software flow control.

Q: Can I install more than one board in a system?
A: Yes, up to 8 boards can be used in a single PC.

Q: Which operating systems are supported?
A: Windows, Windows CE 5.0/6.0 and Windows XP Embedded are supported.

Q: How do I connect devices to the ports?
A: The board uses a 40-pin box header connector, and optional DB9 and DB25 connection cables are available.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
