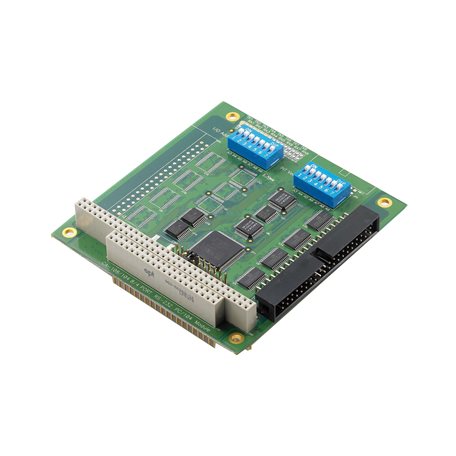

Moxa CA-108 | 8-Port RS-232 PC/104 Serial Board, 0 to 55°C

Authorised Moxa Partner

SKU:CA-108

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The CA-108 is an 8-port RS-232 PC/104 multiport serial board for adding serial connectivity to PC/104 CPU boards in industrial and embedded systems. This standard temperature model operates from 0 to 55°C and supports a maximum baudrate of 921.6 kbps on each port.

Onboard Tx and Rx LEDs for every port simplify diagnostics, while hardware and software flow control and jumper and DIP switch configuration of IRQ and I/O settings make integration straightforward. Driver support covers Windows CE 5.0/6.0 and Windows XP Embedded. For deployments needing a wider operating range, the CA-108-T variant is available.

Features

- 921.6 kbps maximum baudrate for fast data transmission
- On-chip hardware and software flow control
- IRQ and I/O settings selectable via jumper and DIP switch
- Onboard Tx and Rx LED indicators for each port
- Supports Windows CE 5.0/6.0 and Windows XP Embedded
- Compact 90 x 96 mm PC/104 form factor

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x RS-232 serial ports
- PC/104 bus interface
- Maximum baudrate 921.6 kbps
- Input voltage 5 VDC
- Input current 210 mA @ 5 VDC
- Dimensions 90 x 96 mm (3.54 x 3.78 in)
- Operating temperature 0 to 55°C (32 to 131°F)
- Storage temperature -40 to 85°C (-40 to 185°F)
- Ambient relative humidity 5 to 95% (non-condensing)
- Built-in Tx/Rx LEDs for each port
- MTBF 897,459 hrs (Telcordia)
- RoHS, CRoHS, WEEE compliant

FAQs

Q: What type of serial ports does the CA-108 provide?
A: The CA-108 provides 8 x RS-232 serial ports on a PC/104 bus board, with a maximum baudrate of 921.6 kbps.

Q: What operating temperature range does this model support?
A: This standard CA-108 operates from 0 to 55°C (32 to 131°F). For -40 to 85°C operation, the wide-temperature CA-108-T variant is the alternative.

Q: Which operating systems are supported?
A: The CA-108 supports Windows CE 5.0/6.0 and Windows XP Embedded.

Q: How is the board powered?
A: It runs from a 5 VDC input and draws 210 mA at 5 VDC, supplied through the PC/104 bus.

Q: How are IRQ and I/O addresses configured?
A: IRQ and I/O settings are selected using onboard jumpers and a DIP switch, so no software configuration is required to set them.

Q: Does the board include port status indicators?
A: Yes, each of the 8 ports has built-in Tx and Rx LEDs for quick visual monitoring of serial traffic.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
