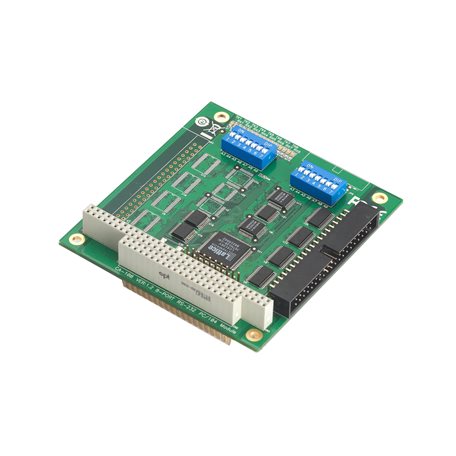

• Moxa CA-104 4-port RS-232 PC/104 module with green PCB, blue connectors, black ICs
1 1

Moxa

Moxa CA-104 | 4-Port RS-232 PC/104 Serial Board, 0-55°C

Moxa CA-104 | 4-Port RS-232 PC/104 Serial Board, 0-55°C

Authorised Moxa Partner

CA-104

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The CA-104 is a 4-port RS-232 PC/104 multiport serial board for embedded and industrial PC/104 CPU boards. This standard temperature model operates from 0 to 55°C and supports baudrates up to 921.6 kbps, with 16C550C compatible UARTs and a 64-byte FIFO on each port for dependable serial communication.

IRQ and I/O settings are selected by jumper and DIP switch, and up to 8 boards can be installed in a single PC. Each port has onboard Tx and Rx LEDs for simple troubleshooting, and driver support covers DOS, Windows, Windows Embedded, Linux, FreeBSD and QNX. Optional DB9 and DB25 cables connect the board to serial devices.

Features

- 921.6 kbps maximum baudrate for fast data transmission
- On-chip software flow control
- IRQ and I/O settings are jumper and DIP switch selectable
- Onboard Tx and Rx LED indicators for each port
- Drivers for DOS, Windows 95 through 10 (x86/x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded, Linux 2.4.x/2.6.x, FreeBSD 4.x and QNX 4
- Supports up to 8 boards in one PC for scalable serial port expansion

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232 ports
- PC/104 bus
- Communication controller: 16C550C or compatible x 4
- 40-pin box header connector
- Baudrate: 50 bps to 921.6 kbps
- 64-byte FIFO
- IRQ: 3, 4, 5, 6, 7, 9, 10, 11, 12, 15 (shared for all ports)
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, XON/XOFF
- Serial signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Maximum 8 boards per PC
- Input: 5 VDC, 210 mA
- Dimensions: 90 x 96 mm (3.54 x 3.78 in)
- Operating temperature: 0 to 55°C

FAQs

Q: What type of host does the CA-104 work with?
A: It is designed for PC/104 CPU boards that accept the PC/104 expansion interface and uses the PC/104 bus.

Q: What serial interface and port count does it provide?
A: It provides 4 RS-232 ports, supporting TxD, RxD, RTS, CTS, DTR, DSR, DCD and GND signals.

Q: What is the maximum baudrate?
A: Each port supports baudrates from 50 bps up to 921.6 kbps, with a 64-byte FIFO.

Q: How many CA-104 boards can be installed in one PC?
A: A maximum of 8 boards can be installed in a single PC.

Q: What operating systems are supported?
A: Drivers are available for DOS, Windows 95 through 10 (x86/x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded, Linux 2.4.x/2.6.x, FreeBSD 4.x and QNX 4.

Q: What operating temperature does this model support?
A: This standard model operates from 0 to 55°C. A wide-temperature -40 to 85°C model, the CA-104-T, is also offered for harsher environments.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
