Arista DCS-7508R-FM | 7500R Series Fabric Module, 7508/7508N, Slots 1-6

Arista DCS-7508R-FM | 7500R Series Fabric Module, 7508/7508N, Slots 1-6

Authorised Arista Partner

SKU:DCS-7508R-FM

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

End of life
This item has been replaced by DCS-7508R3-FM.

Description

The Arista DCS-7508R-FM is a 7500R Series fabric module for the 7508 and 7508N modular chassis, required in fabric slots 1-6. It interconnects all line cards in a non-blocking architecture, delivering up to 25 Tbps of fabric capacity per module, and includes an integrated fan assembly for cooling.

Fabric modules operate active-active with 5+1 redundancy and are hot-swappable with zero performance degradation. Packets are spread across the fabric links, and the self-healing fabric uses virtual output queueing with a distributed scheduler to keep traffic flowing in large data centre deployments.

Features

- Interconnects all line cards in a non-blocking architecture
- Packets are spread across the fabric links
- Active-active fabric modules with N+1 redundancy
- Hot-swappable with zero performance degradation
- Integrated fan assembly for flexible and redundant cooling
- Self-healing fabric with virtual output queueing and distributed scheduler

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

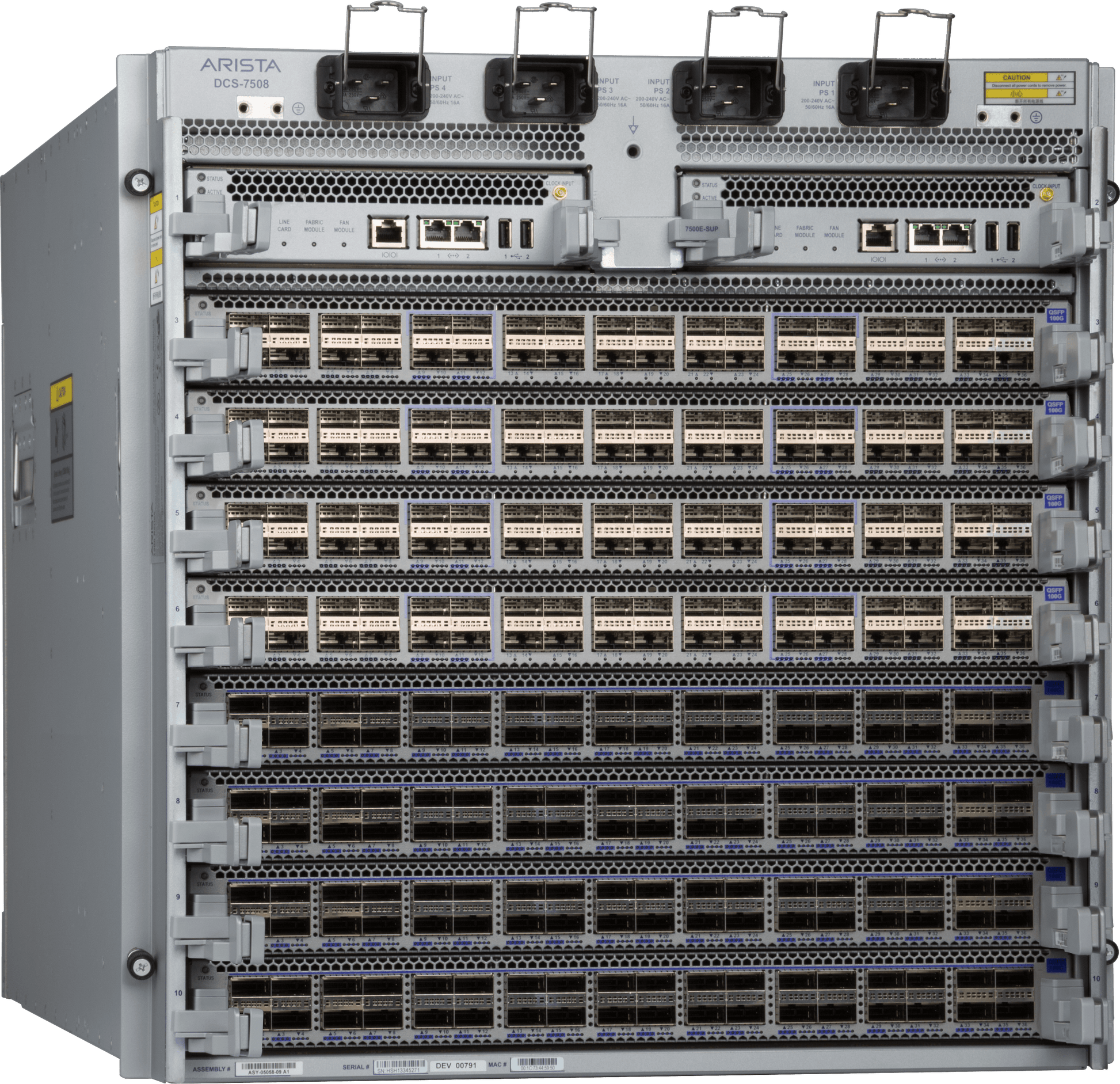

- For DCS-7508 and DCS-7508N chassis
- Required for fabric slots 1-6
- Up to 25 Tbps fabric capacity per fabric module
- Redundancy: 5+1
- Fabric module slots (7508N chassis): 6
- Integrated fan module
- Typical power 224W, maximum 298W
- Dimensions (HxWxD): 2.5 x 8.5 x 10.25 in (6.4 x 21.6 x 26 cm)
- Weight: 13.4 lbs (6.1 kg)

FAQs

Q: Which chassis is the DCS-7508R-FM compatible with?
A: It is designed for the Arista DCS-7508 and DCS-7508N chassis in the 7500R Series.

Q: Which fabric slots does this module go in?
A: It is required in fabric slots 1-6 of the 7508/7508N chassis.

Q: How much fabric capacity does each module provide?
A: Each fabric module provides up to 25 Tbps of fabric capacity in a non-blocking architecture.

Q: What redundancy does the fabric offer?
A: The fabric modules run active-active with 5+1 redundancy, so the chassis keeps operating if a module is removed or fails.

Q: Can the module be replaced while the chassis is running?
A: Yes. Fabric modules are hot-swappable with zero performance degradation.

Q: Does the module include its own cooling?
A: Yes. It has an integrated fan module that provides flexible and redundant cooling for the chassis.
