• Aruba Instant On JL813A 24G PoE managed switch, 24 ports, 2 SFP
1 1

Aruba Instant On

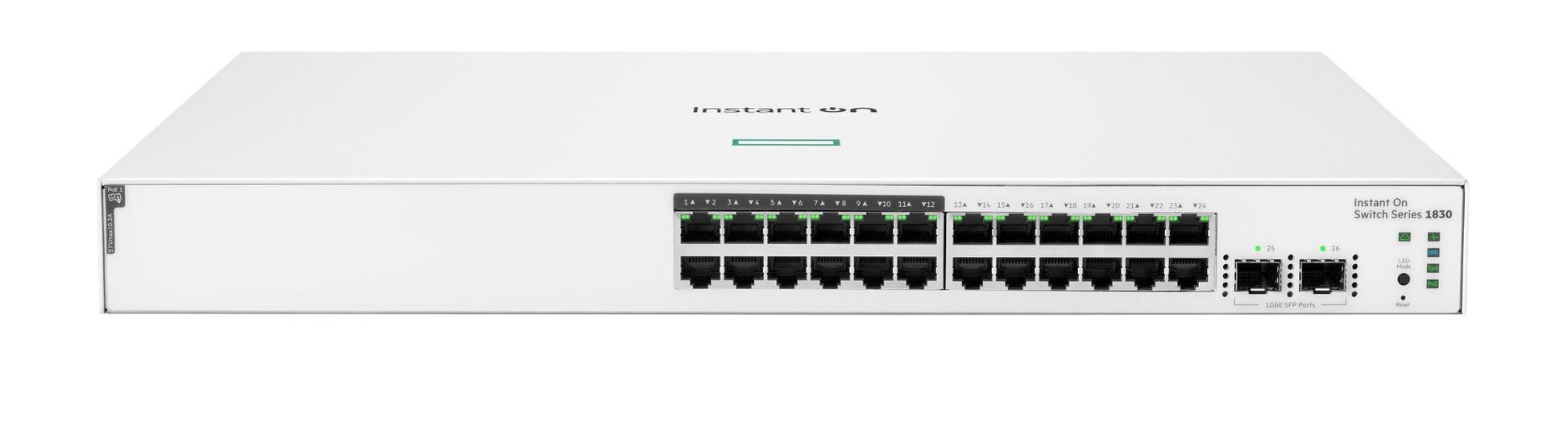

Aruba Instant On JL813A | Instant On 1830 24-Port Gigabit Switch, 12x Class 4 PoE, 2 SFP, 195W

Aruba Instant On JL813A | Instant On 1830 24-Port Gigabit Switch, 12x Class 4 PoE, 2 SFP, 195W

Authorised Aruba Instant On Partner

JL813A

In stock:37

$645.14 inc. GST
$586.49 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Aruba Instant On JL813A is a smart-managed Layer 2 24-port Gigabit PoE switch built for small business networks. It provides 24 x 10/100/1000 RJ-45 ports, 12 of which deliver Class 4 PoE from a 195W budget, plus 2 x 1GbE SFP ports for fibre uplinks. It can be managed through the Instant On cloud using the mobile app or web portal, or through a local web GUI.

The fan-less 1U rack-mountable design offers 52 Gbps switching capacity and a 16,000-entry MAC address table, with 512 MB SDRAM and 256 MB flash on an ARM Cortex-A9 CPU. Class 4 PoE suits IP phones, cameras and wireless access points, and PoE scheduling lets you control when ports supply power. A 2-post rack kit is included.

Features

- Smart-managed Layer 2 switching
- Management via the Instant On mobile app, web portal or local web GUI
- Class 4 PoE for IP phones, cameras and access points
- PoE scheduling to set the days and times that ports supply power
- Dedicated 1G SFP fibre uplinks to avoid bottlenecks
- 2-post rack kit included

Warranty

• Access Points & Secure Gateways: 2-year warranty
• Instant On Switches: Limited lifetime warranty
• Transceivers & DACs: 3-year warranty
Extended Warranty Options:
Extended coverage is available via IP Trading. Contact us to tailor a plan to your Aruba Instant On deployment.
https://instant-on.hpe.com/files/FAQ_AIO_Warranty-Support-Services.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 24 x 10/100/1000 RJ-45 ports, 12 of them Class 4 PoE
- 2 x 1GbE SFP ports
- PoE budget: 195W (Class 4)
- Switching capacity: 52 Gbps
- Throughput: 38.68 Mpps
- CPU: ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash
- Packet buffer: 1.5 MB
- MAC address table: 16,000 entries
- Latency: 2.8 µs at 1Gbps, 5.2 µs at 100Mbps
- Jumbo frames up to 9216 bytes
- Input voltage: 100-240 VAC, 50-60Hz, internal PSU
- Power consumption: maximum 244.6W at 100-127V, idle 14.5W
- Dimensions: 25.3 x 44.3 x 4.39 cm (1U rack-mountable), weight 3.47 kg
- Operating temperature: 0-40°C
- Management: Instant On Cloud, web browser, SNMP
- Fan-less design

FAQs

Q: How many ports on the JL813A deliver PoE?
A: 12 of the 24 Gigabit RJ-45 ports provide Class 4 PoE, sharing a total PoE budget of 195W.

Q: How can the JL813A be managed?
A: It can be managed through the Instant On cloud using the mobile app or web portal, or through a local web GUI. SNMP is also supported.

Q: Does this switch have fibre uplink ports?
A: Yes. It has 2 x 1GbE SFP ports for fibre uplinks, so uplinks do not compete with the copper access ports.

Q: Is the JL813A a Layer 2 or Layer 3 switch?
A: It is a smart-managed Layer 2 switch, designed for small business deployments.

Q: Can the JL813A be rack mounted?
A: Yes. It is a 1U rack-mountable switch and a 2-post rack kit is included.

Q: Does the switch have a fan?
A: No. It uses a fan-less design, which keeps operation quiet in office environments.
