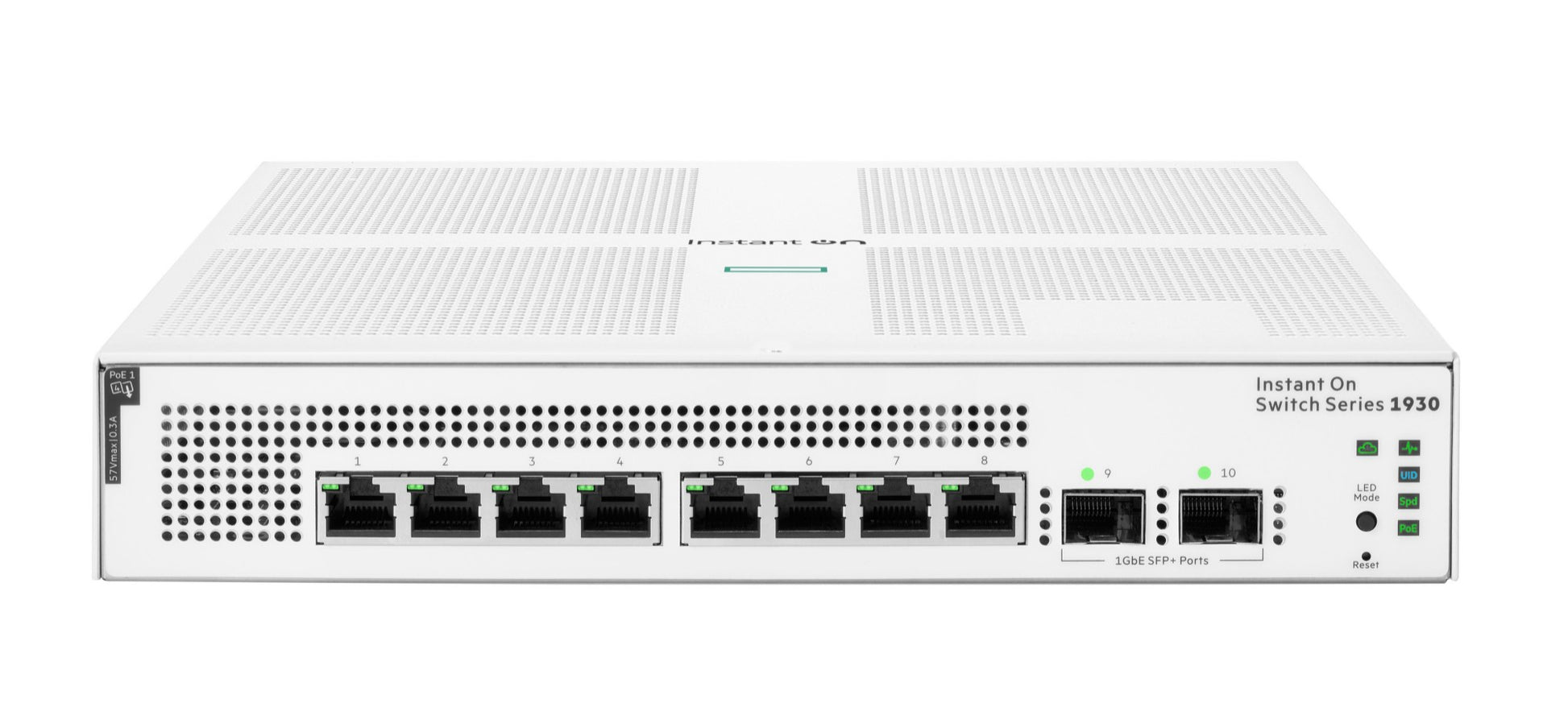

• Aruba Instant On JL681A 8G PoE+ switch with ethernet ports and lights
1 1

Aruba Instant On

Aruba Instant On JL681A | Instant On 1930 8-Port Gigabit PoE+ Switch, 124W, 2x SFP

Aruba Instant On JL681A | Instant On 1930 8-Port Gigabit PoE+ Switch, 124W, 2x SFP

Authorised Aruba Instant On Partner

JL681A

In stock:70

$404.79 inc. GST
$367.99 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Aruba Instant On JL681A is an 8-port Gigabit PoE+ smart-managed switch with 124W of Class 4 PoE power budget and 2 x SFP uplinks. It suits small businesses, retail sites and branch offices that need to power access points, IP phones, cameras and IoT devices from a single compact 1U unit. Management is simple, using the Instant On mobile app and web portal or the local web GUI.

This Layer 2+ smart-managed model supports VLANs, link aggregation, spanning tree protocols and IEEE 802.1X access control, with Energy Efficient Ethernet support. It integrates with Instant On indoor and outdoor access points for easy plug-and-play deployment and a consistent management experience across the network.

Features

- Instant On cloud management through the mobile app and web portal, plus local web GUI option
- Layer 2+ smart-managed features including VLANs, link aggregation, spanning tree protocols and IEEE 802.1X access control
- Class 4 PoE (PoE+) to power access points, IP phones, cameras and IoT devices
- Energy Efficient Ethernet support
- Integrates with Instant On indoor and outdoor access points
- Easy plug-and-play deployment for small businesses

Warranty

• Access Points & Secure Gateways: 2-year warranty
• Instant On Switches: Limited lifetime warranty
• Transceivers & DACs: 3-year warranty
Extended Warranty Options:
Extended coverage is available via IP Trading. Contact us to tailor a plan to your Aruba Instant On deployment.
https://instant-on.hpe.com/files/FAQ_AIO_Warranty-Support-Services.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 8 x RJ-45 autosensing 10/100/1000 Class 4 PoE (802.3at PoE+) ports
- 2 x SFP 1GbE ports
- PoE power budget: 124 W Class 4 PoE
- Switching capacity: 20 Gbps
- Throughput: 14.88 Mpps
- Processor and memory: ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash, 1.5 MB packet buffer
- Power consumption: 150.2 W maximum, 11.7 W idle
- Internal power supply, 100-127 / 200-240 VAC input
- Dimensions: 25.4 x 25.4 x 4.39 cm, 1U height
- Weight: 1.16 kg
- Operating temperature: 0°C to 40°C

FAQs

Q: How many PoE ports does the JL681A have and what is the power budget?
A: It has 8 Class 4 PoE+ (802.3at) Gigabit ports sharing a 124W PoE power budget.

Q: What uplink options does this switch offer?
A: It provides 2 x SFP 1GbE ports for fibre or other SFP-based uplinks.

Q: How is the JL681A managed?
A: It can be managed through the Instant On mobile app and web portal, or through the local web GUI.

Q: Does it work with Instant On access points?
A: Yes, it integrates with Instant On indoor and outdoor access points for a unified, easy-to-deploy network.

Q: Which Layer 2 features are supported?
A: It supports VLANs, link aggregation, spanning tree protocols and IEEE 802.1X access control as a Layer 2+ smart-managed switch.

Q: Is it rack mountable?
A: It is a 1U-height unit measuring 25.4 x 25.4 x 4.39 cm, with an internal power supply.
