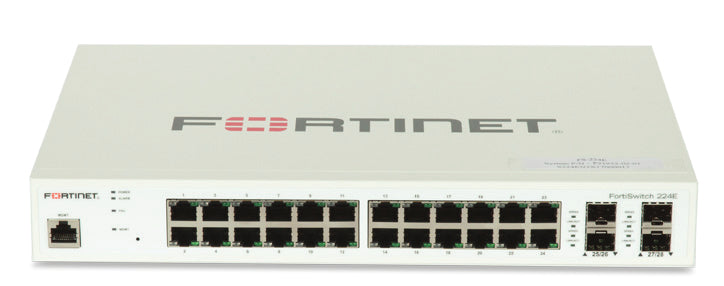

• White Fortinet FortiSwitch 224E with 24 GE RJ45 ports and LEDs
1 1

Fortinet

Fortinet FS-224E | 24-Port Gigabit Switch, 4x GE SFP, non-PoE, Layer 2/3

Fortinet FS-224E | 24-Port Gigabit Switch, 4x GE SFP, non-PoE, Layer 2/3

Authorised Fortinet Partner

FS-224E

Stock Status: Enquire

$1,446.77 inc. GST
$1,315.25 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Fortinet FS-224E is a 24-port Gigabit Layer 2/3 access switch with 24 GE RJ45 ports and 4 GE SFP uplink ports. This is the non-PoE model, suited to deployments where connected devices are powered separately. It can be managed from a FortiGate over FortiLink as part of the Fortinet Security Fabric, or run as a standalone switch.

Housed in a fanless 1 RU chassis for silent rack operation, the FS-224E delivers 56 Gbps of switching capacity and 83 Mpps forwarding rate. A dedicated 10/100 management port and an RJ-45 serial console port are included, and Layer 2/3 features such as VLANs, STP/RSTP/MSTP, LACP, IGMP snooping and QoS are supported.

Features

- FortiLink management from a FortiGate, with the option to run standalone
- Stackable: up to 300 switches per FortiGate, depending on model
- Wire-speed switching with store-and-forward forwarding mode
- Fanless, silent operation
- Layer 2/3 features including VLANs, STP/RSTP/MSTP, LACP, IGMP snooping and QoS
- Integrates with the Fortinet Security Fabric, with NAC included at no extra licence cost

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 24 x GE RJ45 ports
- 4 x GE SFP ports
- 1 x dedicated 10/100 management port
- 1 x RJ-45 serial console port
- No PoE (non-PoE model)
- 56 Gbps switching capacity (duplex)
- 83 Mpps forwarding rate (duplex)
- 16 K MAC address storage
- 4 K VLANs supported
- Link aggregation group size: 8
- 1.5 MB packet buffers, 512 MB DRAM, 128 MB flash
- Network latency under 1 µs
- 1 RU rack mount, fanless
- Dimensions (H x D x W): 44 x 230 x 330 mm
- Power: 100-240V AC, 50-60 Hz, built-in AC power supply
- Power consumption: 17.2 W average, 17.3 W maximum
- Operating temperature: 0-50 C

FAQs

Q: Does the FS-224E support PoE?
A: No. The FS-224E is a non-PoE model with 24 GE RJ45 ports and 4 GE SFP ports. Devices that need PoE require a separate power source or a PoE-capable FortiSwitch.

Q: Can the FS-224E be managed from a FortiGate?
A: Yes. It can be managed from a FortiGate through FortiLink as part of the Fortinet Security Fabric, or it can be run as a standalone switch.

Q: What uplink options does it have?
A: It provides 4 x GE SFP ports for uplinks or fibre connections, in addition to the 24 x GE RJ45 access ports.

Q: Is the FS-224E fanless?
A: Yes. It uses a fanless 1 RU chassis, so it runs silently and suits quiet rack or wiring closet environments.

Q: What switching performance does it offer?
A: The FS-224E delivers 56 Gbps of duplex switching capacity and 83 Mpps forwarding rate, with network latency under 1 µs.

Q: What management ports are included?
A: It includes one dedicated 10/100 management port and one RJ-45 serial console port.
