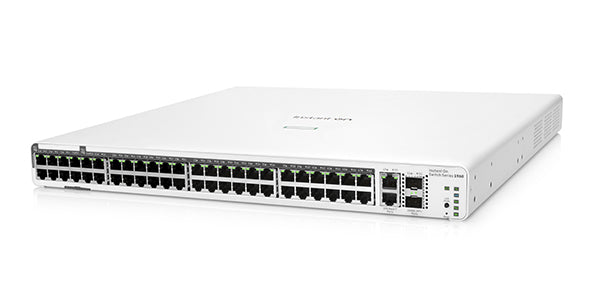

Aruba Instant On JL809A | Instant On 1960 48-Port Gigabit PoE+ Switch, 600W, 2x 10G

Authorised Aruba Instant On Partner

SKU:JL809A

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Instant On 1960 48-port Gigabit PoE+ switch is a stackable, smart-managed switch built for small and mid-sized business networks that need high PoE capacity and fast uplinks. It provides 48 auto-sensing 10/100/1000 Mbps RJ-45 ports (40 PoE+ and 8 PoE++ Class 6), a 600 W PoE budget, and four 10GbE uplinks made up of 2 x 10GBASE-T and 2 x SFP+ ports.

With 176 Gbps of switching capacity and 131 Mpps throughput, it suits access-layer deployments with IP phones, wireless access points and cameras. Up to four switches can be stacked and managed as a single entity through the Instant On mobile app or cloud portal, and the switch is rack mountable.

Features

- Cloud-managed stacking of up to four Instant On 1960 switches, managed as a single entity
- Two 10GBASE-T ports deliver 10GbE over Cat 6a copper up to 100 m
- VLANs and Access Control Lists to limit what data users can see
- 802.1X with RADIUS authentication
- Automatic denial-of-service (DoS) monitoring and protection
- Luggage tag for easy cloud onboarding
- Mobile app automatically detects stack members for easy setup

Warranty

• Access Points & Secure Gateways: 2-year warranty
• Instant On Switches: Limited lifetime warranty
• Transceivers & DACs: 3-year warranty
Extended Warranty Options:
Extended coverage is available via IP Trading. Contact us to tailor a plan to your Aruba Instant On deployment.
https://instant-on.hpe.com/files/FAQ_AIO_Warranty-Support-Services.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 48 x RJ-45 10/100/1000 Mbps auto-sensing ports (40 PoE+ and 8 PoE++ Class 6)
- 2 x 10GBASE-T ports
- 2 x SFP+ 10GbE ports
- 600 W total PoE budget (up to 480 W of Class 6 or 600 W of Class 4 PoE)
- 176 Gbps switching capacity
- 131 Mpps throughput
- Stackable up to 4 switches
- Processor: Single Core ARMv7 Cortex-A9 @ 800 MHz
- Memory: 1 GB DDR3
- MAC address table size: 16,000 entries
- Management: Instant On mobile app and cloud portal
- Rack mountable

FAQs

Q: How many PoE ports does this switch have?
A: All 48 Gigabit RJ-45 ports support PoE: 40 are PoE+ and 8 are PoE++ Class 6. The total PoE budget is 600 W.

Q: What uplink options are available?
A: It has four 10GbE uplinks: 2 x 10GBASE-T copper ports and 2 x SFP+ ports.

Q: Can this switch be stacked?
A: Yes. Up to four Instant On 1960 switches can be stacked and managed as a single entity, and the mobile app automatically detects stack members during setup.

Q: How is the switch managed?
A: It is managed through the Instant On mobile app or the cloud portal. A luggage tag simplifies cloud onboarding.

Q: What is the PoE power available by class?
A: The 600 W budget supports up to 480 W of Class 6 PoE or 600 W of Class 4 PoE.

Q: Is it rack mountable?
A: Yes, the switch is rack mountable for standard equipment racks.
