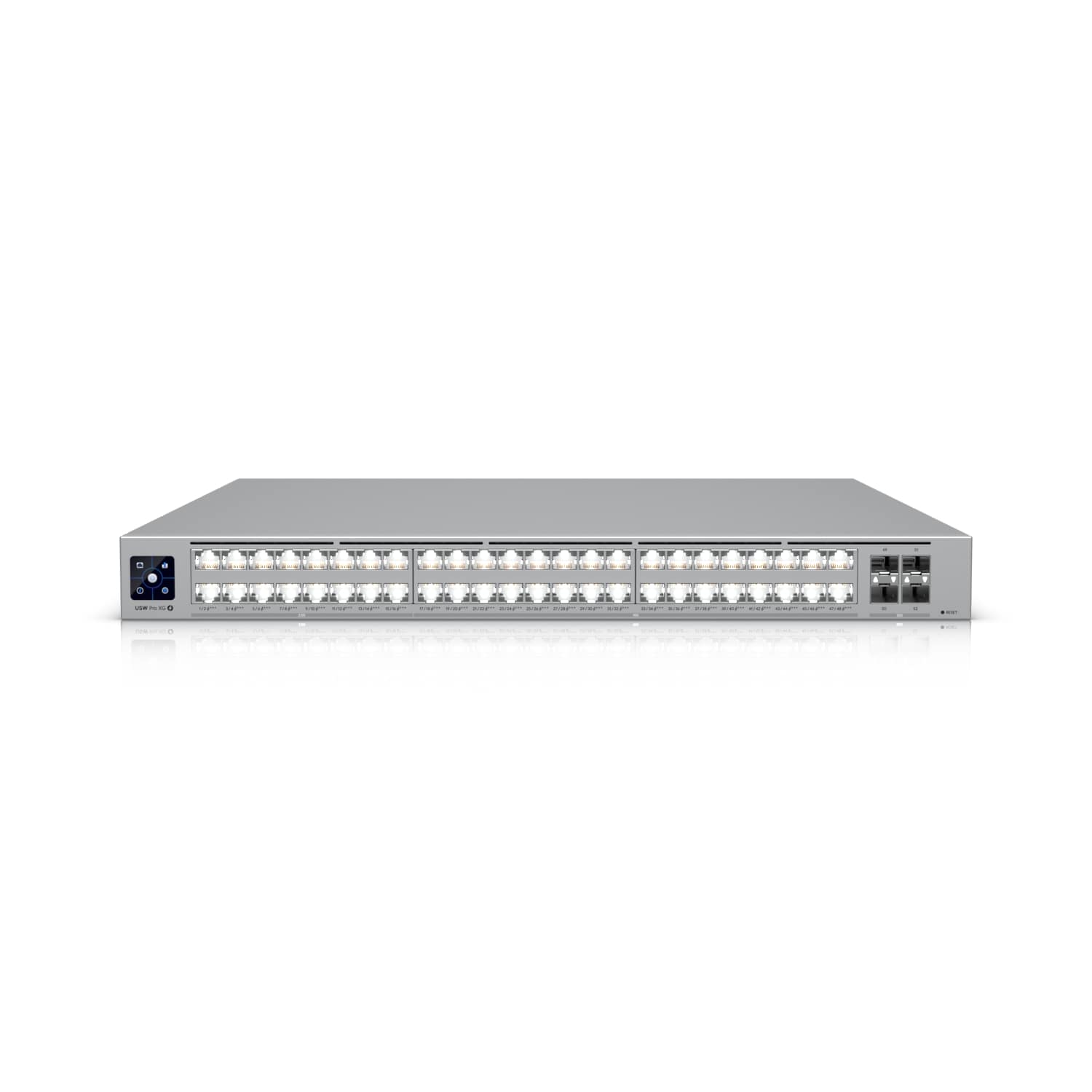

Ubiquiti USW-PRO-XG-48-POE | UniFi Pro XG 48 PoE Layer 3 Switch, 16x 2.5GbE, 4x 25G, 32x 10GbE

Name: Ubiquiti USW-PRO-XG-48-POE | UniFi Pro XG 48 PoE Layer 3 Switch, 16x 2.5GbE, 4x 25G, 32x 10GbE
Brand: Ubiquiti
SKU: USW-Pro-XG-48-PoE
Price: 4490.75 AUD
Availability: InStock

Authorised Ubiquiti Partner

SKU:USW-Pro-XG-48-PoE

In stock:30

$4,490.75 inc. GST

$4,082.50 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The Ubiquiti UniFi Pro XG 48 PoE is a professional-grade 1U Layer 3 managed switch with 32x 10GbE and 16x 2.5GbE RJ45 ports, all supporting PoE+++ at up to 90W per port, plus 4x 25G SFP28 ports. With a 1080W PoE budget on 200-240V AC input, it suits high-density deployments powering Wi-Fi 7 access points, cameras and Pro AV endpoints from a single rack unit.

It delivers 920 Gbps switching capacity (460 Gbps non-blocking) and 684 Mpps forwarding, with inter-VLAN routing, Etherlighting port status and a 1.3-inch touchscreen for on-device status and configuration. Redundant DC power backup is supported through the UniFi SmartPower RPS, and the switch is managed through the UniFi Network application.

Features

- Layer 3 routing with inter-VLAN routing, static routes and DHCP server/relay
- Etherlighting for visual port status
- Pro AV profiles for Dante, Q-SYS, NDI, SDVoE, AES67, Crestron and others
- 1.3-inch touchscreen LCM for on-device status and configuration
- Redundant DC power backup via UniFi SmartPower RPS
- Managed through the UniFi Network application
- Layer 2 and security features including IGMP snooping, 802.1X, DHCP snooping, port isolation, ACLs, storm control, port mirroring, jumbo frames, LLDP-MED, voice VLAN and loop protection

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 32 x 10GbE RJ45 PoE+++ ports (10G/5G/2.5G/1G/100M/10M)
- 16 x 2.5GbE RJ45 PoE+++ ports (2.5G/1G/100M/10M)
- 4 x 25G SFP28 ports (25G/10G/1G)
- Max PoE output: up to 90W per port (PoE+++)
- Total PoE budget: 1080W (200-240V AC) / 972W (100-120V AC)
- Switching capacity: 920 Gbps (460 Gbps non-blocking)
- Forwarding rate: 684 Mpps
- Supported VLANs: 1,000
- Packet buffer: 8 MB
- Power supply: internal AC/DC 1,350W, universal 100-240V AC input plus USP RPS DC input
- Max power consumption: 200W (excluding PoE output)
- Form factor: 1U rack mount, 442 x 480 x 44 mm, 8.7 kg
- Display: 1.3-inch touchscreen LCM
- Operating temperature: -5 to 40 C
- Certifications: CE, FCC, IC, NDAA compliant

FAQs

Q: How many ports on the USW-Pro-XG-48-PoE support PoE?
A: All 48 RJ45 ports (32x 10GbE and 16x 2.5GbE) support PoE+++ at up to 90W per port, within the total PoE budget.

Q: What is the total PoE budget?
A: The PoE budget is 1080W on 200-240V AC input and 972W on 100-120V AC input.

Q: Does this switch support Layer 3 routing?
A: Yes. It supports Layer 3 switching with inter-VLAN routing, static routes and DHCP server/relay.

Q: What speeds do the SFP28 ports support?
A: The four SFP28 ports support 25G, 10G and 1G modules, suitable for high-speed uplinks or aggregation.

Q: Can it be powered redundantly?
A: Yes. It has an internal AC/DC power supply and a DC input for redundant backup via the UniFi SmartPower RPS.

Q: How is the switch managed?
A: It is managed through the UniFi Network application, with status and basic configuration also available on the 1.3-inch front touchscreen.
