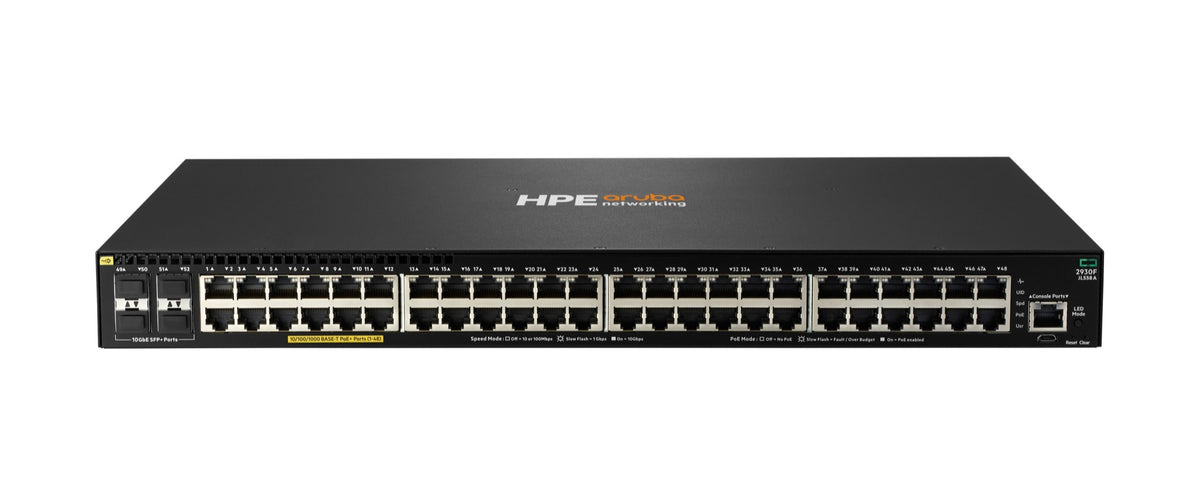

Aruba JL558A | 2930F 48-Port Gigabit PoE+ Switch, 740W, 4x 10G SFP+

Name: Aruba JL558A | 2930F 48-Port Gigabit PoE+ Switch, 740W, 4x 10G SFP+
Brand: Aruba
SKU: JL558A
Price: 8242.34 AUD
Availability: BackOrder

Authorised Aruba Partner

SKU:JL558A

Stock Status: Enquire

$8,242.34 inc. GST

$7,493.04 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The Aruba 2930F 48G PoE+ 4SFP+ 740W is a fixed-configuration Layer 3 managed access switch with 48 Gigabit PoE+ ports and four SFP+ 1/10GbE uplinks. Its 740W PoE+ budget powers IP phones, wireless access points, cameras and IoT devices from a single 1U switch, and RIP and Access OSPF routing support Layer 3 designs at the network edge. It is the non-TAA model, with no software licensing required.

The switch delivers 176 Gbps of switching capacity and up to 112.0 Mpps of throughput, with a 12.38 MB packet buffer and low latency. It can be managed through the CLI, web interface, SNMP, Aruba AirWave or IMC, and an RJ-45 or micro USB console port provides out-of-band access.

Features

- Layer 3 managed switching with RIP and Access OSPF routing
- 10GbE SFP+ uplinks for aggregation and backbone connectivity
- 740W PoE+ budget for phones, access points, cameras and IoT devices
- Robust QoS
- No software licensing required
- Managed via CLI, web interface, SNMP, RMON, Aruba AirWave or IMC
- Designed for digital workplaces and mobile users

Warranty

Aruba Networking offers a Limited Lifetime Warranty on many of its hardware products, including select switches and access points. This warranty covers defects in materials and workmanship for the duration of the product's life, with support available for up to five years after the product's end-of-sale date.
Other Aruba products come with warranties ranging from 1 to 5 years, depending on the specific model. Warranty terms can vary based on the product category and model number.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Aruba Networking products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.hpe.com/psnow/doc/a00143138enw?jumpid=in_pdfviewer-psnow

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 48 x 10/100/1000 RJ-45 PoE+ ports (IEEE 802.3at)
- 4 x SFP+ 1/10GbE uplink ports
- 740W PoE+ power budget
- 176 Gbps switching capacity
- Up to 112.0 Mpps throughput
- 12.38 MB packet buffer
- Latency under 3.8 μs at 1000 Mb and under 1.6 μs at 10 Gbps (64-byte packets)
- 32,768 MAC address table entries
- Routing table: 2,000 IPv4 and 1,000 IPv6 routes in hardware
- Dual Core ARM Cortex A9 at 1016 MHz, 1 GB DDR3 SDRAM, 4 GB eMMC
- 1 dual-personality (RJ-45 or USB micro-B) serial console port
- 1U rack-mountable, 44.25 x 32.42 x 4.39 cm, 4.79 kg
- Maximum power rating 980W, 80 Plus Gold certified
- Side-to-side airflow
- Operating temperature 0 to 45 C up to 5,000 ft

FAQs

Q: How much PoE power does the JL558A provide?
A: The JL558A has a 740W PoE+ budget shared across its 48 Gigabit ports, which support IEEE 802.3at PoE+.

Q: What uplink options does this switch have?
A: It has four SFP+ ports that support 1GbE or 10GbE. These are suited to aggregation and backbone links.

Q: Does the 2930F require a software licence for Layer 3 features?
A: No. No software licensing is required. The switch supports RIP and Access OSPF routing.

Q: Is the JL558A a Layer 2 or Layer 3 switch?
A: It is a fixed-configuration Layer 3 managed switch, so it can route at the network edge as well as switch.

Q: How is the switch managed?
A: It can be managed through the CLI, a web browser, SNMP, Telnet, RMON, Aruba AirWave or IMC. An RJ-45 or USB micro-B serial console port provides out-of-band access.

Q: What size is the switch and how is it mounted?
A: It is a 1U rack-mountable switch measuring 44.25 x 32.42 x 4.39 cm and weighing 4.79 kg.
