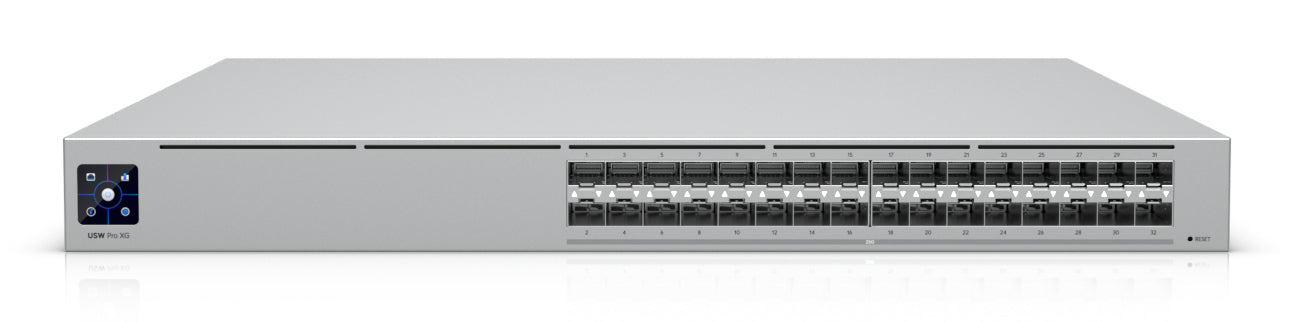

Ubiquiti USW-PRO-XG-AGGREGATION | UniFi Pro XG Aggregation Switch, 32x SFP28 25G, Layer 3, 1U

Name: Ubiquiti USW-PRO-XG-AGGREGATION | UniFi Pro XG Aggregation Switch, 32x SFP28 25G, Layer 3, 1U
Brand: Ubiquiti
SKU: USW-Pro-XG-Aggregation
Price: 4174.5 AUD
Availability: InStock

Authorised Ubiquiti Partner

SKU:USW-Pro-XG-Aggregation

In stock:97

$4,174.50 inc. GST

$3,795.00 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The Ubiquiti UniFi Pro XG Aggregation switch is a 1U Layer 3 managed aggregation switch with 32x SFP28 ports running at 25G, 10G or 1G. With 1.6 Tbps switching capacity and 800 Gbps total non-blocking throughput, it suits rack-mounted core and aggregation roles in UniFi deployments, with Etherlighting port indicators for at-a-glance link status.

The switch is backwards compatible with SFP and SFP+ modules and DACs, so existing optics and cabling can be reused. An internal 200W AC/DC power supply is paired with a USP RPS DC input for power redundancy, and a 1.3 inch LCM touchscreen provides on-device status. Layer 3 routing, VLAN, ACL and Pro AV profile support make it suitable for both enterprise networks and AV-over-IP environments.

Features

- Layer 3 routing with DHCP server and relay, inter-VLAN routing and static routing
- Etherlighting on SFP28 ports for quick visual link identification
- LACP, STP/RSTP and IGMP snooping with advanced querier configuration
- 802.1X, MAC and IP ACLs, port isolation, DHCP snooping and storm control
- Port mirroring, jumbo frames, LLDP-MED, voice VLAN and loop protection
- Backwards compatible with SFP and SFP+ modules and DACs
- Pro AV profiles for Dante, Q-SYS, NDI, SDVoE, Shure, AES67 and Crestron
- USP RPS DC input for power redundancy

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 32 x 25G/10G/1G SFP28 ports
- 1.6 Tbps switching capacity
- 800 Gbps total non-blocking throughput
- 1.2 Bpps forwarding rate
- Layer 3 with Etherlighting
- Supported VLANs: 1,000
- MAC address table size: 32,000
- IPv4 static routes: 512
- Packet buffer size: 8 MB
- Access lists: IPv4 256, MAC 256
- Internal AC/DC 200W power supply, 100-240V AC, 50/60 Hz
- USP RPS DC backup power input
- Maximum power consumption: 200 W
- Heat dissipation: 682 BTU/hr
- 1.3 inch LCM touchscreen
- 1U rack mount, 442.4 x 43.7 x 480 mm
- Weight: 7.1 kg without bracket, 7.2 kg with bracket
- SGCC steel enclosure
- Operating temperature: -5 to 40 C
- Operating humidity: 10 to 90% noncondensing
- NDAA compliant
- Certifications: CE, FCC, IC, Anatel

FAQs

Q: What port speeds does the USW-PRO-XG-AGGREGATION support?
A: All 32 SFP28 ports support 25G, 10G and 1G operation.

Q: Can I use existing SFP and SFP+ modules or DACs?
A: Yes. The SFP28 ports are backwards compatible with SFP and SFP+ modules and DACs.

Q: Does this switch support Layer 3 routing?
A: Yes. It supports inter-VLAN routing, static routing and DHCP server and relay.

Q: Does it offer power redundancy?
A: It has an internal 200W AC/DC power supply plus a USP RPS DC input for backup power.

Q: What are the rack mounting requirements?
A: It is a 1U unit for 19 inch four-post racks, supporting post depths from 600 to 1,066 mm.

Q: Does it support Pro AV deployments?
A: Yes. It includes Pro AV profiles for Dante, Q-SYS, NDI, SDVoE, Shure, AES67 and Crestron.
