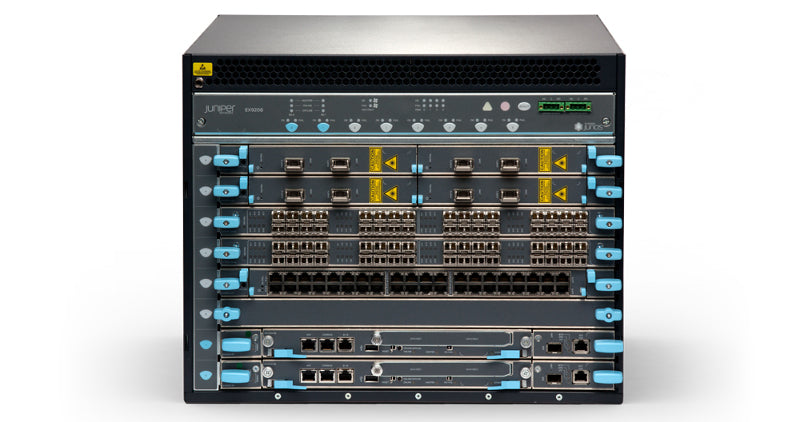

Juniper EX9208-CHAS3-S | EX9208 Switch Chassis 3, Passive Midplane, 8-Slot

Authorised Juniper Partner

SKU:EX9208-CHAS3-S

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The EX9208 Switch Chassis 3 with Passive Midplane is a modular 8-slot chassis for the Juniper EX9200 Series, built for core and aggregation Ethernet switching in campus and data centre networks. This Chassis 3 variant uses a passive midplane and forms the foundation on which line cards, routing engines, power supplies and fan trays are installed.

As part of the EX9200 Series, the EX9208 chassis allows network teams to scale port density and capacity by adding compatible modules over time. It suits enterprises standardising on Juniper for high-availability campus core and distribution layers.

Features

- Modular 8-slot chassis for Juniper EX9200 Series core and aggregation switching
- Passive midplane design
- Supports installation of line cards, routing engines, power supplies and fan trays
- Scalable platform for campus and data centre core deployments

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: modular switch chassis
- Series: Juniper EX9200 Series
- Model: EX9208 Chassis 3
- Slots: 8-slot modular chassis
- Midplane: passive midplane

FAQs

Q: What is the EX9208-CHAS3-S?
A: It is the Juniper EX9208 Chassis 3 with passive midplane, the modular 8-slot chassis for the EX9200 Series of core and aggregation Ethernet switches.

Q: Does this chassis include line cards or a routing engine?
A: This SKU is the chassis only. Line cards, routing engines, power supplies and fan trays are selected and ordered separately to suit your deployment.

Q: What is the difference between this and other EX9208 chassis SKUs?
A: This SKU is the Chassis 3 variant with a passive midplane. Check that the chassis revision matches the modules you plan to install.

Q: Which switch family does this chassis belong to?
A: It belongs to the Juniper EX9200 Series, designed for campus core and aggregation layers and data centre deployments.
