Ubiquiti USW-PRO-XG-10-POE | UniFi Pro XG 10 PoE+++ Layer 3 Switch, 2x 10G SFP+, 400W, 10x 10GbE

Name: Ubiquiti USW-PRO-XG-10-POE | UniFi Pro XG 10 PoE+++ Layer 3 Switch, 2x 10G SFP+, 400W, 10x 10GbE
Brand: Ubiquiti
SKU: USW-PRO-XG-10-POE
Price: 1571.13 AUD
Availability: InStock

Authorised Ubiquiti Partner

SKU:USW-PRO-XG-10-POE

In stock:62

$1,571.13 inc. GST

$1,428.30 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

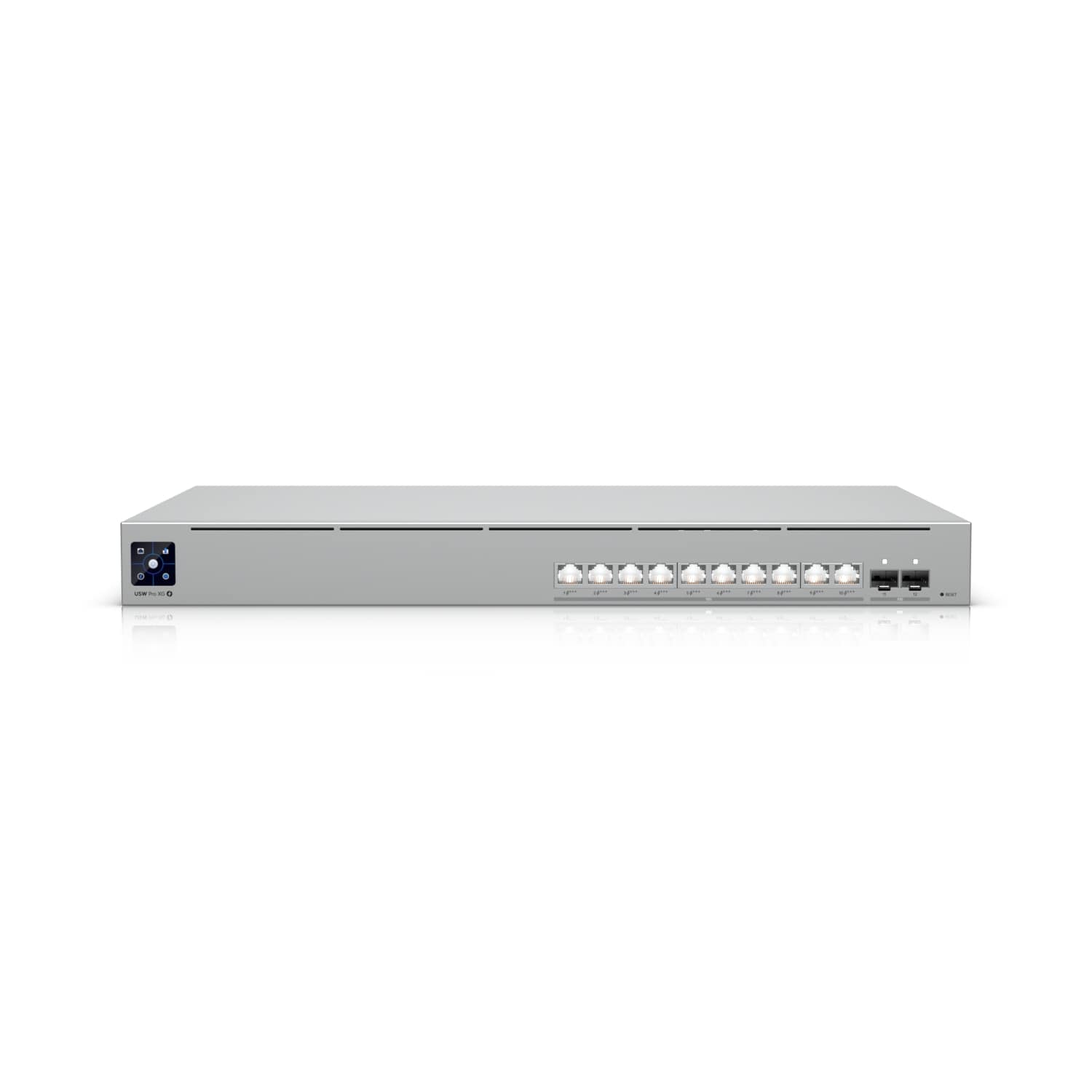

The UniFi Pro XG 10 PoE+++ Layer 3 managed switch is a 1U rack-mount switch with ten 10 GbE RJ45 PoE+++ ports and two 10G SFP+ ports, backed by a 400W PoE budget. Each RJ45 port supplies up to 90W and negotiates 10G, 5G, 2.5G, 1G or 100M, making it well suited to powering WiFi 7 access points, enterprise cameras and other high-draw devices on a multi-gigabit network.

With 240 Gbps switching capacity, 120 Gbps non-blocking throughput and Layer 3 routing, it handles inter-VLAN routing, static routing and DHCP server and relay duties at the aggregation or access layer. Etherlighting port LEDs, a 1.3 inch LCM touchscreen, an internal 550W AC supply and a redundant DC input make it a robust, centrally managed choice for UniFi Network deployments.

Features

- High-density 10 GbE PoE+++ ports delivering up to 90W for WiFi 7 access points, enterprise cameras and other powered devices
- Layer 3 routing with inter-VLAN routing, static routing, DHCP server and relay
- Etherlighting port LEDs for status and speed identification
- Pro AV profiles for Dante, Q-SYS, NDI, SDVoE, Shure, AES67 and Crestron
- Layer 2 and security features including IGMP snooping, 802.1X, port isolation, ACLs, DHCP snooping, storm control, jumbo frames, LLDP-MED and loop protection
- Managed through UniFi Network
- Internal 550W AC supply plus redundant DC input (RPS)

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 10 x 10 GbE RJ45 PoE+++ ports (10G/5G/2.5G/1G/100M)
- 2 x 10G SFP+ ports (10G/1G)
- Up to 90W per port (PoE+++), 400W total PoE budget
- Layer 3 switching with Etherlighting
- Switching capacity: 240 Gbps
- Total non-blocking throughput: 120 Gbps
- Forwarding rate: 179 Mpps
- Supported VLANs: 1,000
- MAC address table size: 32,000
- L3 table size: 12,000 ARP entries, 12,000 IPv4 routes
- Packet buffer size: 2 MB
- Form factor: 1U rack mount
- Dimensions: 442.4 x 285 x 44 mm
- Weight: 4.6 kg without brackets, 4.7 kg with brackets
- Power supply: internal 550W AC/DC, redundant DC input (RPS)
- Max. power consumption: 65W excluding PoE output, 520W including PoE output
- LCM display: 1.3 inch touchscreen
- Operating temperature: -5 to 40 C
- NDAA compliant
- Requires UniFi Network 9.1.120 or later

FAQs

Q: How much PoE power does the USW-PRO-XG-10-POE provide?
A: All ten RJ45 ports support PoE+++, delivering up to 90W per port, with a total PoE budget of 400W shared across the ports.

Q: What port speeds are supported?
A: The ten RJ45 ports negotiate 10G, 5G, 2.5G, 1G and 100M. The two SFP+ ports support 10G and 1G.

Q: Does this switch support Layer 3 routing?
A: Yes. It supports inter-VLAN routing, static routing, and DHCP server and relay, with tables for 12,000 ARP entries and 12,000 IPv4 routes.

Q: How is the switch managed?
A: It is managed through UniFi Network and requires version 9.1.120 or later.

Q: Does it support redundant power?
A: It has an internal 550W AC power supply and a DC input for a redundant power system (RPS), providing DC power backup.

Q: Is it rack mountable?
A: Yes. It is a 1U rack-mount switch supporting rack depths from 400 to 1200 mm.
