• Silver Teltonika TSW110 unmanaged Gigabit Ethernet switch, 5x1GbE PoE ports
1 1

Teltonika

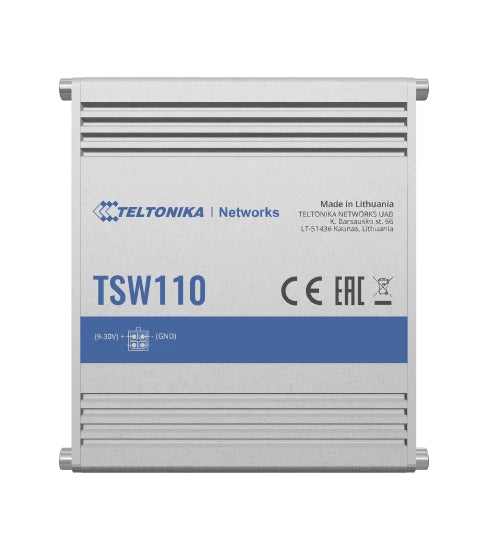

Teltonika TSW110 | 5-Port Gigabit Industrial Unmanaged Switch, PoE In, AU Plug

Teltonika TSW110 | 5-Port Gigabit Industrial Unmanaged Switch, PoE In, AU Plug

TSW110

In stock:3

$103.91 inc. GST
$94.46 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Teltonika TSW110 is a compact Layer 2 unmanaged industrial Gigabit Ethernet switch built for high-bandwidth automation and industrial networking applications. Featuring five 10/100/1000 Mbps RJ45 ports, a rugged full aluminium enclosure, and a wide 9–30 VDC input range, it delivers plug-and-play simplicity with the durability to withstand harsh environments. Passive PoE input on port 1 allows the switch itself to be powered via Ethernet cable, and DIN rail or wall/surface mounting options make installation flexible across control cabinets and automation panels.

With a 10 Gbps non-blocking switching capacity, jumbo frame support up to 9 KB, and an operating temperature range of -40°C to 75°C, the TSW110 is suited to demanding industrial deployments. IP30 ingress protection, a grounding screw for EMC compliance, and RCM certification confirm it is ready for Australian and New Zealand markets. Order now at iptrading.com.au — trusted by Australian IT professionals.

Features

- Plug-and-play Layer 2 unmanaged design — no configuration or software setup required
- Five Gigabit Ethernet ports for cost-effective high-bandwidth industrial connectivity
- Passive PoE input on port 1 enables the switch to be powered directly via Ethernet cable
- Wide 9–30 VDC input voltage range for compatibility with diverse industrial power systems
- Rugged full aluminium housing for durability in harsh and demanding environments
- DIN rail and wall/surface mounting for versatile installation in control cabinets and automation panels
- Wide operating temperature range (-40°C to 75°C) for extreme environmental conditions
- Auto MDI/MDIX crossover detection eliminates the need for crossover cables
- 10 Gbps non-blocking switching capacity ensures high-throughput, low-latency performance
- Grounding screw for electrical safety and EMC compliance
- Profinet Class A conformance available for industrial automation network compatibility
- Compact 100 x 30 x 85 mm footprint ideal for space-constrained installations
- RCM certified — compliant and ready for Australian and New Zealand deployments

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 5 x 10/100/1000 Mbps RJ45 LAN Ports (auto MDI/MDIX)
- Switching Bandwidth: 10 Gbps (non-blocking)
- Packet Buffer: 128 KB
- MAC Address Table: 2K entries
- Jumbo Frame Support: up to 9 KB
- Passive PoE Input: LAN Port 1 (non-IEEE 802.3af/at/bt)
- Power Input: 9–30 VDC via 4-pin DC connector
- Max Power Consumption: <1.8 W (Idle: <0.4 W)
- Operating Temperature: -40°C to 75°C
- Operating Humidity: 5%–95% non-condensing
- Ingress Protection: IP30
- Enclosure: Full aluminium housing
- Mounting: DIN rail or surface/wall mount
- Dimensions: 100 x 30 x 85 mm
- Weight: 227 g
- Status LEDs: 1 x Power, 10 x Ethernet
- Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3az
- Certifications: CE, UKCA, EAC, FCC, IC, RCM, BSMI, CB, NOM
- Profinet Class A conformance available (optional order code)
- Power Plug: AU

FAQs

Q: Does the Teltonika TSW110 require any configuration or software to operate?
A: No. The TSW110 is a fully unmanaged plug-and-play switch. Simply connect it to power and plug in your Ethernet devices — no software, web interface, or configuration is required.

Q: What does 'Passive PoE input on port 1' mean for the TSW110?
A: It means the TSW110 itself can receive power through port 1 via a passive PoE injector or compatible device, eliminating the need for a separate DC power cable. Note: this is non-standard passive PoE and is not compatible with IEEE 802.3af/at/bt PoE switches.

Q: Is the TSW110 suitable for outdoor or harsh industrial environments?
A: Yes. The TSW110 features a full aluminium enclosure, IP30 ingress protection, and an operating temperature range of -40°C to 75°C, making it well suited for factory floors, control cabinets, and other industrial or automation environments.

Q: Can I mount the TSW110 on a DIN rail?
A: Yes. The TSW110 supports both DIN rail and surface/wall mounting, giving you flexibility for installation in industrial control panels, enclosures, or on walls.

Q: Is the Teltonika TSW110 certified for use in Australia?
A: Yes. The TSW110 holds RCM certification, confirming compliance with Australian and New Zealand electromagnetic compatibility and electrical safety requirements. It is supplied with an AU plug.

Q: Can I purchase the Teltonika TSW110 in Australia from IP Trading?
A: Yes. The TSW110 is available to order now at iptrading.com.au. IP Trading is a trusted Australian B2B IT hardware reseller supplying businesses, government agencies, and IT professionals nationwide.
