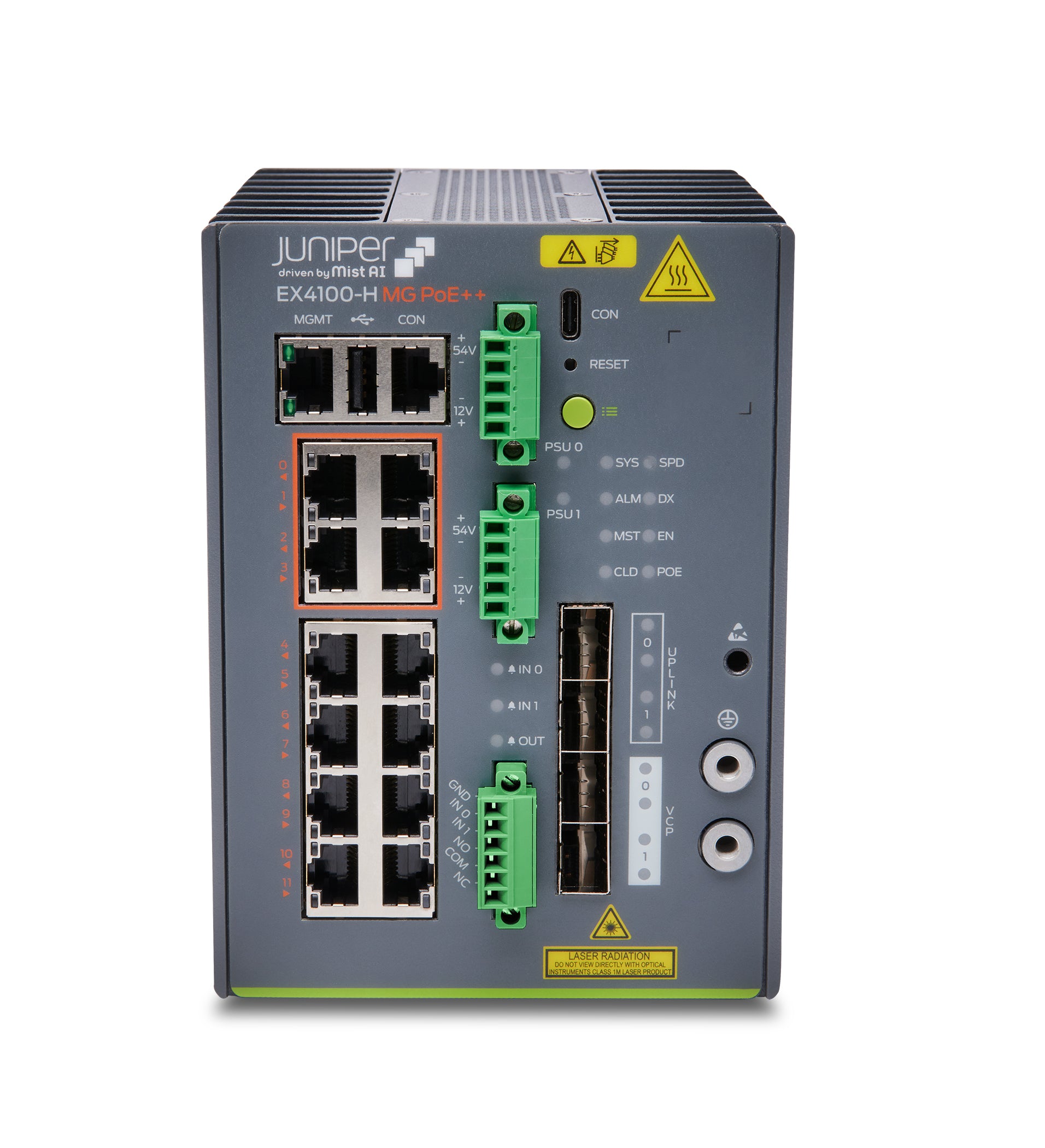

Juniper EX4100-H-12MP-DC | EX4100-H 12-Port Hardened Switch, DC PSU, 4x 10G SFP+, MACsec

Authorised Juniper Partner

SKU:EX4100-H-12MP-DC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Juniper EX4100-H-12MP-DC is a hardened 12-port managed access switch from the EX4100 range, built for deployments that need a DC power supply. It provides 4x 1/2.5GbE and 8x 1GbE access ports, 4x 10G SFP+ uplinks and MACsec AES-256 support for encrypted links at the network edge.

The four 10G SFP+ uplinks can also be used as Virtual Chassis ports, allowing multiple EX Series switches to be managed as a single logical unit. Its hardened form factor and DC input make it a fit for industrial, telecom and remote-site cabinets where standard AC-powered switches are unsuitable.

Features

- Virtual Chassis capable for managing multiple switches as one
- MACsec AES-256 link encryption
- Multigigabit ports for Wi-Fi 6 and high-bandwidth endpoints
- 10G SFP+ uplinks for high-speed aggregation
- DC power input for telecom and industrial sites

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 12 access ports: 4 x 1/2.5GbE and 8 x 1GbE
- 4 x 10G SFP+ uplinks
- Uplinks usable as Virtual Chassis ports
- DC power supply
- MACsec AES-256 support
- Hardened (ruggedised) form factor

FAQs

Q: What power input does the EX4100-H-12MP-DC use?
A: This model has a DC power supply, suited to sites with DC power feeds such as telecom and industrial cabinets.

Q: What access and uplink ports does it provide?
A: It has 12 access ports, made up of 4 x 1/2.5GbE and 8 x 1GbE, plus 4 x 10G SFP+ uplink ports.

Q: Can I stack or virtually chassis multiple units?
A: Yes, the 10G SFP+ uplinks can be configured as Virtual Chassis ports so multiple EX Series switches can be managed as a single logical device.

Q: Does this switch support MACsec encryption?
A: Yes, it supports MACsec with AES-256 for encrypting links between the switch and connected devices or other switches.

Q: Do I need SFP+ optics for the uplinks?
A: Yes, the 10G SFP+ uplink ports need compatible SFP+ transceivers or direct attach cables, which are sold separately.
