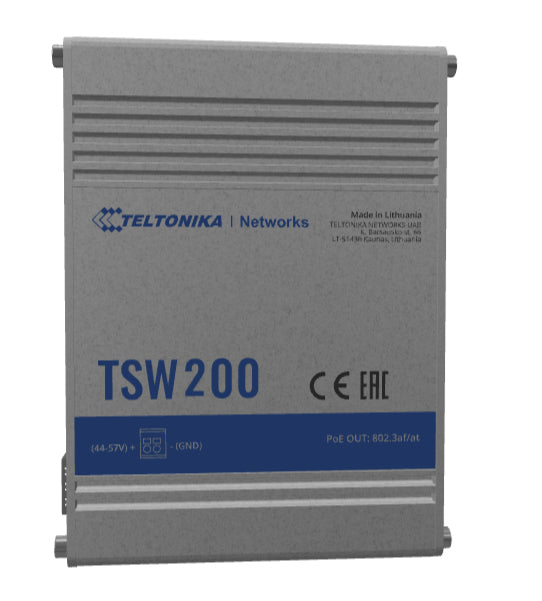

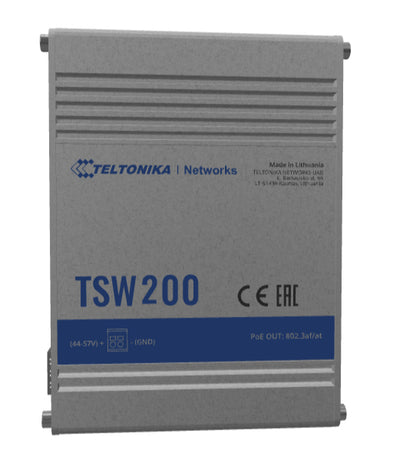

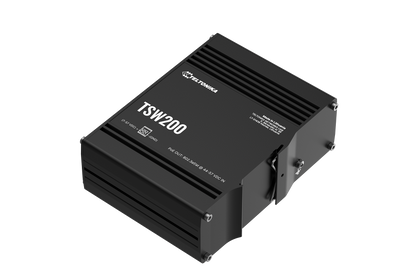

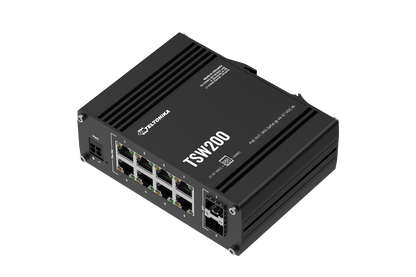

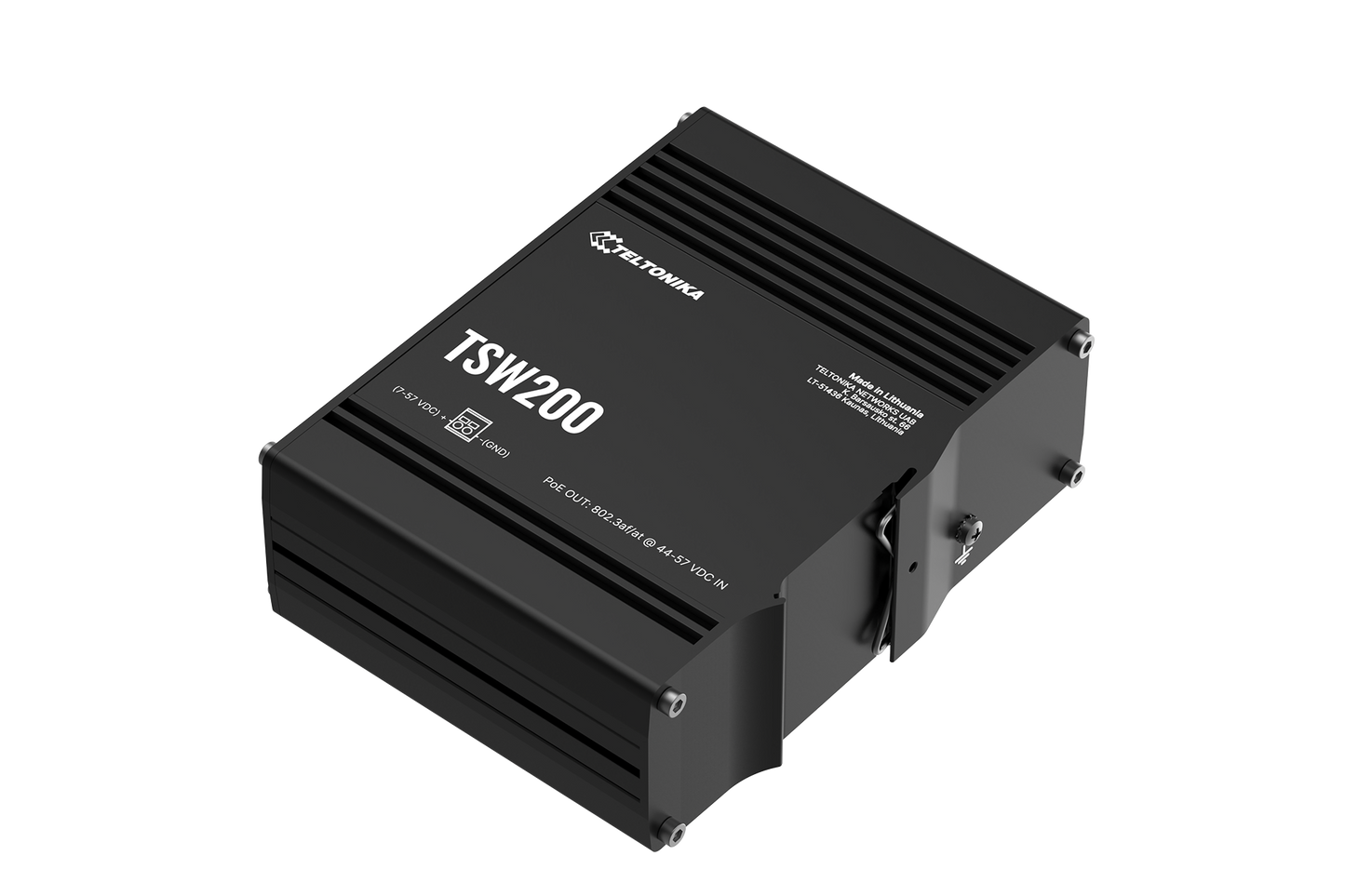

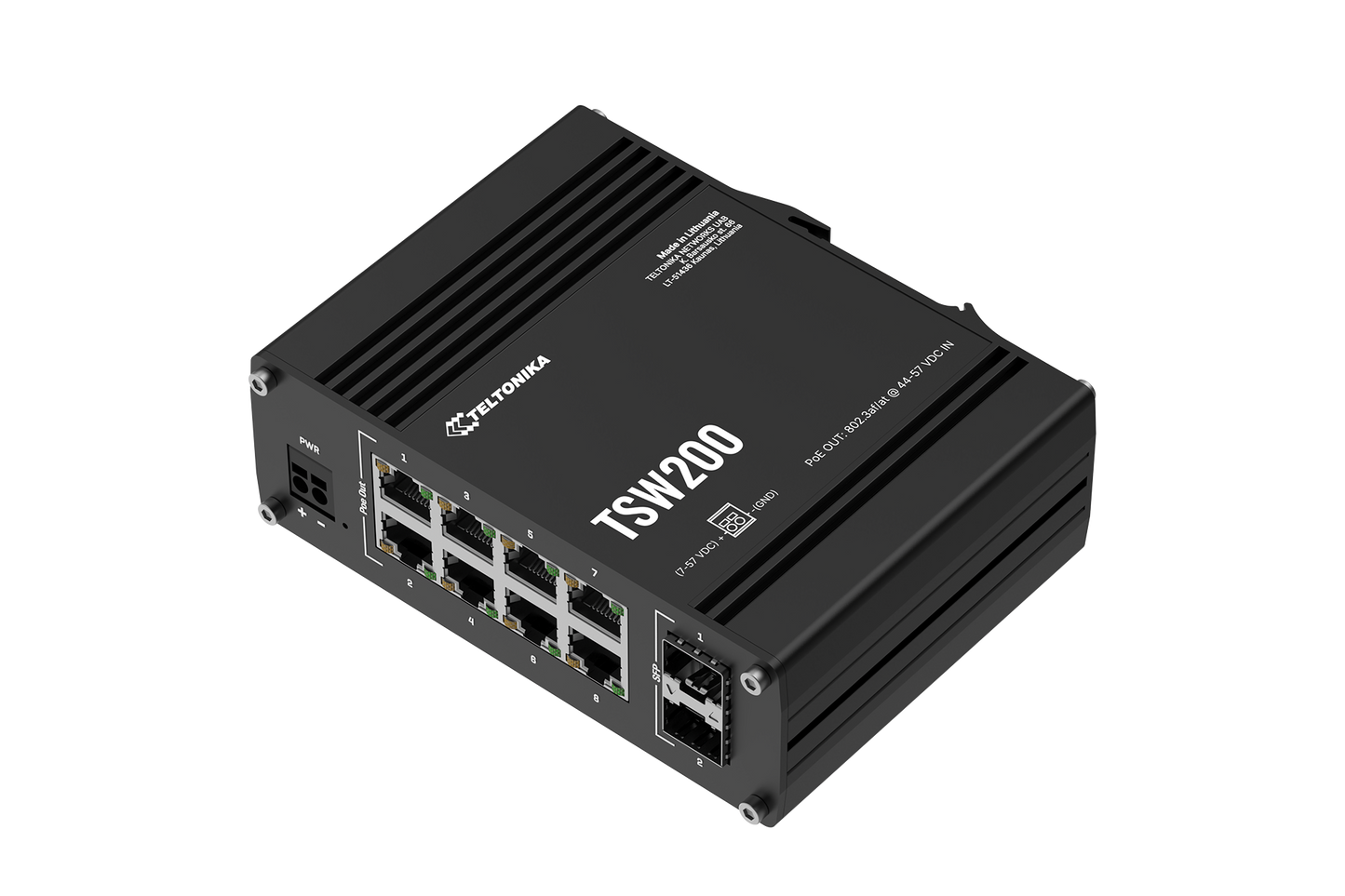

Teltonika TSW200 | 8-Port Gigabit PoE+ Industrial Switch, 2x SFP

Name: Teltonika TSW200 | 8-Port Gigabit PoE+ Industrial Switch, 2x SFP
Brand: Teltonika
SKU: TSW200
Price: 148.5 AUD
Availability: InStock

Authorised Teltonika Partner

SKU:TSW200

In stock:18

$246.43 Save 39%

$148.50 inc. GST

$135.00 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

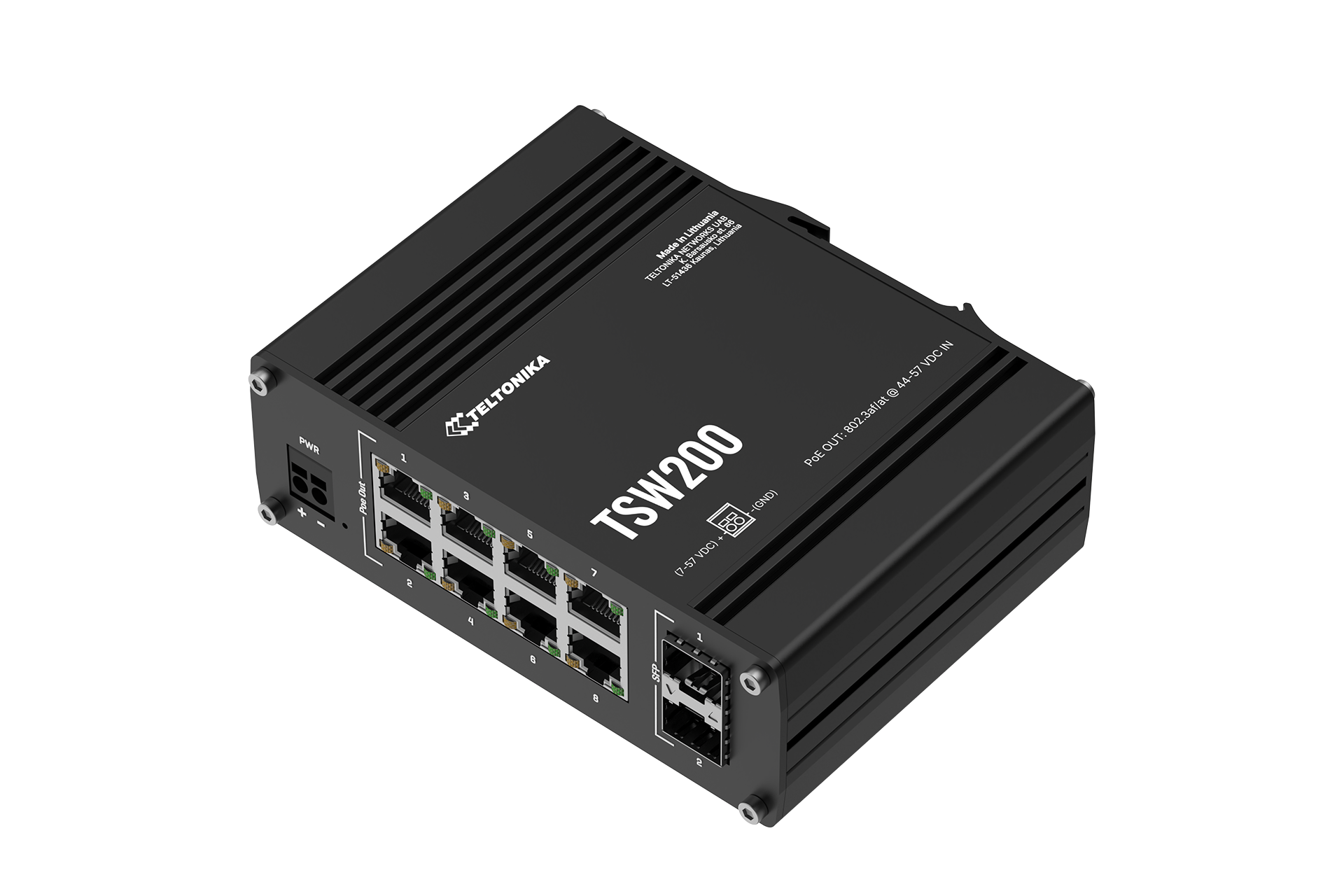

The Teltonika TSW200 is an unmanaged industrial Gigabit PoE+ switch with 8 x 10/100/1000 Mbps RJ45 ports and 2 x SFP fibre ports. Each PoE+ port delivers up to 30 W (802.3af/at) from a 240 W total PoE budget, making it well suited to powering IP cameras, wireless access points and IoT devices in remote or harsh sites. This SKU is supplied without a power supply, so a compatible 2-pin DC supply is required.

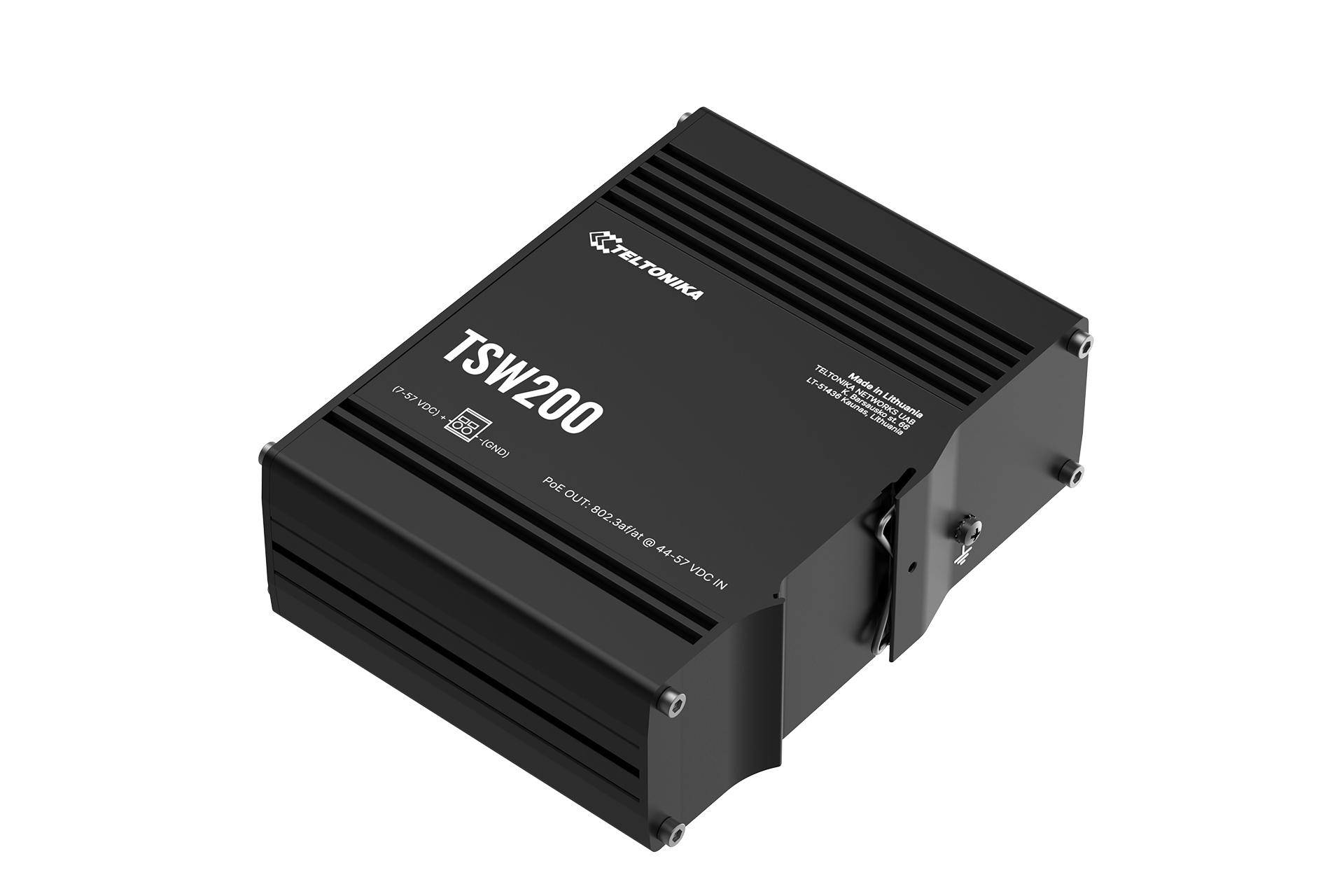

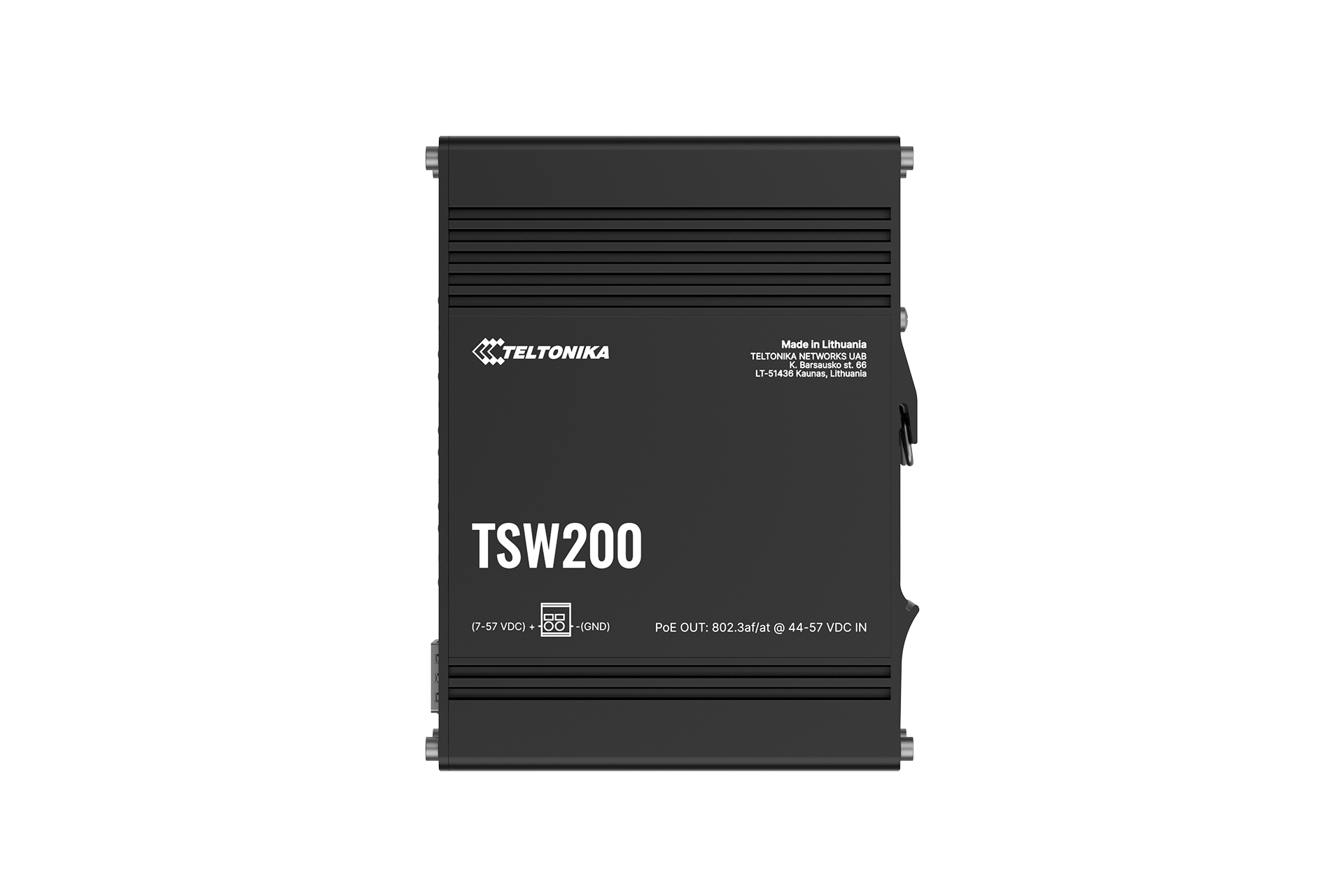

Built in a full aluminium IP30 housing, the TSW200 operates from -40 to 75 C and offers 20 Gbps of non-blocking bandwidth for plug-and-play deployment with no configuration. It can be installed on a DIN rail, on a wall (additional kit needed) or on a flat surface, and the 2 SFP ports allow long-range fibre uplinks to the core network.

Features

- 8 Gigabit PoE+ ports delivering up to 30 W each
- 2 SFP ports for long-range fibre uplinks
- Unmanaged, plug-and-play operation
- 240 W total PoE budget
- Industrial-grade IP30 aluminium housing
- Wide -40 to 75 C operating range
- DIN rail, wall and desktop mounting options
- Power supply sold separately

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

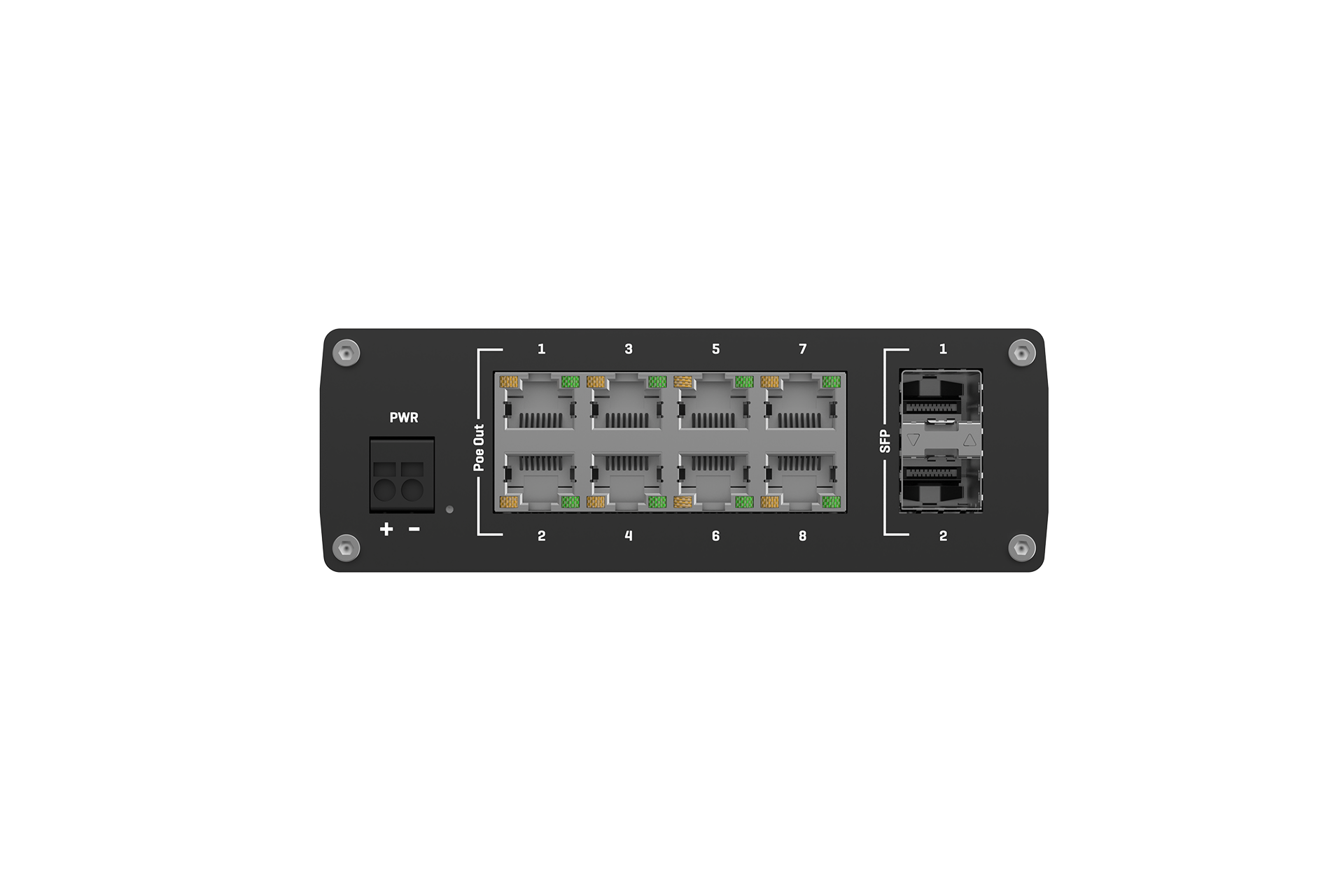

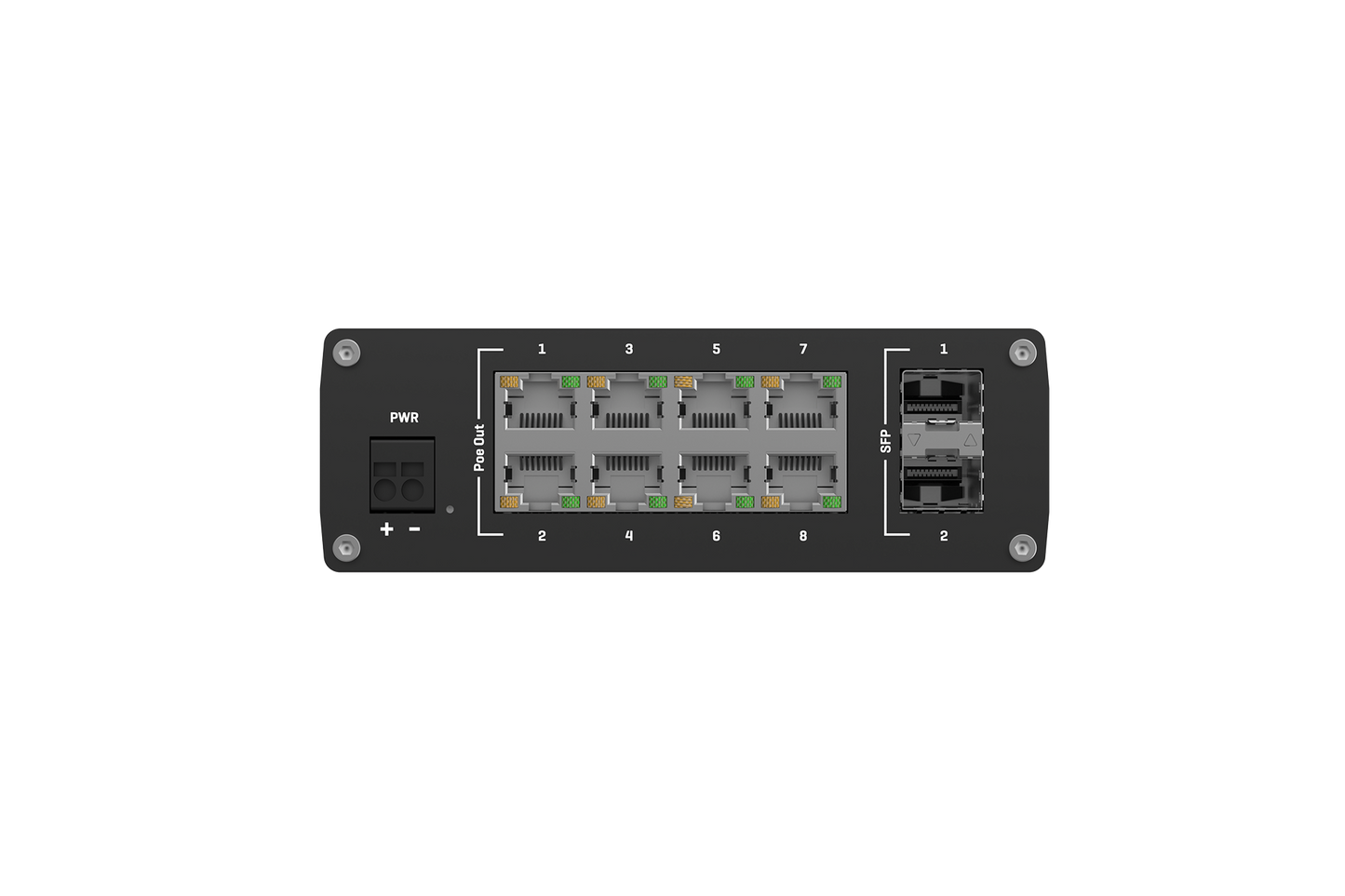

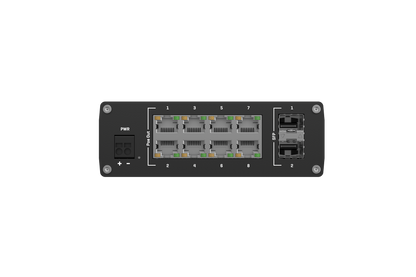

- 8 x 10/100/1000 Mbps RJ45 PoE+ ports (IEEE 802.3af/at)
- 2 x SFP ports
- Up to 30 W per PoE port, 240 W total PoE budget
- 20 Gbps non-blocking bandwidth
- 128 KB packet buffer, 2K MAC address table, 9216 byte jumbo frames
- Input voltage 7-57 VDC (44-57 VDC required for PoE)
- 2-pin industrial DC power connector, grounding screw
- Power consumption: 1.81 W idle, 5.5 W max without PoE, 245.5 W max
- Full aluminium housing, IP30 rated
- Operating temperature -40 to 75 C, humidity 10% to 90% non-condensing
- Dimensions 132 x 44.2 x 95.1 mm
- DIN rail, wall (additional kit needed) or flat surface mounting

FAQs

Q: Does the TSW200 include a power supply?
A: No. This SKU is supplied without a power supply. A compatible 2-pin DC supply is required, and PoE operation needs a 44-57 VDC input.

Q: How much PoE power does the TSW200 provide?
A: All 8 RJ45 ports support 802.3af and 802.3at PoE+, up to 30 W per port, with a total PoE budget of 240 W.

Q: Is the TSW200 a managed switch?
A: No. It is an unmanaged plug-and-play switch, so no configuration is needed.

Q: What mounting options are available?
A: The switch can be placed on a flat surface, or mounted on a DIN rail or wall. An additional mounting kit is needed for DIN rail or wall mounting.

Q: What are the SFP ports used for?
A: The 2 SFP ports allow fibre uplinks over longer distances than copper, using a compatible SFP transceiver.

Q: What environments is the TSW200 designed for?
A: It has an IP30 aluminium housing and an operating range of -40 to 75 C, suiting industrial cabinets, outdoor enclosures and other harsh sites.
