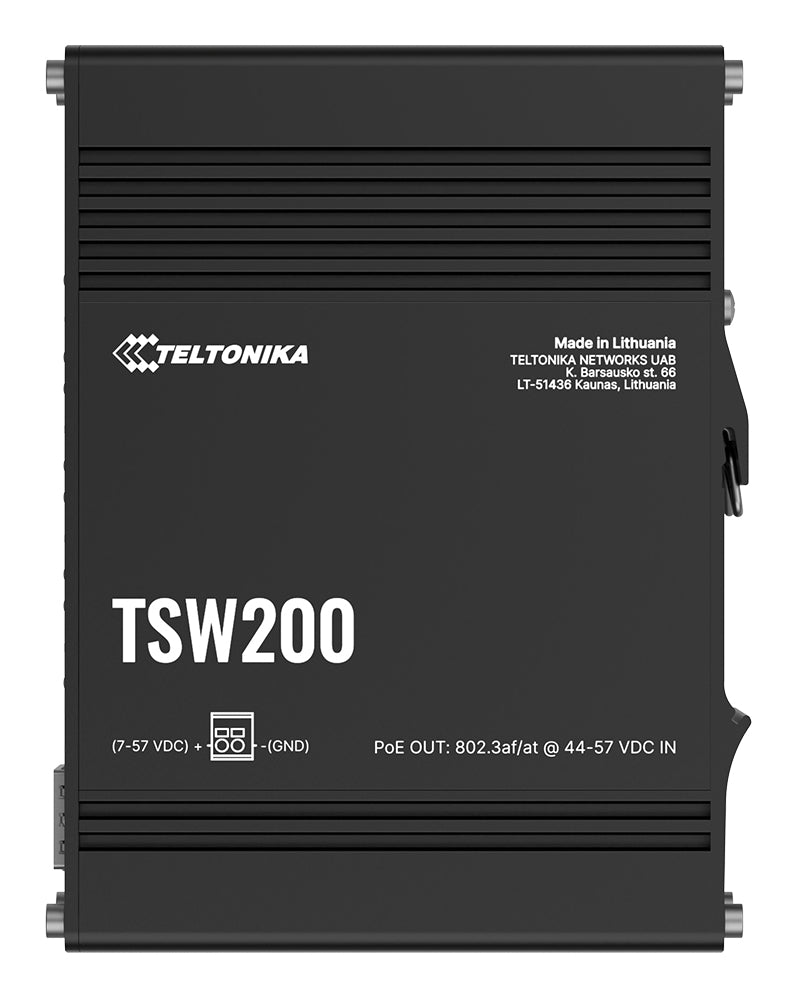

• Black teltonika tsw200 poe power over ethernet injector with matte finish and front ventilation slits for industrial use

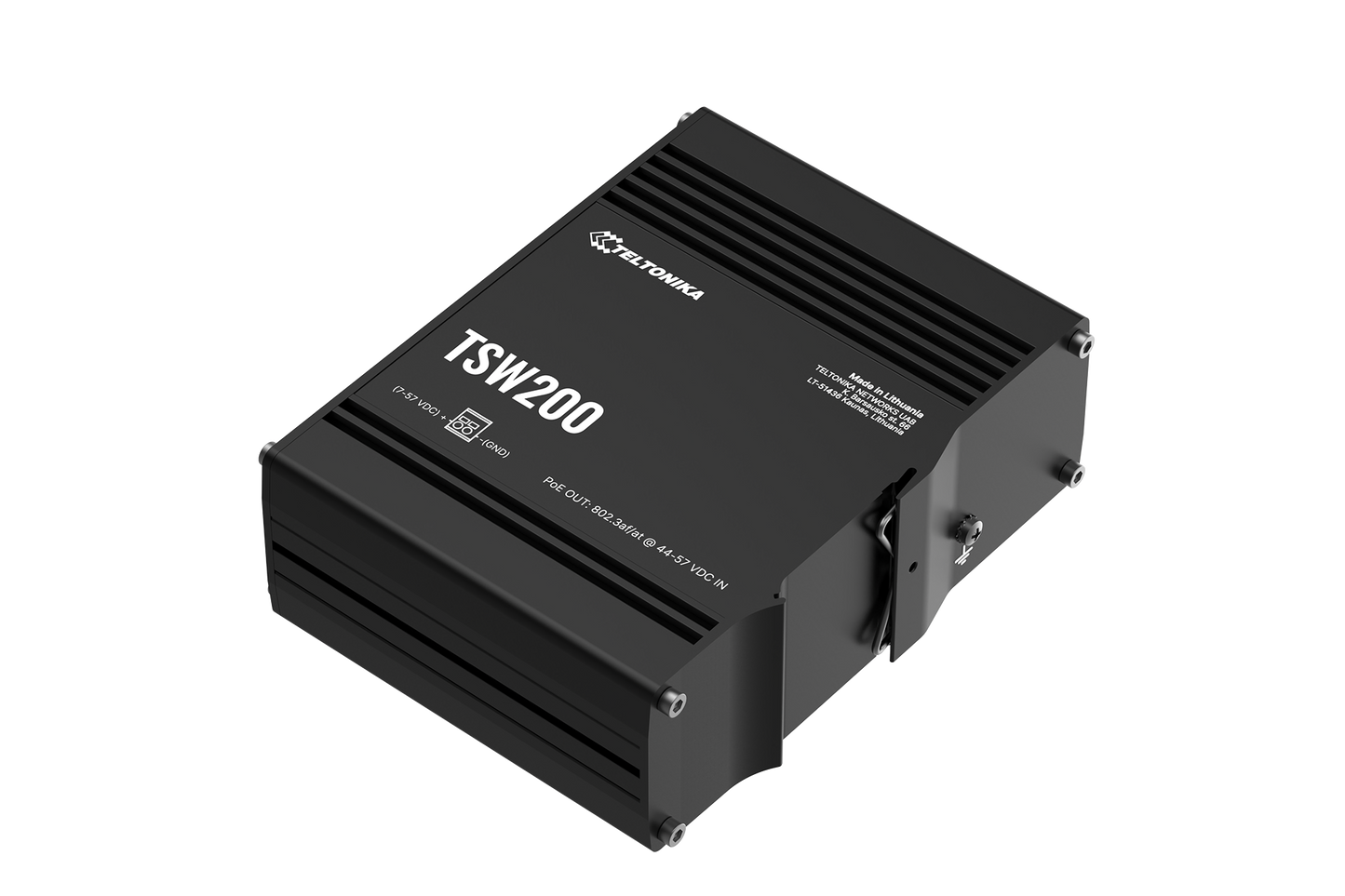

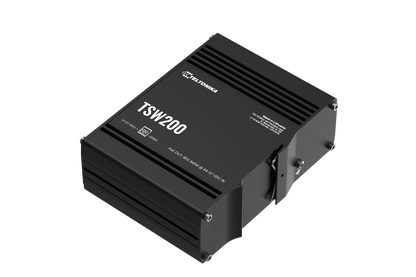

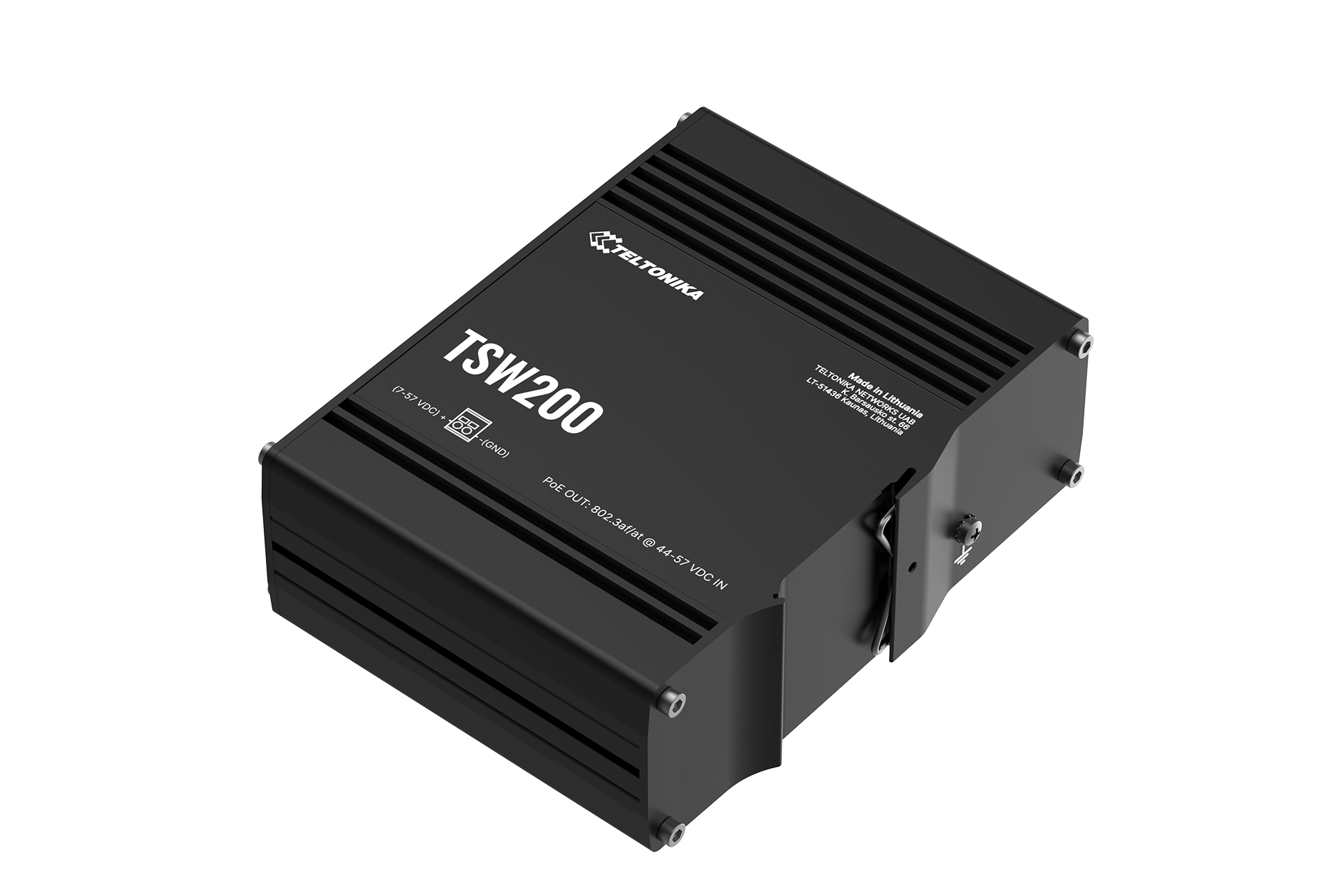

  • Black rectangular teltonika tsw200 power supply unit with matte finish and side ventilation slits for industrial use

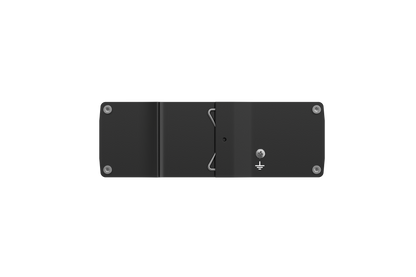

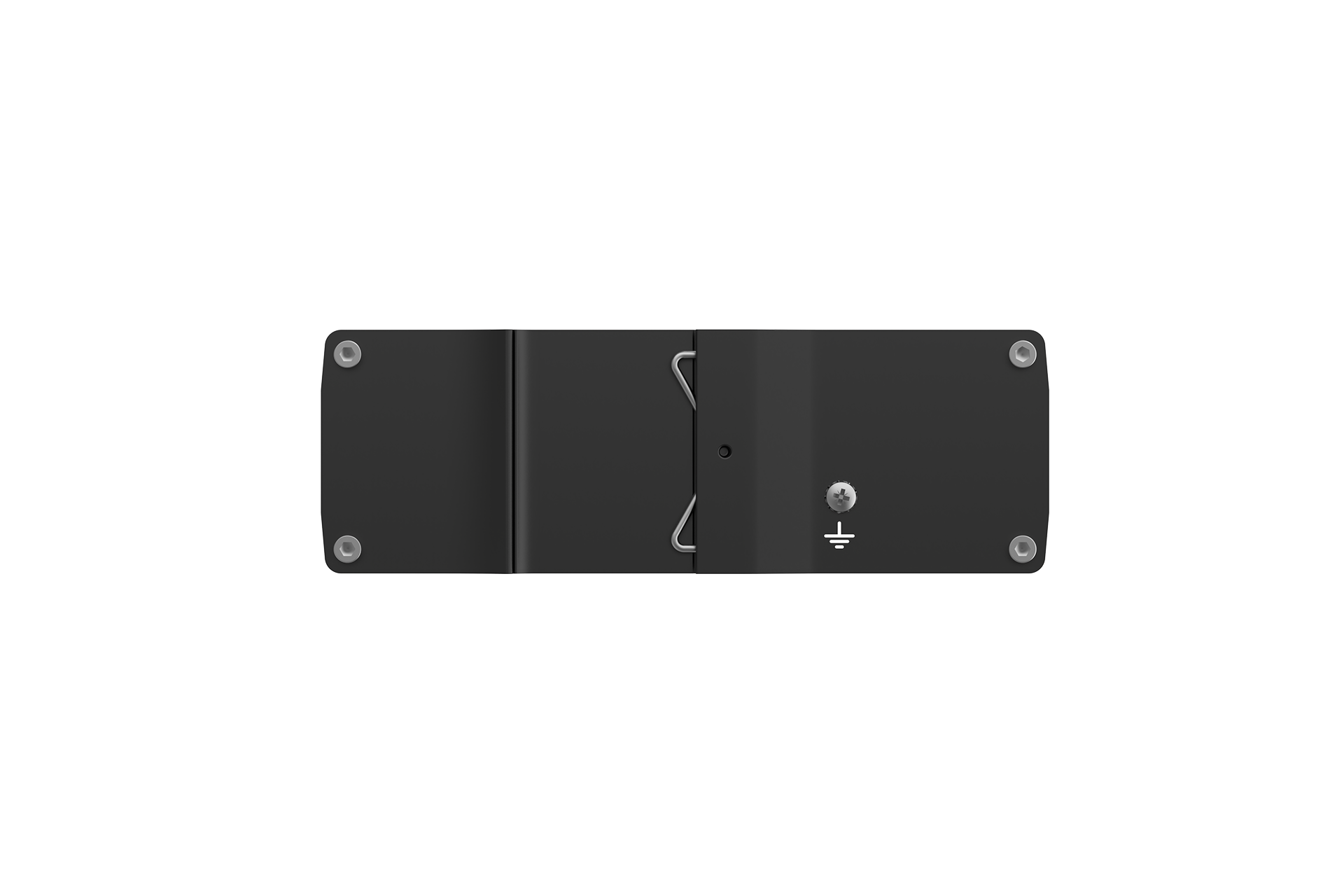

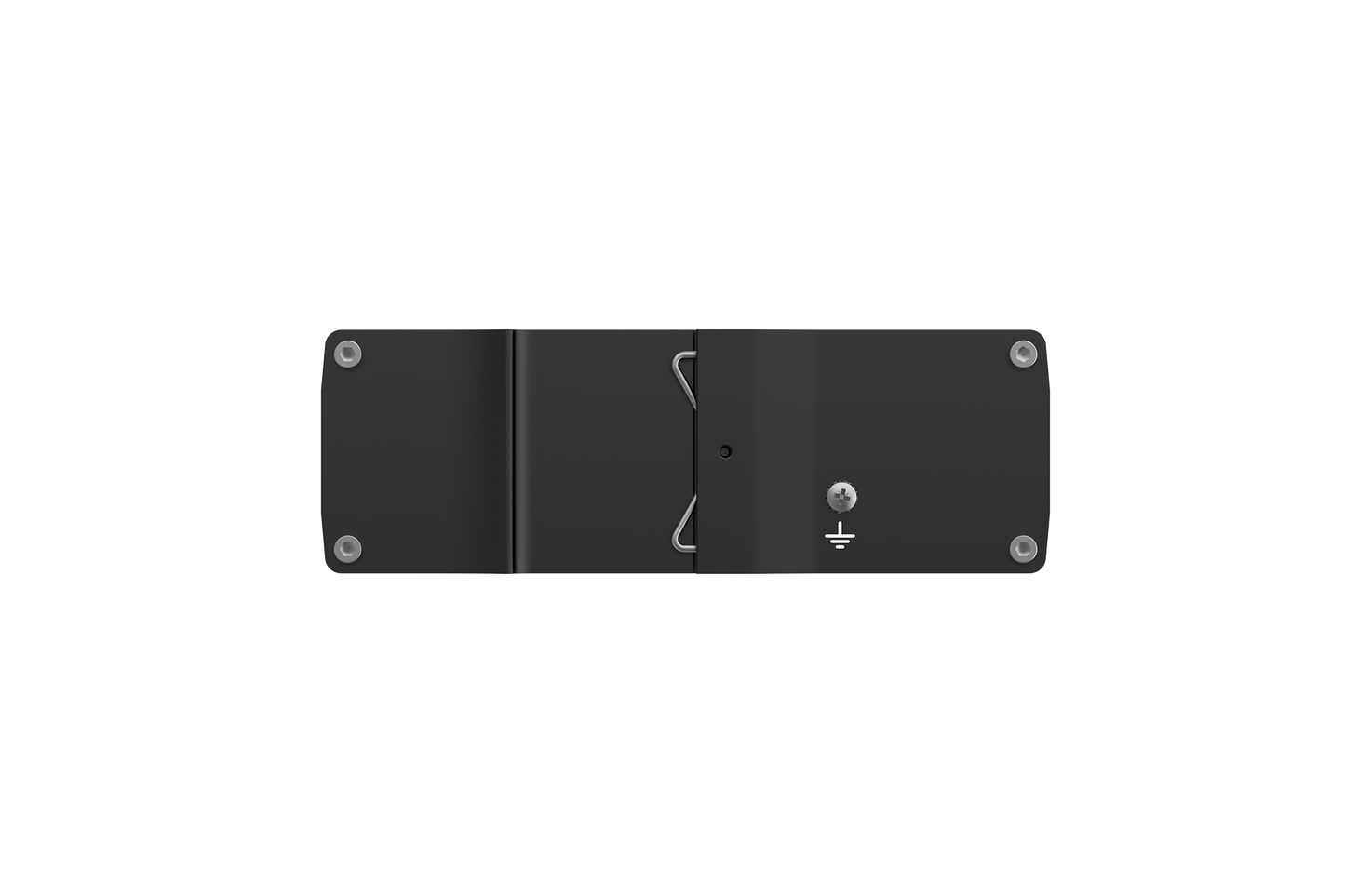

  • Black rectangular Teltonika TSW200 8-port gigabit PoE+ industrial switch back with silver screws and grounding symbol

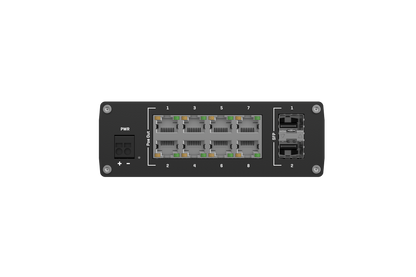

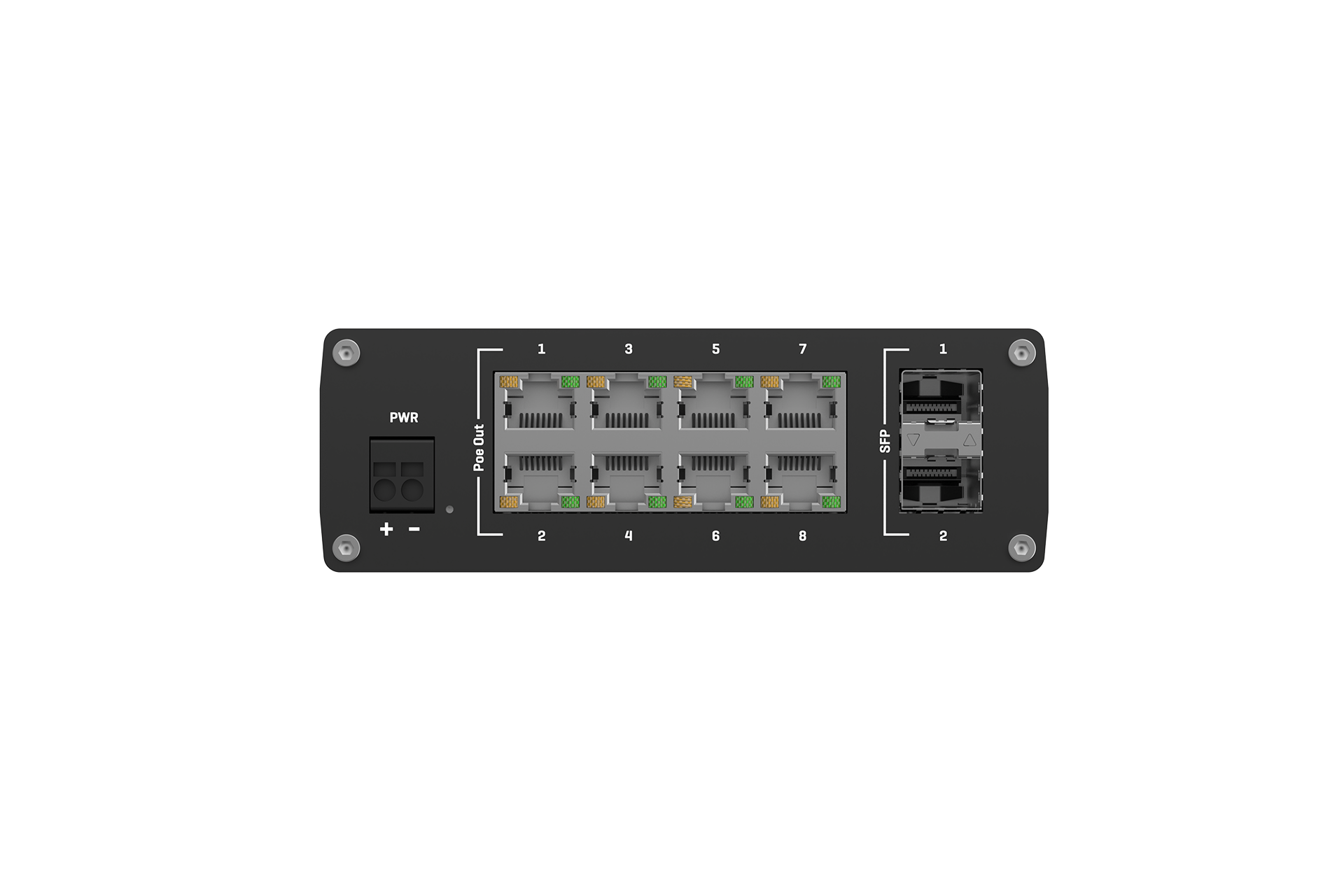

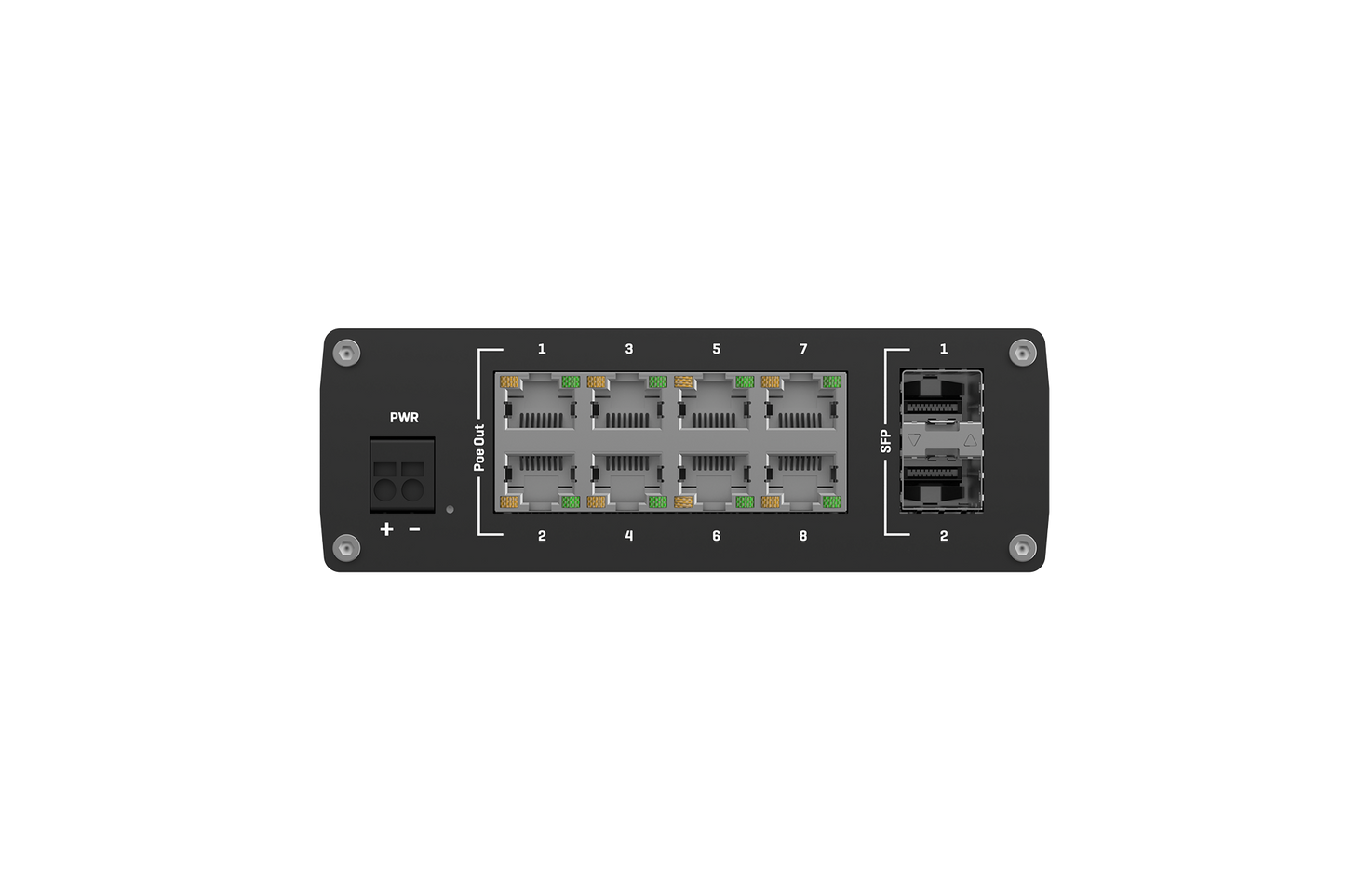

  • Black teltonika tsw200 8-port gigabit poe industrial network switch back with 2 sfp slots and power input on left side

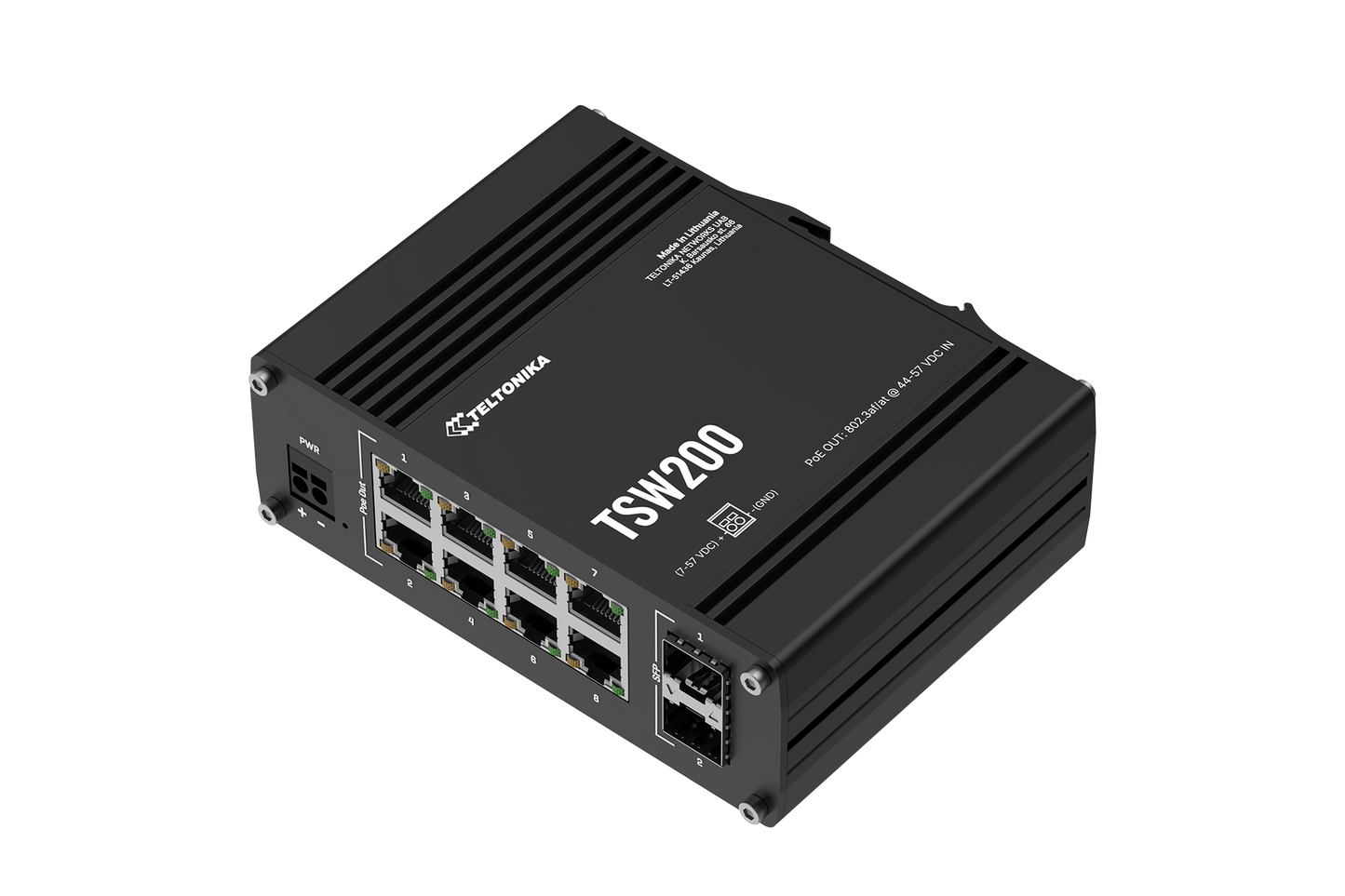

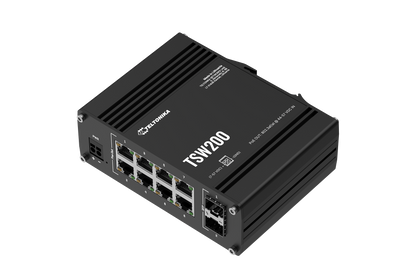

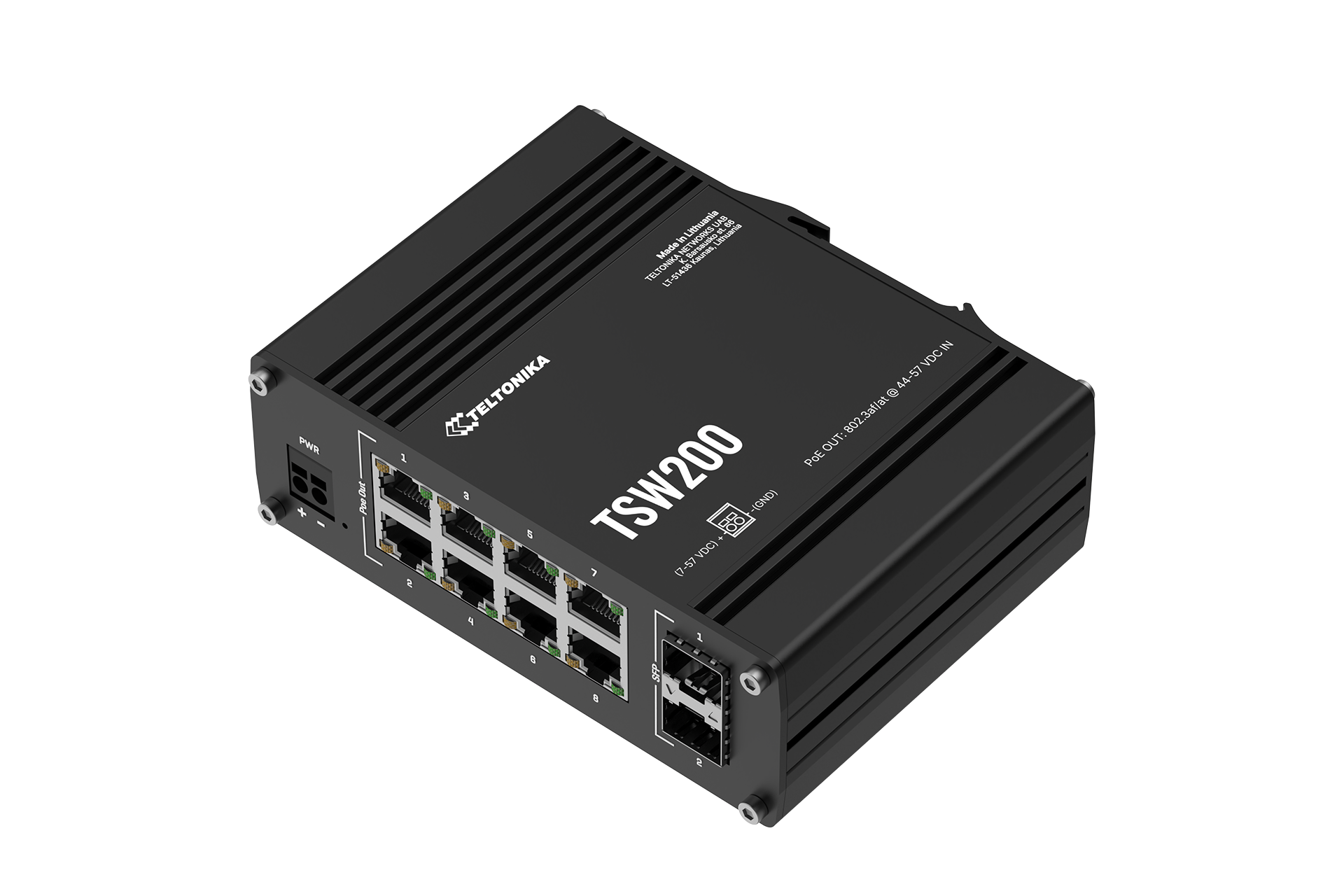

  • Black teltonika tsw200 8-port gigabit poe+ industrial ethernet switch with 2 sfp ports and 240w power capacity
1 5

Teltonika

Teltonika TSW2000000B0 | TSW200 8-Port Gigabit PoE+ Industrial Switch, 2x SFP, 240W, No PSU

Teltonika TSW2000000B0 | TSW200 8-Port Gigabit PoE+ Industrial Switch, 2x SFP, 240W, No PSU

TSW2000000B0

In stock:48

$203.67 AUD
$203.67 AUD
$203.67 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The Teltonika TSW200 is an industrial-grade unmanaged PoE+ Ethernet switch delivering 8 Gigabit RJ45 ports with IEEE 802.3af/at PoE+ support and 2 SFP ports for fibre-optic uplinks — all in a rugged, full-aluminium DIN rail enclosure. With a total PoE budget of 240W (up to 30W per port) and no configuration required, it is ideal for powering IP cameras, wireless access points, and POS terminals in factories, transportation hubs, and other demanding environments. This SKU is supplied without a PSU, which is sold separately.

Designed to operate from -40°C to +75°C with an IP30-rated aluminium housing, the TSW200 handles harsh industrial conditions that would challenge commercial-grade hardware. Its integrated DIN rail bracket enables rapid panel mounting, while wall and desktop mounting options provide deployment flexibility. PROFINET certified and carrying a broad range of global certifications including CE, FCC, RCM, and E-mark, the TSW200 is ready for industrial automation applications worldwide. In stock and ready to ship from iptrading.com.au — order now for fast dispatch.

Features

- Unmanaged plug-and-play operation — no configuration or software required
- 8 PoE+ ports power IP cameras, access points, POS terminals, and other PoE devices from a single centralised switch
- 2 SFP fibre-optic ports extend network reach beyond the 100m copper Ethernet limit
- Full aluminium IP30-rated industrial enclosure withstands vibration, dust, and temperature extremes
- Wide operating temperature range (-40°C to +75°C) for mission-critical industrial deployments
- Integrated DIN rail bracket enables fast, tool-friendly panel mounting
- Supports wall and desktop mounting for flexible installation scenarios
- PROFINET certified for seamless integration into industrial automation networks
- IEEE 802.3af and 802.3at dual-standard PoE/PoE+ support
- Grounding screw for electrical safety in industrial environments
- Broad global certifications: CE, FCC, IC, RoHS, REACH, UKCA, CB, RCM, E-mark, and more

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 8 x RJ45 LAN Ports — 10/100/1000 Mbps, Auto MDI/MDIX, IEEE 802.3/802.3u/802.3az
- 2 x SFP Ports — fibre-optic communication
- PoE Standards: IEEE 802.3af (PoE) / IEEE 802.3at (PoE+)
- Max PoE Power per Port: 30W
- Total PoE Power Budget (PSE): 240W
- PoE Input Voltage: 44–57 VDC
- Total Input Voltage Range: 7–57 VDC
- Max Power Consumption (no PoE): 5.5W
- Non-Blocking Switching Bandwidth: 20 Gbps
- MAC Address Table: 2,000 entries
- Jumbo Frame Support: up to 9,216 bytes
- Operating Temperature: -40°C to +75°C
- Humidity: 10%–90% non-condensing
- IP Rating: IP30
- Housing: Full aluminium
- Mounting: DIN Rail (integrated bracket), Wall, Desktop
- Dimensions: 132 x 44.2 x 95.1 mm
- Weight: ~456 g
- Max Ethernet Cable Length: 100 m
- Certifications: CE, FCC, IC, RoHS, REACH, UKCA, CB, EAC, RCM, E-mark, PROFINET, and others
- PSU: Not included — sold separately

FAQs

Q: Does this SKU include a power supply unit?
A: No. The TSW2000000B0 is supplied without a PSU. A compatible power supply must be purchased separately. The switch accepts a wide input voltage range of 7–57 VDC, giving you flexibility to select an appropriate PSU for your application.

Q: How many devices can the TSW200 power via PoE?
A: The TSW200 has 8 PoE+ ports, each delivering up to 30W (IEEE 802.3at). The total PoE power budget is 240W, so it can simultaneously power multiple IP cameras, wireless access points, VoIP phones, or other PoE-compatible devices depending on their individual power draw.

Q: Is the TSW200 suitable for use in outdoor or harsh industrial environments?
A: Yes. The TSW200 features a full aluminium IP30-rated enclosure and operates across a wide temperature range of -40°C to +75°C, making it well suited for factory floors, transportation infrastructure, outdoor enclosures, and other demanding deployments where commercial switches would fail.

Q: What are the SFP ports used for?
A: The two SFP ports allow fibre-optic connections for extending the network beyond the 100m limitation of copper Ethernet cabling. This is useful for connecting to remote buildings, aggregation switches, or wherever long-distance links are required.

Q: Does the TSW200 require any configuration or software?
A: No. The TSW200 is a fully unmanaged switch — it operates in plug-and-play mode with no configuration, management interface, or software required. Simply connect your devices and power source and it is ready to use.

Q: Can I purchase the Teltonika TSW200 in Australia from IP Trading?
A: Yes. IP Trading stocks the Teltonika TSW200 (TSW2000000B0) in Australia and offers fast dispatch. You can order directly through iptrading.com.au with confidence in local availability and support.
