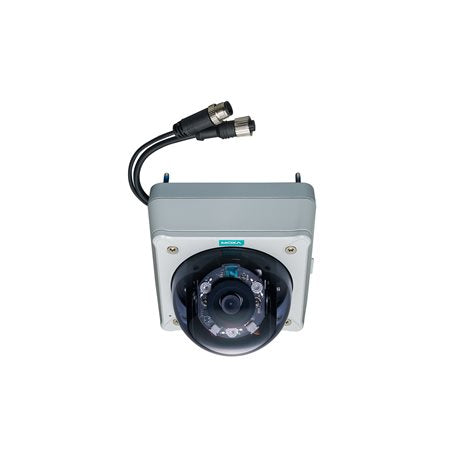

Moxa VPort P16-2MR36M/KC | VPort P16-2MR Indoor IP Dome Camera, 1080p, 3.6mm, KC, PoE

Authorised Moxa Partner

SKU:VPort P16-2MR36M/KC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The VPort P16-2MR36M/KC is a 1080p Full HD day and night fixed-dome IP camera with a 3.6 mm lens, IR illuminator and IEEE 802.3af PoE power. This KC-certified variant of the VPort P16-2MR Series pairs a 1/3-in progressive scan CMOS sensor with an IP66, IK8 vandal-resistant metal housing, making it suited to transport, industrial and public-space surveillance that needs reliable imaging in harsh conditions.

Power and data run over a single M12 D-coded 10/100BaseT(X) port, and the camera is ONVIF Profile S compliant for integration with third-party video management systems. It supports H.264 or MJPEG with four independent streams, a microSD (SDXC) slot for event recording, a digital input, a built-in microphone, and tampering and motion detection for event-driven alerts.

Features

- Auto, colour and B/W day and night modes with ICR control and IR illuminator
- DynaStream automatically adjusts the frame rate
- CBR Pro maintains image quality in limited bandwidth
- 3 privacy mask areas
- Camera tampering detection, 3-area video motion detection and built-in G sensor for shock detection
- Event recording to SD card with a 50 MB pre-alarm buffer for JPEG snapshots
- Email and FTP transfer of event images, plus HTTP event servers for custom alarms
- Salt spray tested (ASTM-B117)
- Vandal-resistant IP66 metal housing for harsh environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1080P (1920 x 1080) progressive scan CMOS, 1/3-in sensor
- 3.6 mm fixed lens, F1.6, 70° horizontal / 99° diagonal / 39° vertical
- Minimum illumination: colour 0.2 lux at F1.2, B/W 0.05 lux at F1.2, 0 lux with IR on
- IR illumination up to 5 m effective distance
- Video compression: H.264 or MJPEG, 4 independent streams
- Full HD 1920 x 1080 at 30 fps
- WDR 100 dB, built-in 2D/3D DNR
- Audio: built-in microphone, mono PCM (G.711) or AAC
- 1 x 10/100BaseT(X) PoE port, M12 D-coded 4-pin female
- Power: IEEE 802.3af PoE, 0.26 A at 48 VDC
- 1 x digital input, 5-pin A-coded M12 I/O connector with 20 cm cable
- microSD slot (SDXC)
- ONVIF Profile S
- Housing: IP66, metal housing, PC dome cover, IK8 vandal resistance (EN 62262)
- Operating temperature: -25 to 55°C
- Dimensions: 125 x 125 x 120.7 mm, weight 890 g
- Manual camera angle: pan 350°, tilt 65°

FAQs

Q: How is the VPort P16-2MR36M/KC powered?
A: It is powered over Ethernet using IEEE 802.3af PoE through its single M12 D-coded 10/100BaseT(X) port, drawing 0.26 A at 48 VDC.

Q: Is this camera compatible with third-party video management software?
A: Yes. It supports ONVIF Profile S, so it can be integrated with ONVIF-compliant video management systems and recorders.

Q: What lens does this model have?
A: It has a fixed 3.6 mm lens at F1.6, giving a 70° horizontal and 99° diagonal field of view.

Q: Can it record video or events locally?
A: Yes. It has a microSD (SDXC) slot for event recording, with a 50 MB pre-alarm buffer for JPEG snapshots.

Q: Does it work in low light or darkness?
A: Yes. It has an IR illuminator with an effective range of up to 5 m and operates at 0 lux when the IR is on.

Q: How rugged is the housing?
A: The metal housing is rated IP66 and IK8 vandal resistant, and the camera operates from -25 to 55°C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
