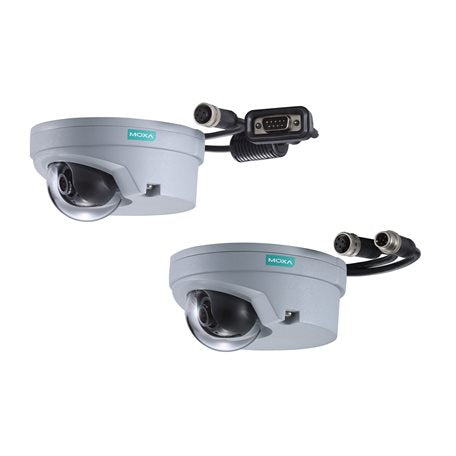

• Moxa VPort P06-2M36M-CT gray dome IP camera with M12 PoE connector
1 1

Moxa

Moxa VPort P06-2M36M-CT | VPort 06-2 1080p IP Dome Camera, 3.6mm, M12 PoE, -25 to 55C

Moxa VPort P06-2M36M-CT | VPort 06-2 1080p IP Dome Camera, 3.6mm, M12 PoE, -25 to 55C

Authorised Moxa Partner

VPort P06-2M36M-CT

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa VPort P06-2M36M-CT is a 1080p IP dome camera built for rolling stock and other rail environments, complying with part of EN 50155 and EN 45545-2 railway fire protection.

It pairs a 1/3-in progressive scan CMOS sensor and a fixed 3.6 mm lens with an M12 connector and PoE for single-cable power and data, and operates from -25 to 55\u00b0C.\n\nThe camera delivers Full HD 1920 x 1080 at up to 30 fps using H.264 or MJPEG, with four independent video streams, DynaStream and CBR Pro for bandwidth-limited links, and 100 dB WDR with 2D/3D DNR for demanding lighting. It includes a built-in microphone, a microSD (SDXC) slot for event recording, ONVIF Profile S support, and an IP66, IK8 vandal-resistant metal housing with a PC dome cover.

Features

- Complies with part of EN 50155 for rolling stock use
- M12 connector with PoE for single-cable power and data
- Built-in microphone for audio capture
- H.264/MJPEG with DynaStream and CBR Pro for bandwidth-limited links
- 100 dB WDR and 2D/3D DNR for improved image quality
- IP66, IK8 vandal-resistant metal housing with PC dome cover
- Event recording to SD card, motion detection, tampering detection and pre-alarm buffer
- ONVIF Profile S support for integration with compatible video management systems
- Optional PCB conformal coating available on request

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Sensor: 1/3-in 1080P progressive scan CMOS
- Resolution: 1920 x 1080 at up to 30 fps
- Video compression: H.264 or MJPEG, 4 independent streams
- Lens: 3.6 mm fixed
- Minimum illumination: Colour 0.2 lux at F1.2
- WDR: 100 dB, with 2D/3D DNR
- Camera angle: Pan \u00b115\u00b0, Tilt 0\u00b0 to 90\u00b0 (manual)
- Audio: built-in microphone, mono, PCM (G.711) and AAC
- Connector: M12, PoE powered
- Memory: microSD slot (SDXC)
- Digital input channels: 1
- Operating temperature: -25 to 55\u00b0C
- Storage temperature: -40 to 85\u00b0C
- Humidity: 5 to 95% (non-condensing)
- Ingress protection: IP66
- Vandal resistance: IK8 (EN 62262)
- Railway: EN 50155 (partial), EN 45545-2 fire protection
- Shock and vibration: IEC 61373, EN 50155
- Standards: ONVIF Profile S
- Dimensions: 110 x 115.5 x 61.8 mm
- Weight: 620 g
- Installation: panel mounting

FAQs

Q: Does this camera comply with EN 50155?
A: It complies with a portion of the EN 50155 specifications and also meets EN 45545-2 railway fire protection, making it suited to rolling stock installations.

Q: How is the camera powered?
A: It is powered over Ethernet through its M12 connector, so a single cable carries both power and data.

Q: What lens and resolution does it have?
A: It has a fixed 3.6 mm lens and records Full HD 1920 x 1080 at up to 30 fps using H.264 or MJPEG.

Q: Can it record locally?
A: Yes. It has a microSD (SDXC) slot for event recording, with motion detection, tampering detection and a pre-alarm buffer.

Q: Is it compatible with third-party video management software?
A: The camera supports ONVIF Profile S, which allows integration with compatible ONVIF-based video management systems.

Q: What is the operating temperature range?
A: This model operates from -25 to 55\u00b0C and is housed in an IP66, IK8 vandal-resistant metal enclosure.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
