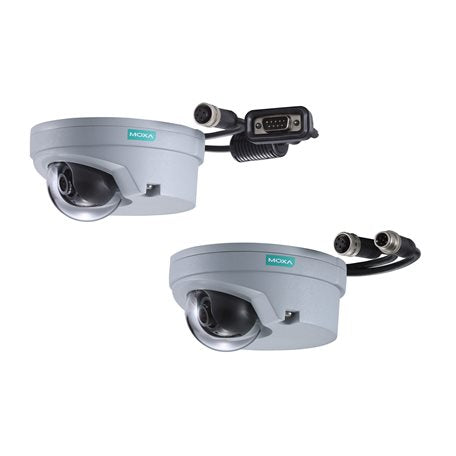

• Moxa VPort P06-2M28M-CT gray dome IP camera rear with M12 connectors
1 1

Moxa

Moxa VPort P06-2M28M-CT | VPort P06-2 1080p Dome IP Camera, 2.8mm, Mic, PoE

Moxa VPort P06-2M28M-CT | VPort P06-2 1080p Dome IP Camera, 2.8mm, Mic, PoE

Authorised Moxa Partner

VPort P06-2M28M-CT

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The VPort P06-2M28M-CT is a compact 1080p IP dome camera built for rolling-stock and mobile video surveillance. It delivers up to 1920 x 1080 at 30 fps from a 1/3-inch progressive scan CMOS sensor, with a 2.8 mm lens, a built-in microphone and PoE (IEEE 802.3af) power over a rugged M12 D-coded Ethernet port. The -CT variant covers -25 to 55°C operation with conformal coating.

The IP66 and IK8 rated metal housing complies with the mandatory sections of EN 50155 and also meets EN 45545-2 and IEC 61373 for railway fire protection, shock and vibration. Four independent H.264 or MJPEG streams, DynaStream, CBR Pro, DNR and WDR support efficient, high-quality capture, and ONVIF Profile S conformity aids integration with existing video management systems.

Features

- Up to 1920 x 1080 at 30 fps from a 1/3-inch progressive scan sensor
- High-quality imaging with DNR and WDR for challenging lighting
- Up to 4 simultaneous H.264 or MJPEG independent video streams
- DynaStream for optimised network efficiency
- CBR Pro maintains image quality in limited bandwidth
- SDXC local storage support for onboard recording
- Built-in microphone for audio capture
- Rugged M12 Ethernet port with PoE for simple single-cable installation
- IP66 and IK8 rated housing suited to rolling-stock use
- ONVIF Profile S conformity for interoperability

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1/3-in 1080p progressive scan CMOS sensor, up to 1920 x 1080 at 30 fps
- Lens: 2.8 mm, F2.0, 94° diagonal / 85° horizontal / 45° vertical
- 1 x 10/100BaseT(X) PoE port, M12 D-coded 4-pin female
- Power: PoE (IEEE 802.3af), 0.17 A @ 48 VDC
- Built-in microphone, mono, G.711 PCM or AAC audio
- 4 independent H.264 or MJPEG video streams
- microSD slot, SDXC supported
- 1 digital input channel, 5-pin A-coded M12 I/O connector
- WDR 100 dB, 2D/3D DNR, minimum illumination 0.2 lux colour at F1.2
- Operating temperature: -25 to 55°C, PCB conformal coating (-CT)
- Housing: IP66, IK8, metal housing with PC dome cover
- Standards: EN 50155 (partial), EN 45545-2, IEC 61373, ONVIF Profile S
- Dimensions: 110 x 115.5 x 61.8 mm, weight 620 g
- MTBF: 1,050,590 hrs (Telcordia SR332)

FAQs

Q: How is the VPort P06-2M28M-CT powered?
A: It is powered over Ethernet using IEEE 802.3af through the M12 D-coded 10/100BaseT(X) port, drawing 0.17 A at 48 VDC.

Q: Does this camera include a microphone?
A: Yes. It has a built-in microphone supporting mono audio in G.711 PCM or AAC formats.

Q: What is the difference between the -CT model and the standard P06-2M28M?
A: The -CT model has conformal-coated PCBs for added protection and is specified for -25 to 55°C operation, suited to harsh rolling-stock environments.

Q: Is it suitable for railway installations?
A: Yes. It complies with the mandatory sections of EN 50155 and also meets EN 45545-2 fire protection and IEC 61373 shock and vibration standards.

Q: Can it record locally?
A: Yes. It has a microSD slot supporting SDXC cards, plus a pre-alarm buffer of 50 MB.

Q: Will it work with third-party video management software?
A: It conforms to ONVIF Profile S and supports RTSP streaming, which helps integration with compatible VMS platforms.
