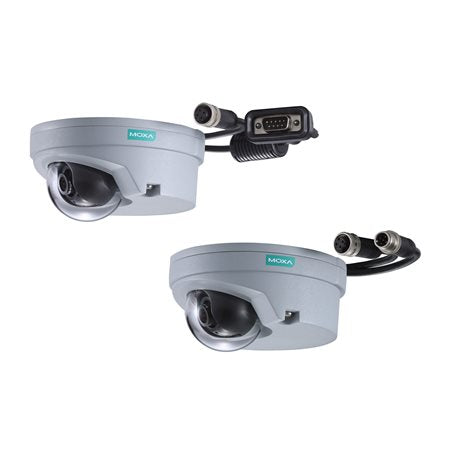

• Moxa VPort P06-2M42M-CT-T gray dome IP camera rear view with M12 connectors
1 1

Moxa

Moxa VPort P06-2M42M-CT-T | VPort P06-2 1080p Dome IP Camera, 4.2mm, Mic, M12, -40 to 70C, PoE

Moxa VPort P06-2M42M-CT-T | VPort P06-2 1080p Dome IP Camera, 4.2mm, Mic, M12, -40 to 70C, PoE

Authorised Moxa Partner

VPort P06-2M42M-CT-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa VPort P06-2M42M-CT-T is a compact, rugged 1080p dome IP camera built for mobile and rail video surveillance. It pairs a 1/3-inch progressive scan CMOS sensor with a 4.2 mm lens (82° diagonal field of view), a built-in microphone, and a single M12 D-coded 10/100BaseT(X) port with IEEE 802.3af PoE. The CT variant adds PCB conformal coating and a -40 to 70°C operating range, suiting vehicles and trackside installations exposed to vibration, moisture and temperature extremes.

The camera supports H.264 and MJPEG with up to four independent streams at 1920 x 1080 and 30 fps, plus DNR, 100 dB WDR and ONVIF Profile S conformity for integration with third-party video management systems. An IP66, IK8 vandal-resistant metal housing, EN 45545-2 fire protection and partial EN 50155 compliance make it a practical fit for transport surveillance, while a microSD (SDXC) slot allows local recording.

Features

- Full HD 1920 x 1080 video at up to 30 fps
- DNR and 100 dB WDR for high quality imaging in difficult lighting
- Up to four simultaneous H.264 or MJPEG video streams
- DynaStream for optimised network efficiency
- CBR Pro for high image quality in limited bandwidth transmissions
- SDXC support for local storage up to 1 TB
- Built-in microphone for audio capture
- ONVIF Profile S conformity for interoperability
- Rugged M12 Ethernet port with PoE power
- IP66 and IK8 housing for mobile and rail surveillance
- PCB conformal coating for harsher environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1/3-inch 1080p progressive scan CMOS sensor, 1920 x 1080 at up to 30 fps
- 4.2 mm lens, F1.6, 82° diagonal, 62° horizontal, 34° vertical field of view
- H.264 / MJPEG compression with up to 4 independent video streams
- 1 x M12 D-coded 10/100BaseT(X) port with IEEE 802.3af PoE
- Built-in microphone, mono audio (PCM G.711, AAC)
- microSD slot, SDXC supported (up to 1 TB)
- 1 digital input channel via 5-pin male M12 I/O connector
- Minimum illumination 0.2 lux colour at F1.2
- WDR 100 dB, built-in 2D/3D DNR
- Operating temperature -40 to 70°C, humidity 5 to 95% non-condensing
- IP66 rated, IK8 vandal resistant metal housing with PC dome cover
- Dimensions 110 x 115.5 x 61.8 mm, weight 620 g, panel mounting
- Input current 0.17 A at 48 VDC via PoE
- EN 50155 (partial), EN 45545-2, IEC 61373 shock and vibration
- MTBF 1,050,590 hours (Telcordia SR332)

FAQs

Q: What does the CT suffix mean on this VPort camera?
A: CT denotes the PCB conformal-coated variant of the P06-2M42M-T, adding protection against moisture and contaminants. The -T indicates the -40 to 70°C wide operating temperature range.

Q: How is the camera powered?
A: It is powered over Ethernet using IEEE 802.3af PoE through the single M12 D-coded 10/100BaseT(X) port, drawing about 0.17 A at 48 VDC.

Q: Does it support audio?
A: Yes. It has a built-in microphone for mono audio input, supporting PCM (G.711) and AAC formats.

Q: Is it compatible with third-party video management software?
A: The camera conforms to ONVIF Profile S, which allows integration with compatible VMS and recording platforms.

Q: Can it record locally?
A: Yes. The microSD slot supports SDXC cards up to 1 TB for onboard storage.

Q: Is it suitable for rail installations?
A: It complies with a portion of EN 50155 and with EN 45545-2 fire protection, and is tested to IEC 61373 for shock and vibration, making it suited to rolling stock and trackside use.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
