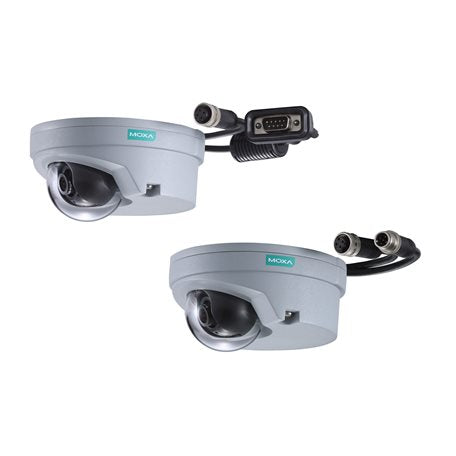

Moxa VPort P06-2M28M-CT-T | VPort P06-2 Dome IP Camera, 1080p, 2.8mm, Mic, -40 to 70C, PoE

Moxa VPort P06-2M28M-CT-T | VPort P06-2 Dome IP Camera, 1080p, 2.8mm, Mic, -40 to 70C, PoE

Authorised Moxa Partner

VPort P06-2M28M-CT-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa VPort P06-2M28M-CT-T is a compact 1080p dome IP camera built for rail and mobile video surveillance. It combines a 2.8 mm lens, a built-in microphone and an M12 PoE Ethernet port, with a conformally coated, wide-temperature design rated for -40 to 70°C operation.

The 1/3-inch progressive scan CMOS sensor delivers Full HD 1920 x 1080 at up to 30 fps, with H.264 or MJPEG compression and up to four independent video streams. The IP66 metal housing, IK8 vandal-resistant dome cover, EN 50155 (portion) and EN 45545-2 compliance suit rolling stock and harsh on-vehicle environments, while ONVIF Profile S support simplifies integration with third-party video management systems.

Features

- Full HD 1080p video at 30 fps from a 1/3-inch progressive scan sensor
- Up to 4 simultaneous independent H.264 or MJPEG streams
- DynaStream for automatic frame-rate optimisation
- CBR Pro for good image quality in limited bandwidth
- DNR and WDR for clear imaging in demanding lighting
- Built-in microphone for audio capture
- Rugged M12 Ethernet port with PoE, no separate power cable needed
- Local storage via SDXC microSD slot
- ONVIF conformity for interoperability with third-party systems
- IP66 and IK8 rated for rolling stock and mobile surveillance
- Camera tampering detection, motion detection in 3 areas and 3 privacy masks

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1/3-inch 1080p progressive scan CMOS sensor, 1920 x 1080 at up to 30 fps
- 2.8 mm lens (f=2.8 mm, F2.0), 94° diagonal, 85° horizontal, 45° vertical
- 1 x 10/100BaseT(X) PoE port, M12 D-coded 4-pin female (IEEE 802.3af)
- Input current 0.17 A at 48 VDC
- H.264 or MJPEG compression, up to 4 independent video streams
- 1 x built-in microphone, mono audio with PCM (G.711) and AAC
- SDXC microSD slot
- 1 digital input, 5-pin male M12 connector with 20 cm cable
- Minimum illumination 0.2 lux colour at F1.2, WDR 100 dB, built-in 2D/3D DNR
- Operating temperature -40 to 70°C, storage -40 to 85°C
- IP66 metal housing, PC dome cover, IK8 vandal resistant
- EN 50155 (portion), EN 45545-2, UL 62368-1
- ONVIF Profile S
- Dimensions 110 x 115.5 x 61.8 mm, weight 620 g
- Panel mounting
- MTBF 1,050,590 hours (Telcordia SR332)

FAQs

Q: What does the CT-T suffix mean on this VPort camera?
A: The CT-T version is the conformally coated, wide-temperature variant of the VPort P06-2M28M-T, rated for operation from -40 to 70°C.

Q: How is the VPort P06-2M28M-CT-T powered?
A: It is powered over Ethernet through its M12 D-coded PoE port using IEEE 802.3af, drawing about 0.17 A at 48 VDC.

Q: Does this camera support audio?
A: Yes. It has a built-in microphone and supports mono audio with PCM (G.711) and AAC formats.

Q: Is this camera suitable for rail applications?
A: Yes. It complies with a portion of EN 50155 and with EN 45545-2 railway fire protection, and has IP66 and IK8 ratings for on-vehicle use.

Q: Will it work with third-party video management software?
A: It supports ONVIF Profile S and standard protocols such as RTSP, so it can integrate with compatible video management systems.

Q: Can it record video locally?
A: Yes. The SDXC microSD slot allows on-camera storage, and the camera can also stream to a recorder or VMS.
