• Moxa VPort P06-2M60M-CT-T gray dome IP camera with M12 connectors
1 1

Moxa

Moxa VPort P06-2M60M-CT-T | VPort P06 Rugged 1080p IP Camera, 6.0mm, Mic, -40 to 70C

Moxa VPort P06-2M60M-CT-T | VPort P06 Rugged 1080p IP Camera, 6.0mm, Mic, -40 to 70C

Authorised Moxa Partner

VPort P06-2M60M-CT-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

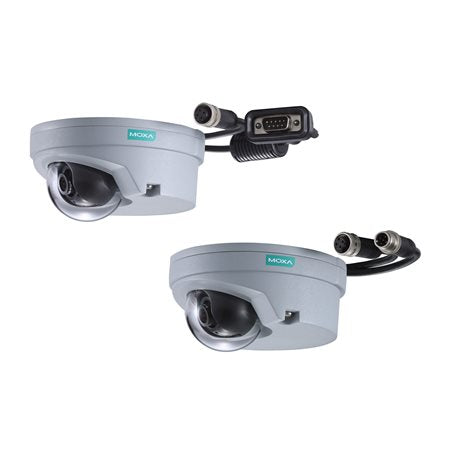

The Moxa VPort P06-2M60M-CT-T is a compact, rugged 1080p dome IP camera built for mobile and rail surveillance. It pairs a 1/3-inch progressive scan CMOS sensor with a 6.0 mm F1.8 lens (62 degree diagonal field of view), a built-in microphone and an M12 D-coded PoE port. The -CT-T variant adds PCB conformal coating and a -40 to 70°C operating range for harsh, vibration-prone environments.

The IP66 and IK8 vandal-resistant metal housing and EN 50155 oriented design suit trains, buses and other transport deployments. It delivers up to four independent H.264 or MJPEG streams at 1920 x 1080 and 30 fps, supports ONVIF Profile S, and includes 100 dB WDR, 2D/3D noise reduction, a digital input and microSD storage for on-board recording.

Features

- EN 50155 rail-oriented design with M12 connectors for vibration-resistant cabling
- IP66 and IK8 vandal-resistant metal housing with PC dome cover
- PCB conformal coating and -40 to 70°C operating range for harsh environments
- Powered over Ethernet (IEEE 802.3af) for single-cable installation
- Four independent H.264/MJPEG streams at Full HD 30 fps
- DynaStream and CBR Pro for bandwidth-limited networks
- Built-in microphone and one digital input for event-driven recording
- Camera tampering detection and three configurable motion detection areas
- ONVIF Profile S support for VMS integration
- HTTPS, SSH, IP address filtering and user-level password protection

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Resolution: 1080p (1920 x 1080) at up to 30 fps
- Sensor: 1/3-in progressive scan CMOS
- Lens: 6.0 mm, F1.8, 62 degree diagonal, 43 degree horizontal, 24 degree vertical FOV
- Video compression: H.264 or MJPEG, 4 independent streams
- Audio: built-in microphone, PCM (G.711) and AAC, mono
- Network: 1 x 10/100BaseT(X) M12 D-coded 4-pin PoE port
- Power: PoE (IEEE 802.3af), 0.17 A at 48 VDC
- I/O: 1 digital input via 5-pin A-coded M12 connector with 20 cm cable
- Storage: microSD slot (SDXC)
- WDR: 100 dB, built-in 2D/3D DNR
- Minimum illumination: colour 0.2 lux at F1.2
- Housing: metal, PC dome cover, IP66, IK8
- Standards: EN 50155 (partial), EN 45545-2 fire protection, IEC 61373, EN 62262, UL 62368-1
- Operating temperature: -40 to 70°C, PCB conformal coating
- Dimensions: 110 x 115.5 x 61.8 mm, weight 620 g
- Mounting: panel mounting, manual pan +/-15 degrees, tilt 0 to 90 degrees
- MTBF: 1,050,590 hours (Telcordia SR332)

FAQs

Q: What does the -CT-T suffix mean on this camera?
A: The -CT-T variant has PCB conformal coating and an extended -40 to 70°C operating temperature range, suited to harsh environments such as rail and mobile installations.

Q: How is the VPort P06-2M60M-CT-T powered?
A: It is powered over Ethernet using IEEE 802.3af through its single M12 D-coded 10/100BaseT(X) port, drawing 0.17 A at 48 VDC.

Q: Does this camera record audio?
A: Yes. It has a built-in microphone and supports PCM (G.711) and AAC mono audio formats.

Q: Is it compatible with third-party video management software?
A: Yes. It supports ONVIF Profile S and standard streaming protocols including RTP/RTSP, so it can be integrated with ONVIF-compliant VMS platforms.

Q: Can it store footage locally?
A: It has a microSD (SDXC) slot and a 50 MB pre-alarm buffer, allowing on-board recording around detected events.

Q: Is it suitable for rail and transport use?
A: It is designed for mobile and rail surveillance, with M12 connectors, partial EN 50155 compliance, IEC 61373 shock and vibration testing, and EN 45545-2 fire protection.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
