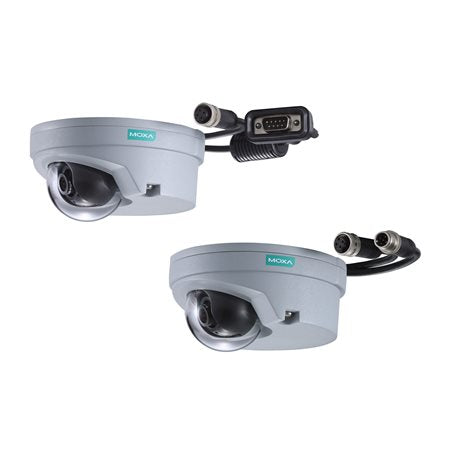

Moxa VPort P06-2M80M-CT-T | VPort P06 1080p Dome IP Camera, 8.0 mm, Mic, M12 PoE

Authorised Moxa Partner

SKU:VPort P06-2M80M-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa VPort P06-2M80M-CT-T is a compact 1080p dome IP camera built for mobile and rail video surveillance. It combines an 8.0 mm lens, a built-in microphone, an M12 PoE connection and PCB conformal coating, with an operating range of -40 to 70°C for demanding onboard and trackside installations.

The camera captures Full HD 1920 x 1080 at up to 30 fps on a 1/3-inch progressive scan CMOS sensor and streams H.264 or MJPEG, with up to four independent streams. An IP66, IK8 vandal-resistant housing and EN 45545-2 railway fire protection suit vehicle and transport deployments, while ONVIF Profile S conformity simplifies integration with compatible video management systems.

Features

- 1/3-inch progressive scan sensor with up to 1920 x 1080 at 30 fps
- DNR and WDR for high-quality imaging
- Up to 4 simultaneous H.264 or MJPEG video streams
- DynaStream for network efficiency
- CBR Pro for good image quality in limited bandwidth
- SDXC local storage up to 2 TB
- Built-in microphone
- ONVIF Profile S conformity
- Built-in G-sensor shock detection, tampering detection and motion detection
- Rugged M12 Ethernet with PoE
- IP66 and IK8 vandal-resistant housing
- PCB conformal coating for harsh environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1080p (1920 x 1080) at up to 30 fps, 1/3-in progressive scan CMOS
- 8.0 mm lens, F1.6, 33° horizontal, 17° vertical, 42° diagonal
- H.264 / MJPEG with up to 4 independent video streams
- 1 x 10/100BaseT(X) PoE port, M12 D-coded 4-pin female, IEEE 802.3af
- Built-in mono microphone, PCM G.711 / AAC
- SDXC microSD slot, up to 2 TB
- 1 digital input channel via 5-pin M12 connector
- Minimum illumination 0.2 lux colour at F1.2, 100 dB WDR, 2D/3D DNR
- Operating temperature -40 to 70°C, PCB conformal coating
- IP66 metal housing with PC dome cover, IK8 vandal resistant
- EN 50155 (partial), EN 45545-2, IEC 61373, EN 62262 IK8, IEC 60529 IP66
- Dimensions 110 x 115.5 x 61.8 mm, weight 620 g

FAQs

Q: How is the VPort P06-2M80M-CT-T powered?
A: It is powered over Ethernet through its M12 D-coded PoE port (IEEE 802.3af), drawing about 0.17 A at 48 VDC, so no separate power supply is needed.

Q: What does the CT suffix mean?
A: The CT designation indicates PCB conformal coating, which protects the electronics in humid, dusty or corrosive environments typical of rail and mobile installations.

Q: What operating temperature range does it support?
A: This wide-temperature model operates from -40 to 70°C.

Q: Does the camera record audio and store video locally?
A: Yes. It has a built-in microphone supporting PCM G.711 and AAC, and a microSD slot that accepts SDXC cards up to 2 TB.

Q: Is it compatible with third-party video management systems?
A: The camera conforms to ONVIF Profile S and supports RTSP streaming, so it works with ONVIF-compatible video management software and recorders.

Q: What is the lens field of view?
A: The 8.0 mm F1.6 lens provides a 33° horizontal, 17° vertical and 42° diagonal field of view.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
